Coaxial Male SMA RF Connector Straight For SUV-50-3-5 Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-J301

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : Cable connector

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

High light : SMA Male RF Coaxial Connector for SuV-50-3-5 Cable

Contact Now

SMA Male RF Coaxial Connector For SUV-50-3-5 Cable

Product introduction

SMA series connector is a kind of coaxial connector with small threaded connection, which has the advantages of small size, wide frequency bandwidth, superior mechanical and electrical performance, high reliability, etc., and is widely used in microwave communications, aerospace and navigation, weapon systems and microwave measurement equipment and other fields.
Applications: network, telecommunications, wireless communications, etc.
Product features: Matching SUV-50-3-5 RF coaxial cable, with high reliability, small size, excellent performance, easy welding characteristics.

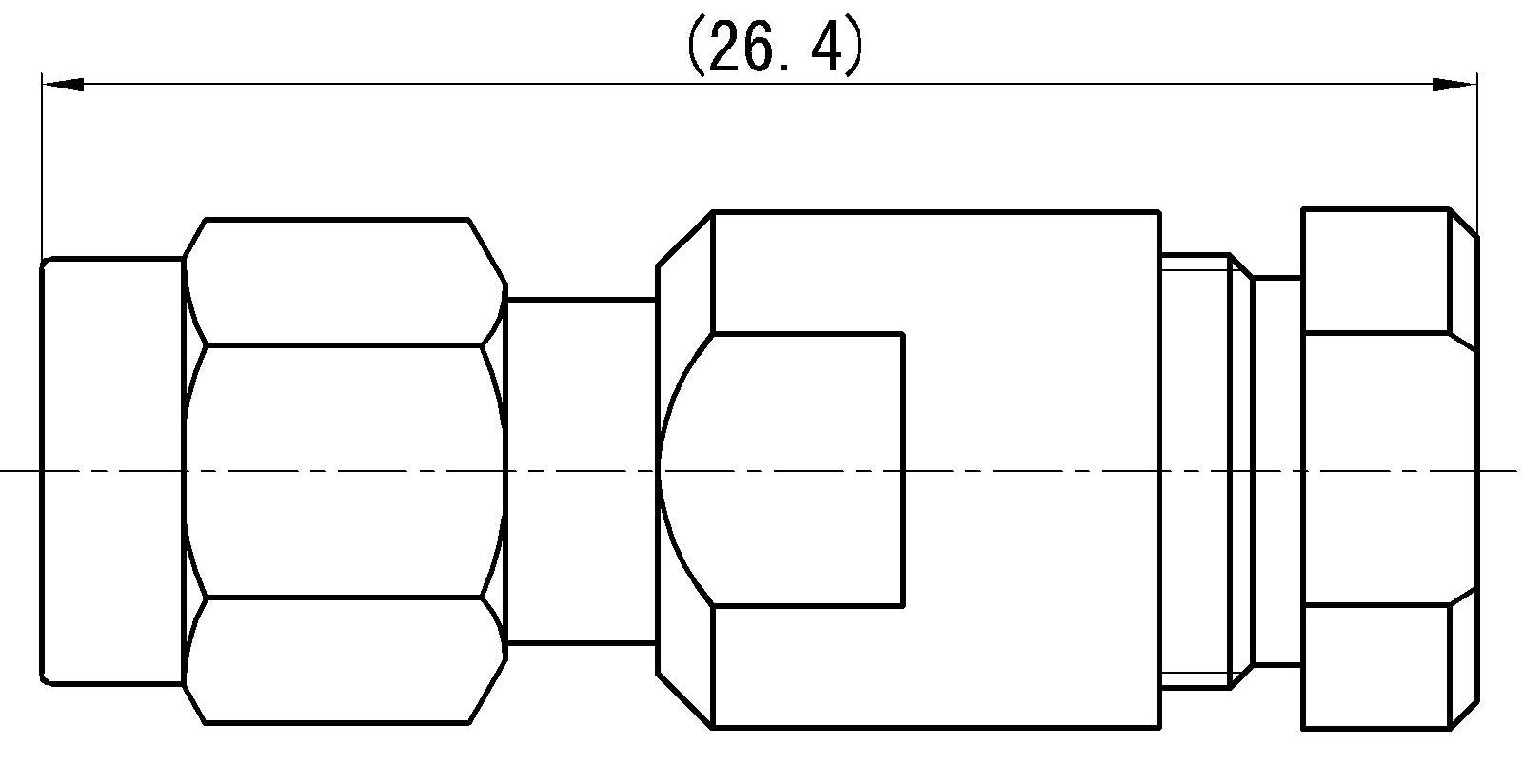

Product appearance

Coaxial Male SMA RF Connector Straight For SUV-50-3-5 Cable

Important technical parameter

Electrical property

Temperature range

-65～+125℃

Characteristic impedance

50Ω

Frequency range

DC-12.4GHz

Dielectric withstanding voltage

1000V

VSWR

≤1.05+0.012F(GHz)

Insulation resistance

≥5000MΩ

Insertion loss

≤0.08√F(GHz)dB

Contact resistance

Center conductor

≤3.0mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500times

Materials and surface treatment

Center conductor

Brass,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

Sealing ring

Silicon rubber

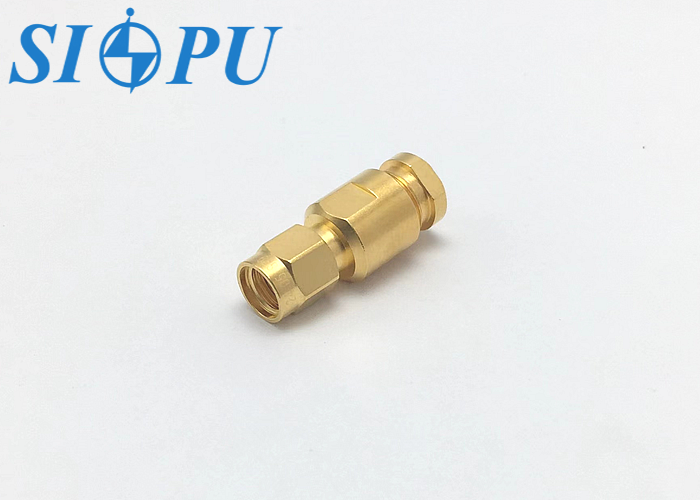

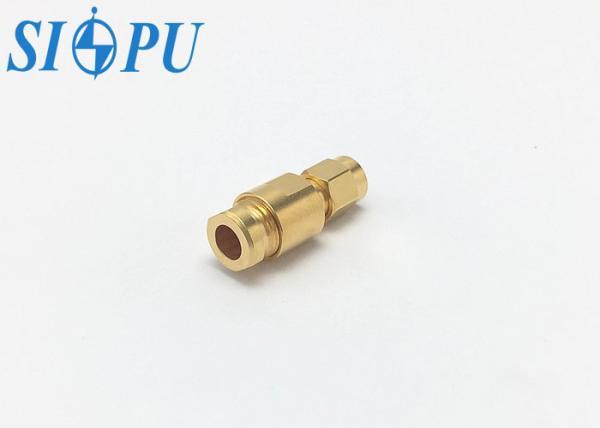

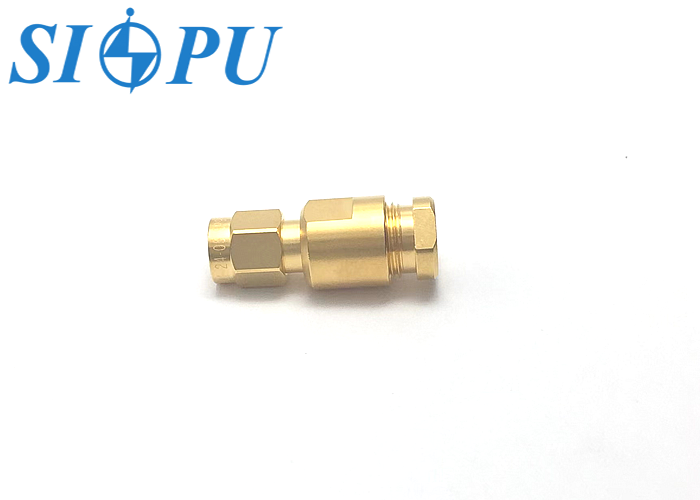

Picture display

Coaxial Male SMA RF Connector Straight For SUV-50-3-5 CableCoaxial Male SMA RF Connector Straight For SUV-50-3-5 Cable
