SMA Female Microstrip Stainless Steel RF Microwave Connector Flange Installation

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-JFD133G

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : Four hole flange connector

Gender : Male

Type : Straight

Material Science : Stainless steel

Plating : Passivation

Durability : 500 times

Higt light : Four-hole flange mounting structure, both ends can be plugged with SMA, 2.92 series plugs

Contact Now

SMA Female Microstrip Flange Installation Stainless Steel RF Microwave Connector

Product introduction

SMA RF coaxial adapter is a guarantee for the correct transmission of connectors of the same series and different series, generally serving as a bridge.
Scope of application: It is usually used for system connection and conversion, and is commonly used for testing cables and testing instruments.
Product features: Four hole flange installation structure, 0.2 slot at the end of the inner conductor, SMA and 2.92 series plugs can be inserted at both ends, with excellent electrical performance, strong environmental resistance, and high connection reliability.

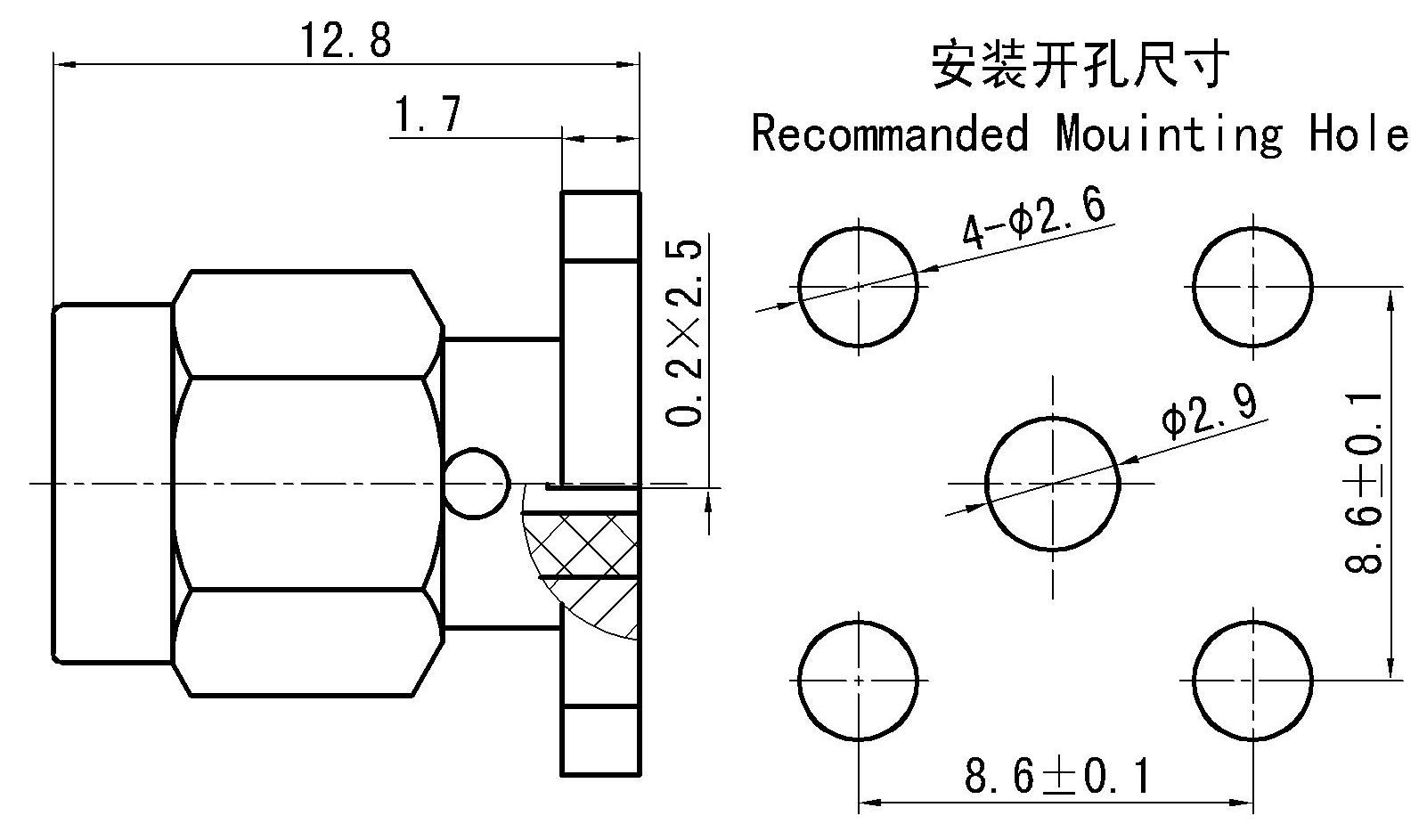

Product appearance

SMA Female Microstrip Stainless Steel RF Microwave Connector Flange Installation

Important technical parameter

Electrical property

Temperature range

-65～+125℃

Characteristic impedance

50Ω

Frequency range

DC-18GHz

Dielectric withstanding voltage

1000V

VSWR

≤1.05+0.012F(GHz)

Insulation resistance

≥5000MΩ

Insertion loss

≤0.05√F(GHZ)dB

Contact resistance

Center conductor

≤3.0mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500times

Materials and surface treatment

Center conductor

Brass,gold plating

Insulating medium

PTFE

Outer conductor

Stainless steel,passivating

Sealing ring

Silicon rubber

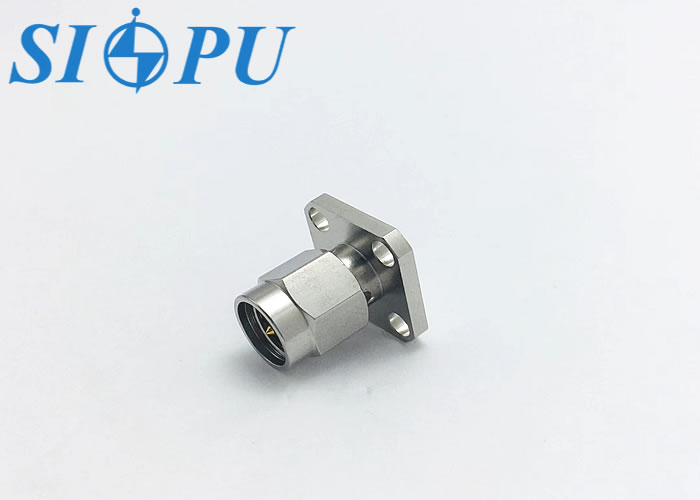

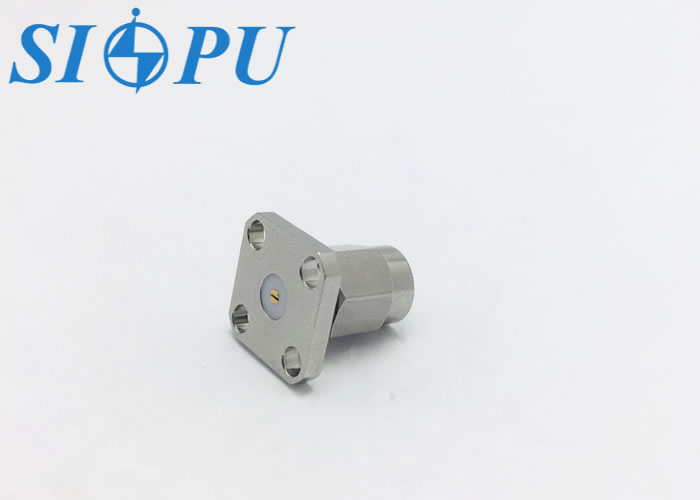

Picture display

SMA Female Microstrip Stainless Steel RF Microwave Connector Flange InstallationSMA Female Microstrip Stainless Steel RF Microwave Connector Flange Installation
