Double Headed SMA Female Adapter Straight Through Flange Installation

Brand Name : SIPU

Model Number : SMA-KFKG

Certification : ISO9001-2017 RoHS

Place of Origin : China

MOQ : 100

Price : Discuss

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs/yesr

Delivery Time : 6-8Weeks

Packaging Details : Carton

Product name : SMA-K to SMA-K straight through four hole flange adapter

Gender : Female

Type : Straight

Material : Stainless steel

Plating : Passivation

Durability : 500 times

High light : Four hole flange microstrip welded RF connector

Contact Now

SMA Double Headed Female Straight Through Flange Installation Adapter

Product introduction

RF coaxial adapter is a guarantee for correctly connecting connectors within the same series and different series, generally serving as a bridge connection.
Application scope: It is commonly used for system connection and conversion, and is commonly used in testing cables and testing instruments.
Product features: Four hole flange installation structure, both ends can be plugged into SMA and 2.92 series plugs, with excellent electrical performance, strong environmental resistance, and high connection reliability.

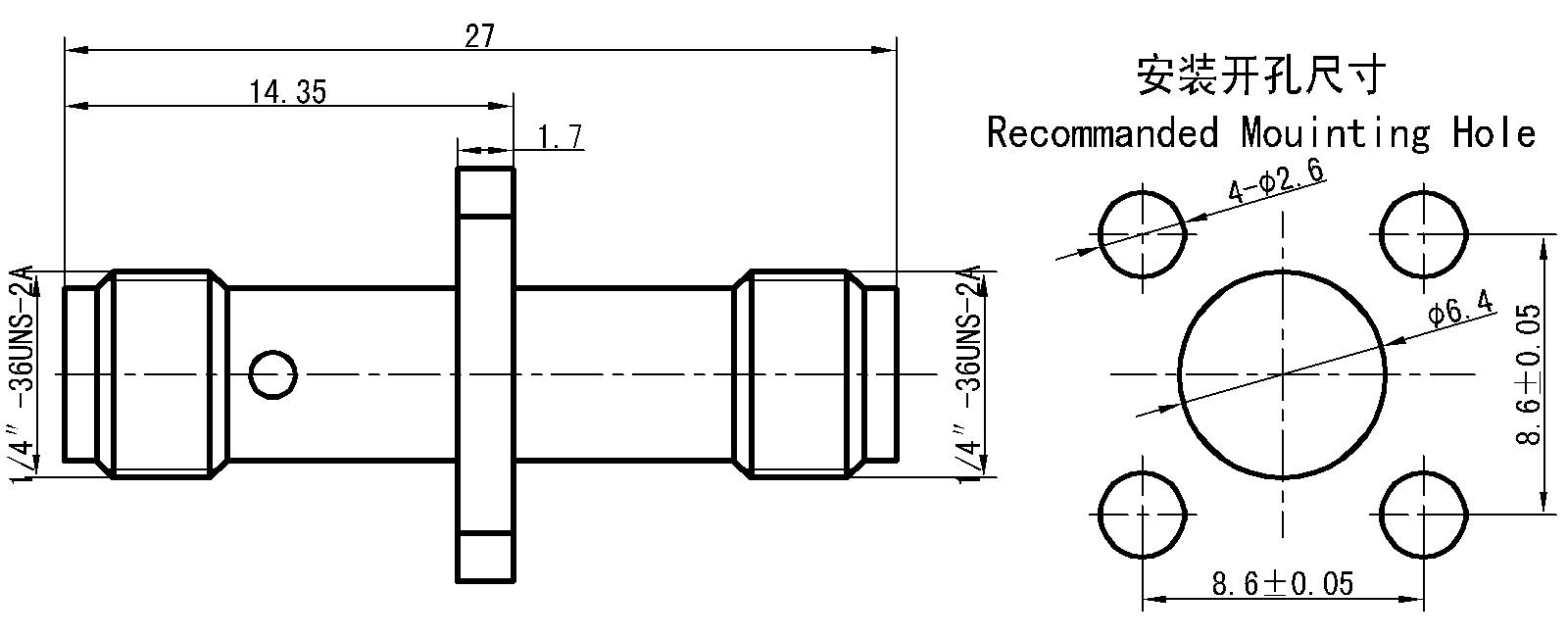

Product appearance

Double Headed SMA Female Adapter Straight Through Flange Installation

Important technical parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium

PTFE

Outer conductor

 Stainless steel,passivating / /

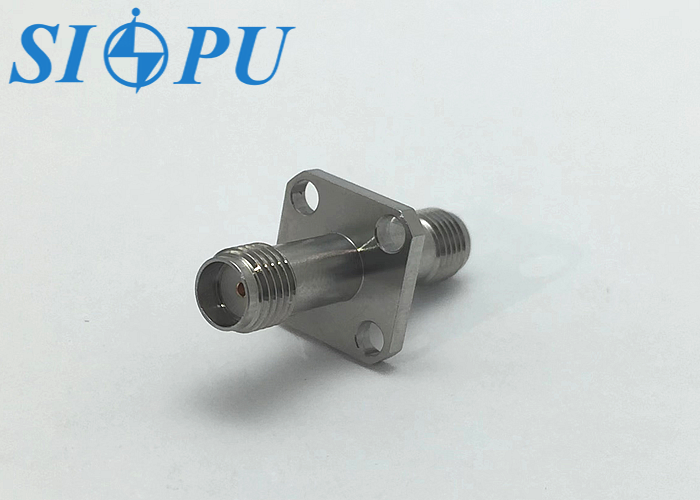

Picture display

Double Headed SMA Female Adapter Straight Through Flange InstallationDouble Headed SMA Female Adapter Straight Through Flange Installation
