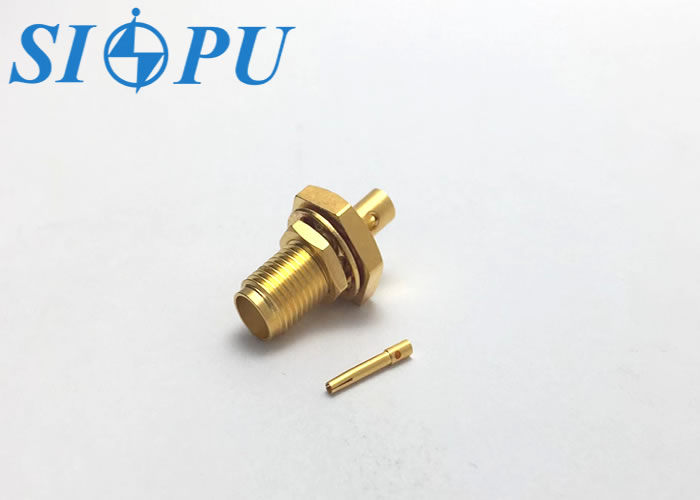

Female Thread Mount SMA RF Coaxial Connectors Mating Cable Connector CXN3506

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-KY3506

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Produce name : CXN3506 cable connect

Gender : Female

Type : Straight

Meterial : Brass

Plating : Gold

Durability : 500 times

High light : Low-loss phase-stabilized High frequency

Contact Now

SMA Female Thread Mount RF Coaxial Connectors Mating Cable Connector CXN3506

Product introduction

SMA series connector is a widely used, small threaded connection of coaxial connector, small size, environmental resistance, excellent electrical performance. Suitable for digital communication systems, microwave equipment, etc.
Applications: wireless communication, telecommunication communication, test equipment, network, etc.
Product features: Matching CXN3506 cable, installed by nut, has the characteristics of frequency bandwidth, excellent performance, high reliability and long life.

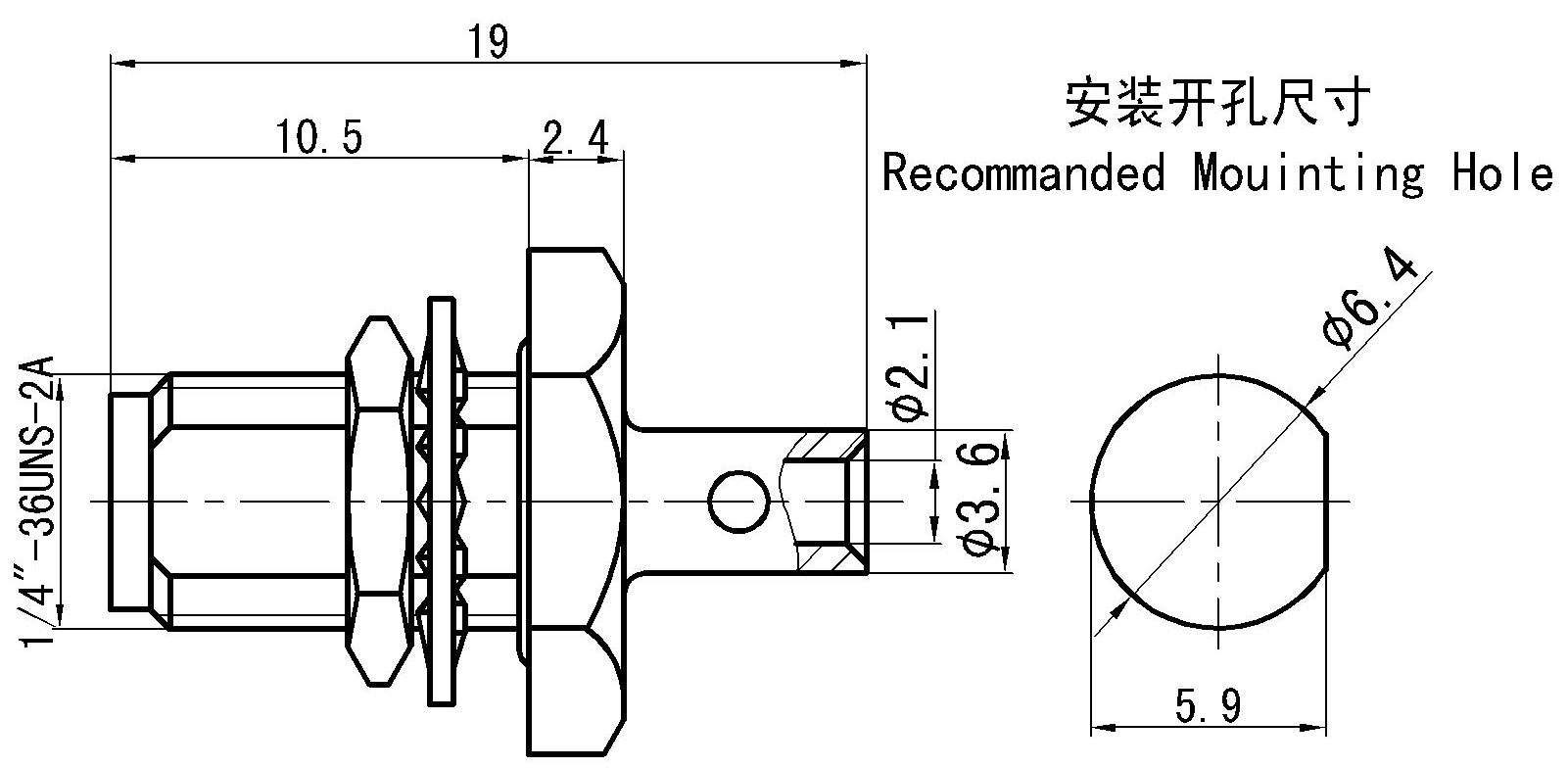

Product appearance

Female Thread Mount SMA RF Coaxial Connectors Mating Cable Connector CXN3506

Important technical parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

Brass,gold plating

 Sealing ring Silicon rubber

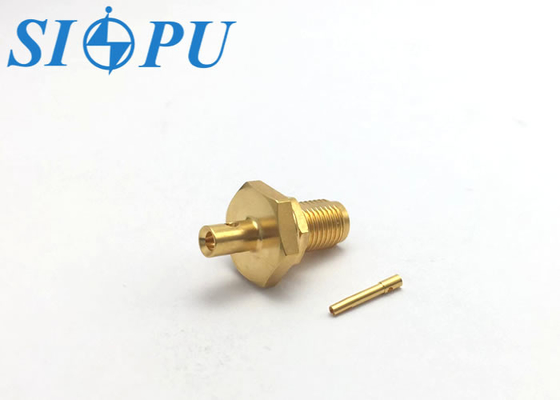

Picture display

Female Thread Mount SMA RF Coaxial Connectors Mating Cable Connector CXN3506Female Thread Mount SMA RF Coaxial Connectors Mating Cable Connector CXN3506
