SMA Female Angled RF Coaxial Connectors Mate CXN3506 Cables

  • 1
  • 2

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-KW3506-1-T

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Characteristic impedance : Right angle cable connector

Gender : Female

Type : Right angle

Material : Brass

Plating : Gold

Durability : 500 times

High light : mated CXN3506 RF coaxial cable,Right angle,strong interchangeability

Contact Now

SMA Female Angled RF Coaxial Connectors Mate CXN3506 Cables

Product introduction

The SMA series connector is a connector with a small threaded connection with superior bandwidth, mechanical and electrical properties, suitable for connecting cables or microstrip lines in RF circuits of microwave devices and digital communication systems.
Applications: wireless communication, network, telecommunication communication, radar, etc.
Product features: bent, mated CXN3506 RF coaxial cable, with high reliability, strong interchangeability, excellent electrical performance, easy to weld.

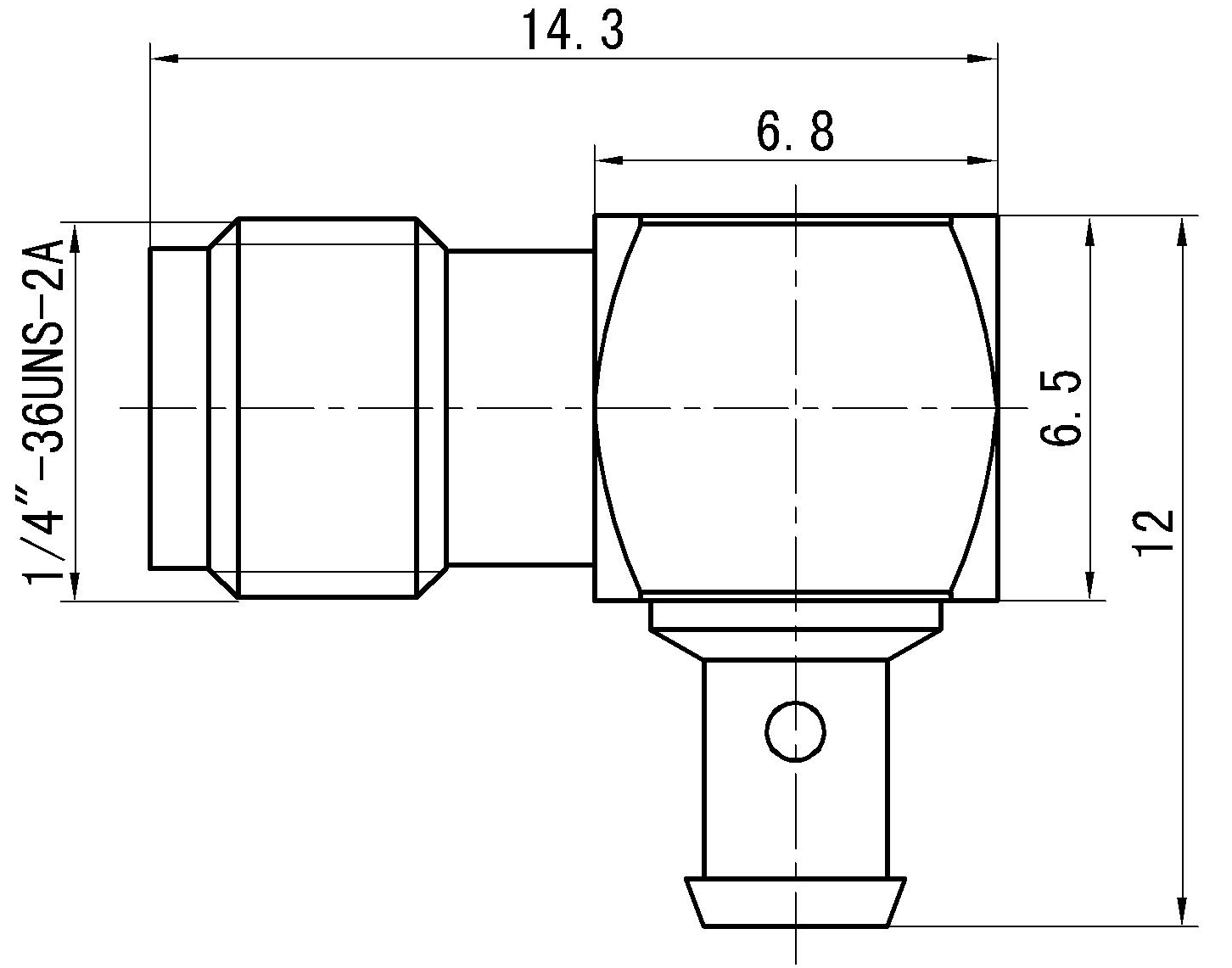

Product appearance

SMA Female Angled RF Coaxial Connectors Mate CXN3506 Cables

Important technical parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-12.4GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.06+0.015F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.08√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium

PTFE

Outer conductor

 Brass,gold plating / /

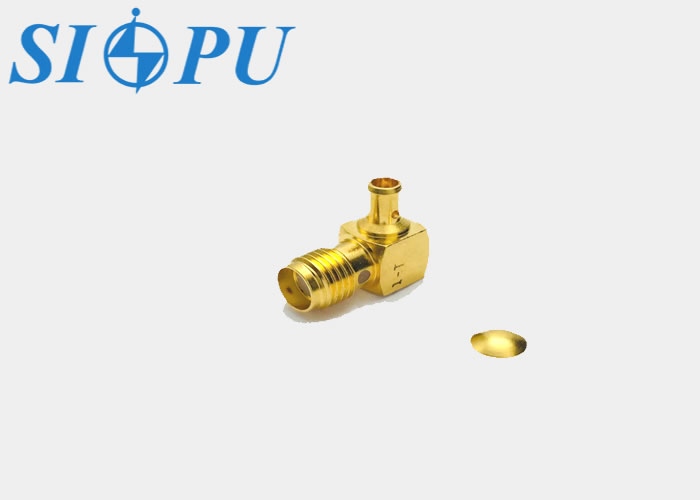

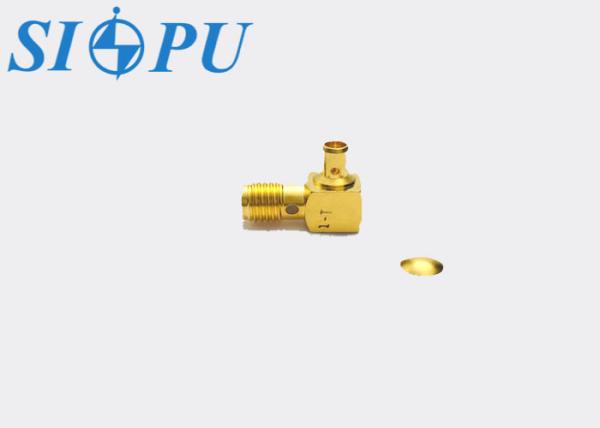

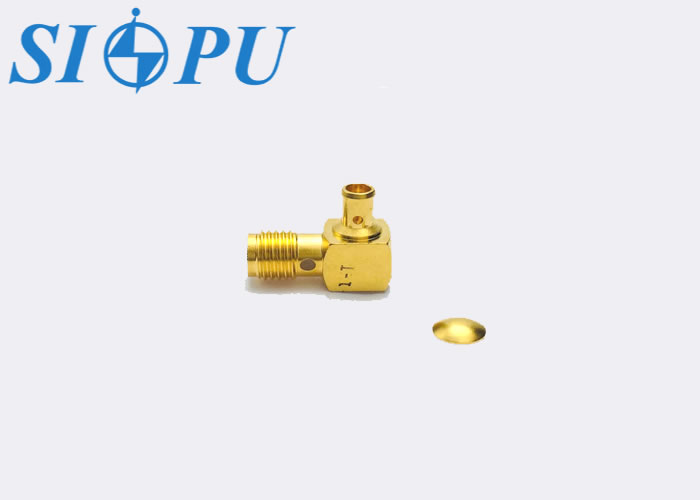

Picture display

SMA Female Angled RF Coaxial Connectors Mate CXN3506 CablesSMA Female Angled RF Coaxial Connectors Mate CXN3506 Cables
