SMA Female RF Coaxial Connectors for 3# Semi-Rigid/Semi Flexible Cables Flange Mounted Receptacles

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-KFB3-3

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 4-6Weeks

Supply Ability : 100000pcs/yesr

Product name : Two hole flange connector

Gender : Female

Type : Straight

Material Science : Brass

Plating : Gold

Durability : 500 times

High light : Two-hole flange installation, mated with 3# semi-flexible/semi-rigid RF coaxial cable

Contact Now

SMA Female RF Coaxial Connectors Mate With 3# Semi-Rigid/Semi-Flexible Cables Flange Mounted Receptacles

Product introduction

SMA RF coaxial connector has the advantages of small size, wide frequency bandwidth, superior mechanical and electrical performance, and high reliability, and is the most widely used RF connector. Generally, it is widely used in microwave equipment and RF circuits of digital communication systems, connecting cables or microstrip lines.
Applications: telecommunications, wireless communications, networks, test equipment, etc.
Product features: two-hole flange installation, mated with 3# semi-flexible/semi-rigid RF coaxial cable, with the characteristics of frequency bandwidth, excellent performance, high reliability and easy welding.

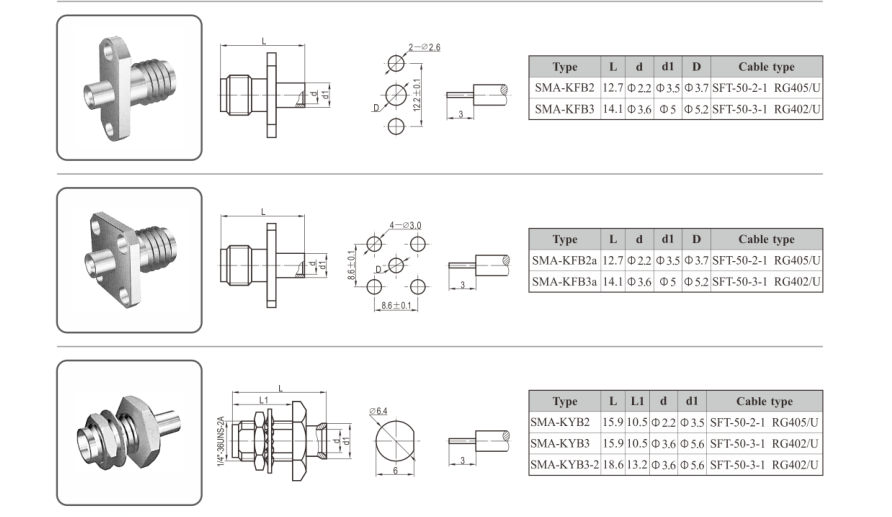

Product appearance

SMA Female RF Coaxial Connectors for 3# Semi-Rigid/Semi Flexible Cables Flange Mounted Receptacles

SMA Female RF Coaxial Connectors for 3# Semi-Rigid/Semi Flexible Cables Flange Mounted Receptacles

Important technical parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.08√F(GHZ)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating / /

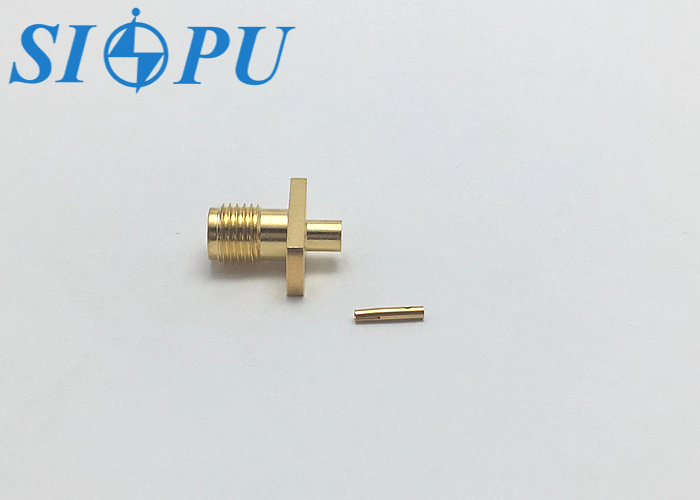

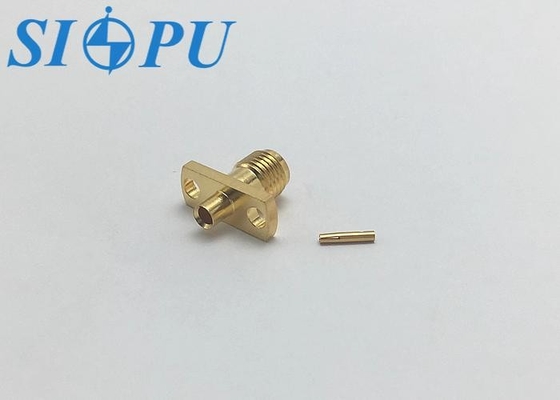

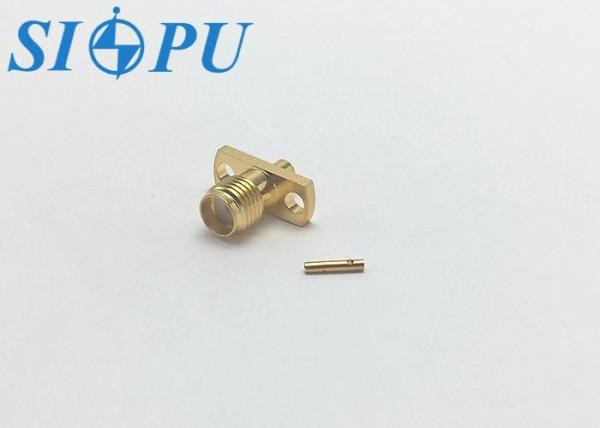

Picture display

SMA Female RF Coaxial Connectors for 3# Semi-Rigid/Semi Flexible Cables Flange Mounted ReceptaclesSMA Female RF Coaxial Connectors for 3# Semi-Rigid/Semi Flexible Cables Flange Mounted Receptacles
