Female Microstrip Coaxial SMA RF Connector Flange Mounted

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-KFD903

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Produce name : Four hole flange connector

Gender : Female

Type : Straight

Material Science : Brass

Plating : Gold

Durability : 500 times

High light : Small flange four-hole flange installation, microstrip slotting width 0.2 depth 2.5

Contact Now

SMA Female Flange Mount Microstrip RF Coaxial Connectors

Product introduction

SMA series connectors are small threaded connections, small size, wide frequency bandwidth, superior mechanical and electrical performance, high reliability, suitable for microwave communication, aerospace navigation, microwave equipment and other fields.
Applications: instrumentation, microwave communication, aerospace navigation, network, etc.

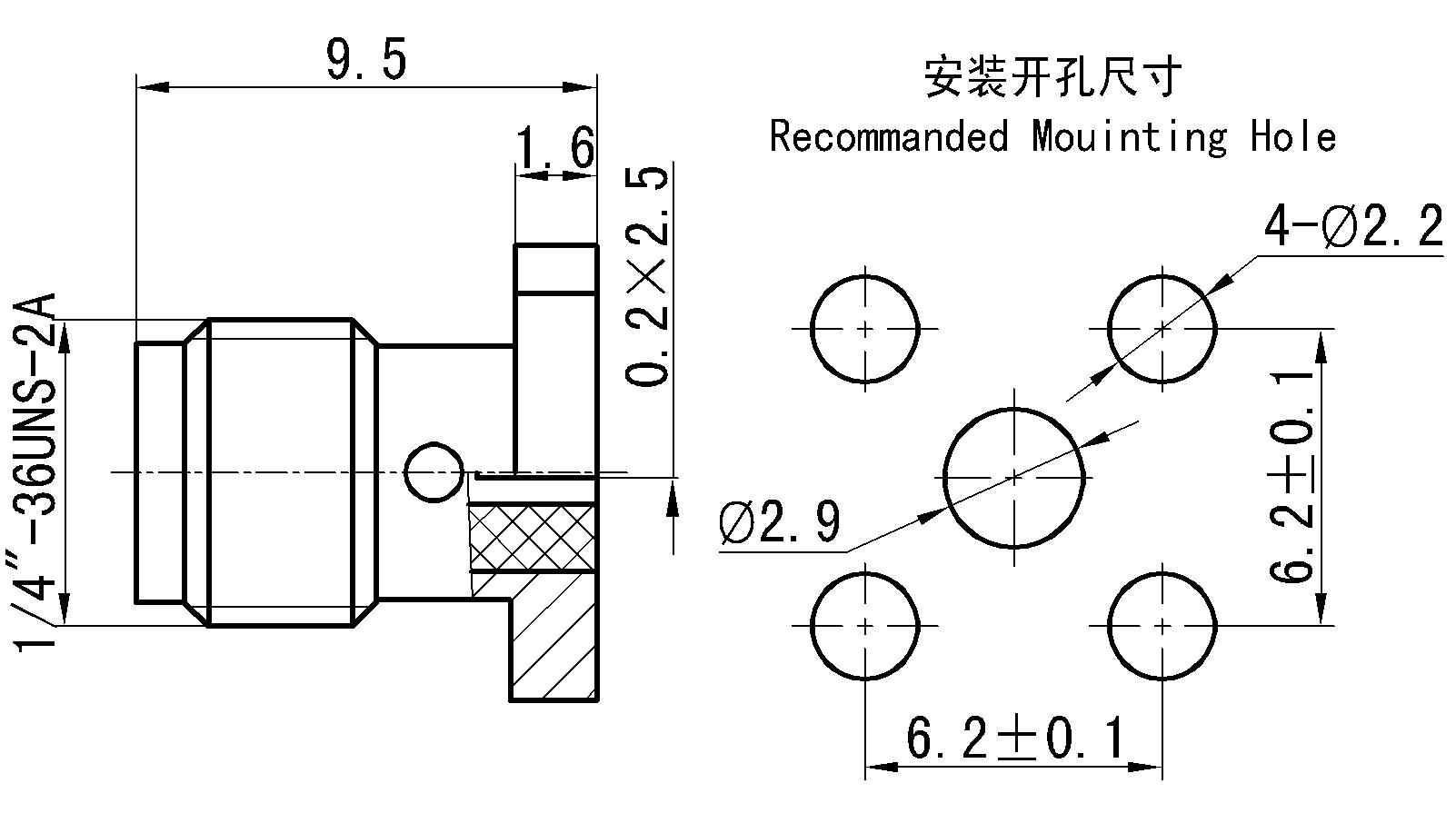

Product features: four-hole flange installation, microstrip slotting width 0.2 depth 2.5, high reliability, excellent electrical performance, frequency bandwidth, etc.

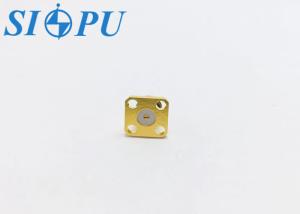

Product appearance

Female Microstrip Coaxial SMA RF Connector Flange Mounted

Important technical parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.05√F(GHZ)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating / /

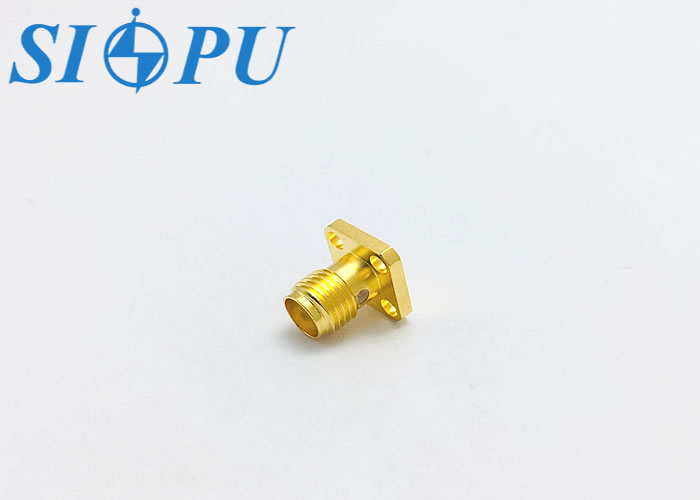

Picture display

Female Microstrip Coaxial SMA RF Connector Flange MountedFemale Microstrip Coaxial SMA RF Connector Flange Mounted
