SMA Male To SMA Female Angled RF Coax Adapter Right Angle Type

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-JWK

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : RF coaxial adapter

Gender : Male

Type : Right angle

Material Science : Brass

Plating : Gold

Durability : 500 times

High light : Right angle,both ends can be plugged with SMA, 2.92 series connectors

Contact Now

SMA Male To SMA Female Angled RF Coax Adapter

Product introduction

The RF coaxial adapter is the guarantee of the correct transfer of connectors within the same series and between different series, and generally plays the role of a bridge connection.
Scope of application: It is commonly used in the conversion and connection of the system, and is usually used in test cables and test instruments.
Product features: bent,both ends can be plugged with SMA, 2.92 series connectors, excellent electrical performance, small size, high reliability.

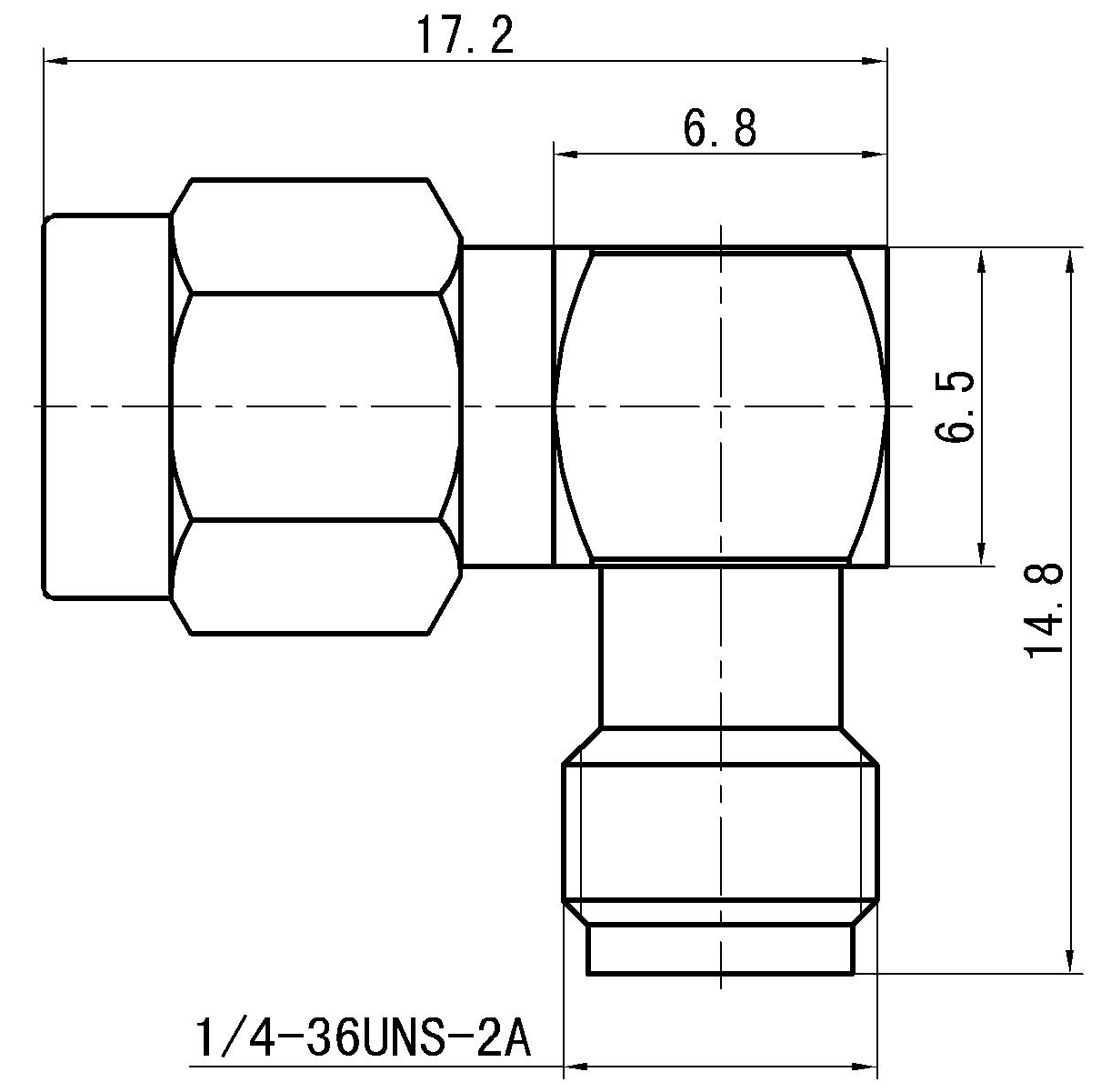

Product appearance

SMA Male To SMA Female Angled RF Coax Adapter Right Angle Type

Important technical parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.06+0.015F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.08√F(GHZ)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating Sealing ring Silicon rubber

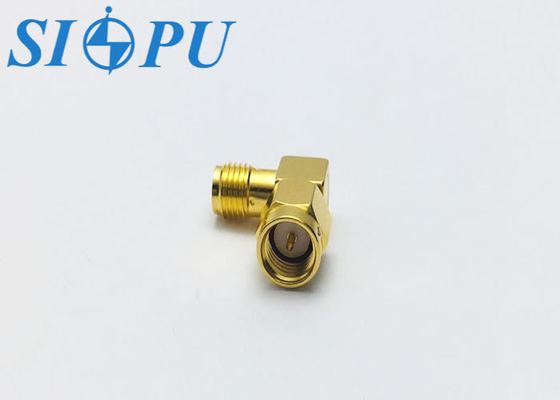

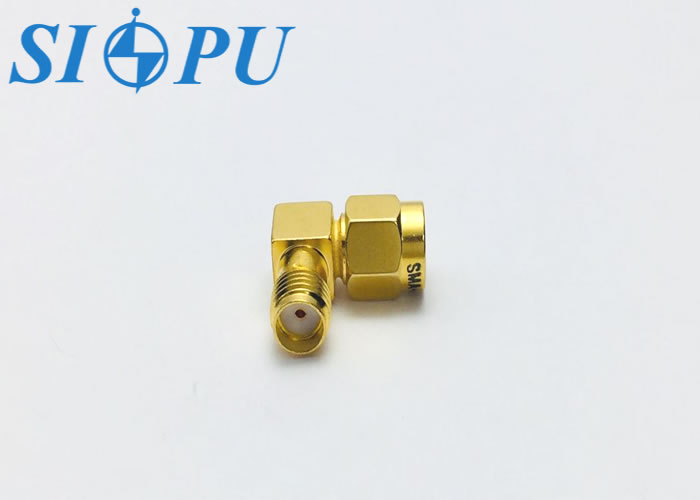

Picture display

SMA Male To SMA Female Angled RF Coax Adapter Right Angle TypeSMA Male To SMA Female Angled RF Coax Adapter Right Angle Type
