SSMB Male Straight RF Coaxial Connector PCB Soldering

Brand Name : SIPU

Model Number : SSMB-JHD

Certification : ISO9001 RoHS

Place of Origin : CHINA

MOQ : 100

Price : Discuss

Payment Terms : L/C, T/T, Western Union

Packaging Details : Carton

Supply Ability : 100000pcs/year

Delivery Time : 5-8work days

Product name : SSMB male straight PCB soldering RF coaxial connector

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

Insulating medium : PTFE

High light : PCB installation, quick insertion and removal, small size, light weight

Contact Now

SSMB Male Straight PCB Soldering RF Coaxial Connector

Product introduction

The SSMB series RF coaxial connector is a miniature push in connector with similar structural characteristics to the SMB series and a smaller volume than the SMB series. It has the characteristics of small size, light weight, and easy connection. Suitable for connecting RF coaxial cables in micro radio devices and instruments.
Application scope: wireless equipment, electronic instruments, etc.
Product features: Straight PCB soldering structure, lightweight, small size, fast insertion and removal, etc.

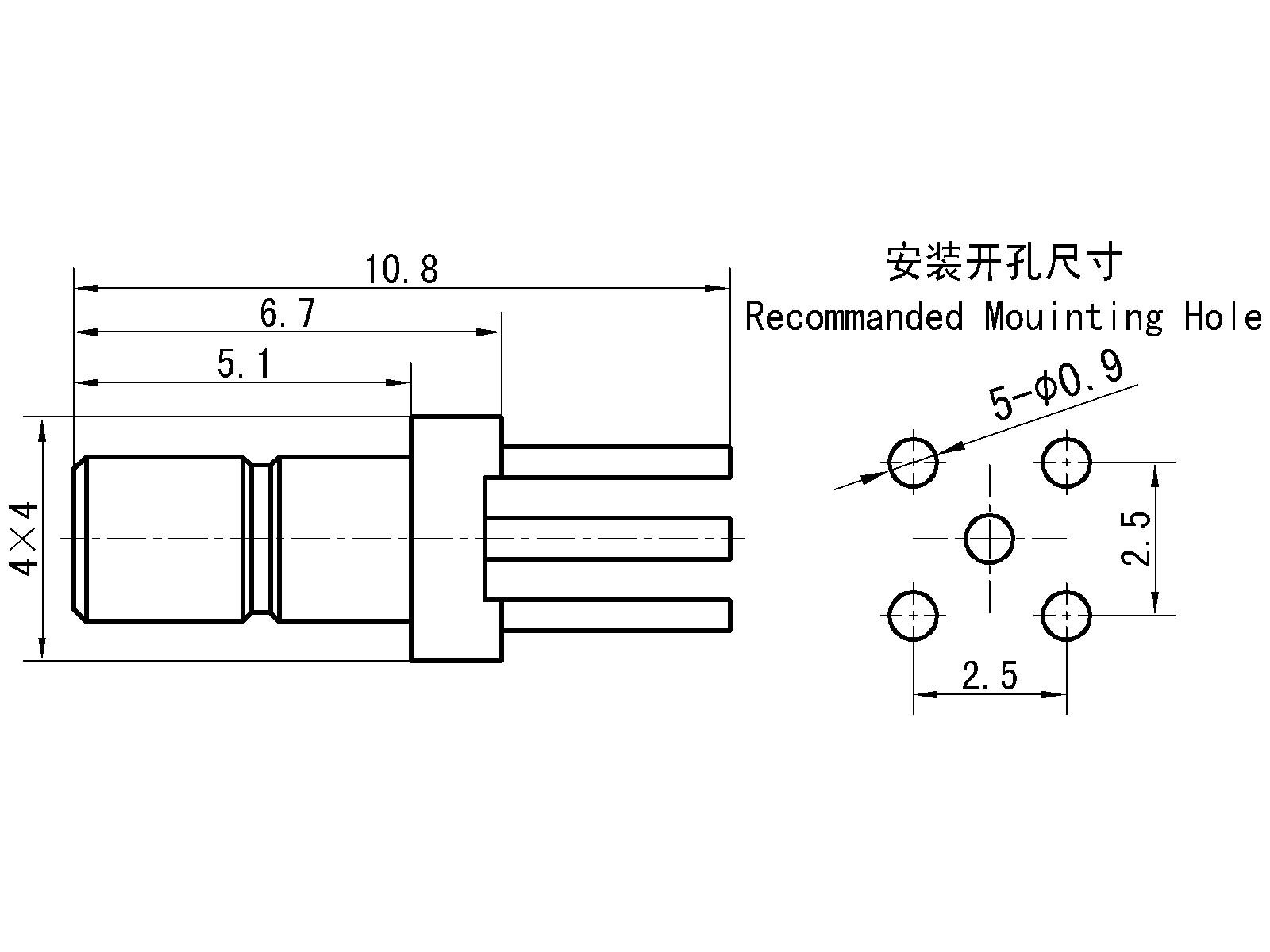

Product specifications

SSMB Male Straight RF Coaxial Connector PCB Soldering

Important technical parameters

Electrical property

Temperature range

 -55～+155℃

Characteristic impedance

 50Ω

Frequency range

 DC-3GHz

Dielectric withstanding voltage

 500V

VSWR

 ≤1.35

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.06√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and surface treatment

Center conductor

Bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

 / /

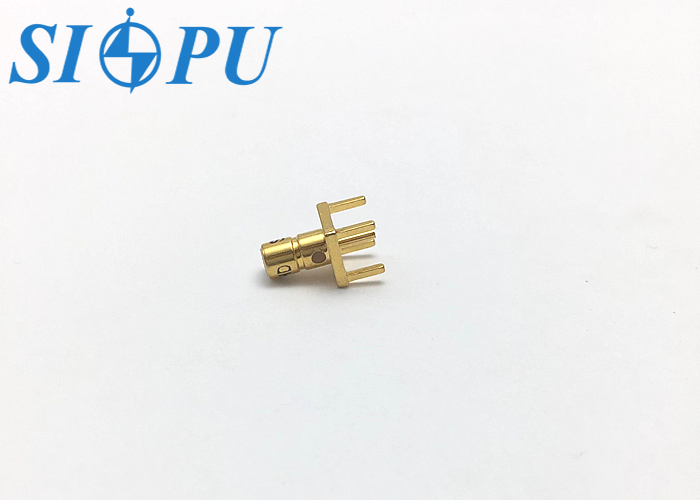

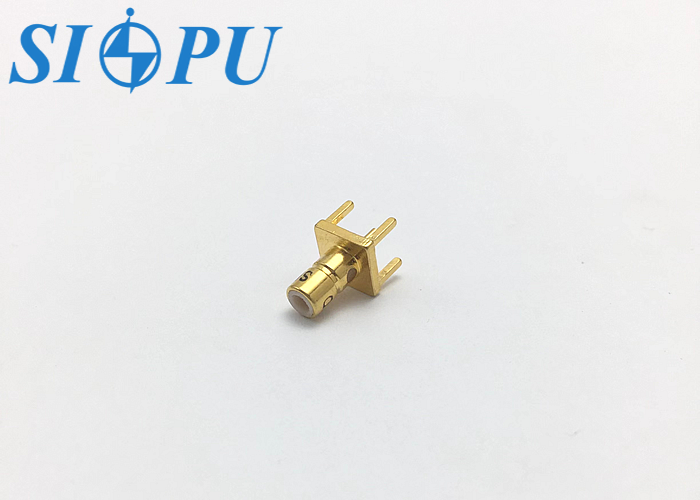

Picture display

SSMB Male Straight RF Coaxial Connector PCB SolderingSSMB Male Straight RF Coaxial Connector PCB Soldering
