Product name : Right angle cable connector
Gender : Male
Type : Right angle
Material : Beryllium copper
Plating : Gold
Durability : 500 times
Material Science : Beryllium copper
High light : Right angle,mating RG 316/U cable
Product introduction
MCX type is a push-in self-locking connector, which has the characteristics of small size, light weight and reliable contact, and is widely used in microwave communication, weapon system and other fields
Applications: base stations, transmission systems, GPS systems, instrumentation, antennas.
Product features: bent structure, mating RG 316/U cable, excellent electrical performance, easy to assemble cable, small size, light weight.

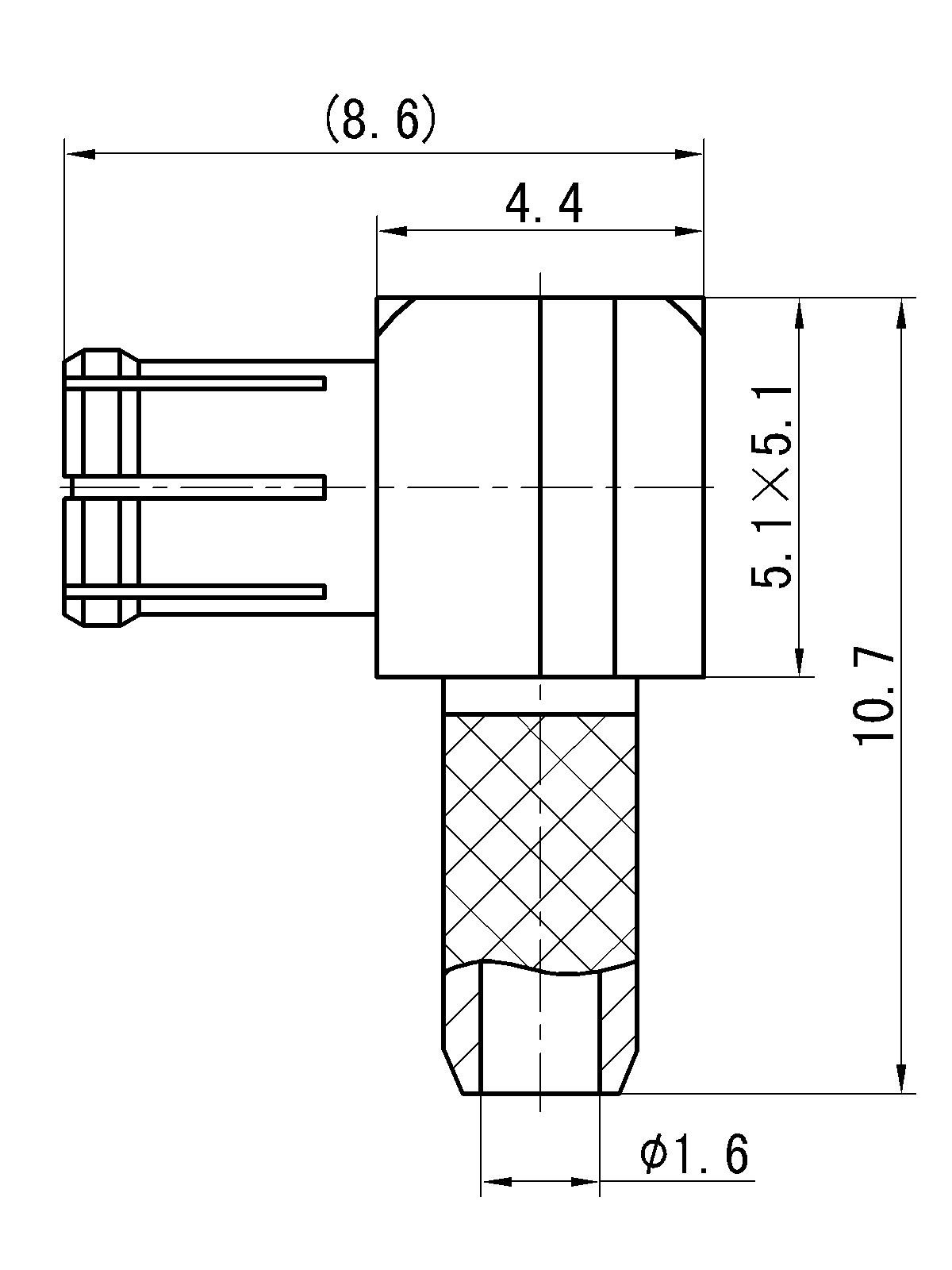

Product specifications
Important technical parameters
Electrical property
| Temperature range | -65~+125℃ | ||
Characteristic impedance
| 50Ω | Frequency range | DC-6GHz | |
Dielectric withstanding voltage
| 750V | VSWR | ≤1.3 | |
Insulation resistance
| ≥1000MΩ | Insertion loss | ≤0.1√F(GHz)dB | |
Contact resistance | Center conductor | ≤5.0mΩ | Mechanical property | |
Outer conductor | ≤2.5mΩ | Durability | 500Times |
Materials and surface treatment
Center conductor
| Brass,gold plating | Insulating medium | PTFE |
Outer conductor
| Beryllium copper,gold plating | / | / |
Picture display
![]() |

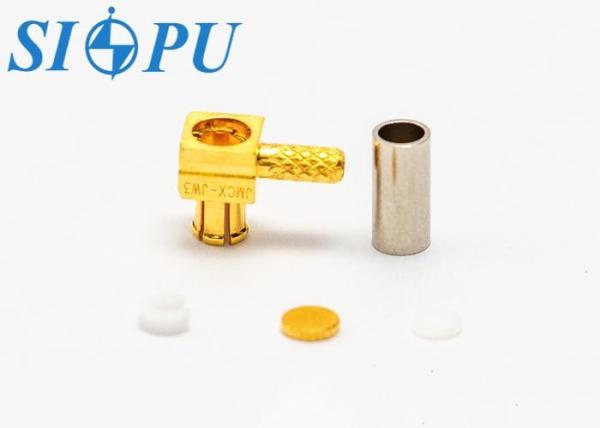

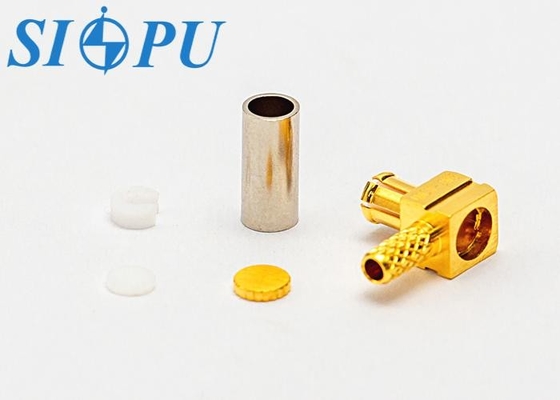

Male Corner Turning RF Coaxial Connector For RG 316/U Cable Welding Images |
