MCX Four Leg PCB RF Connector with Female Head

Name: MCX Four Leg PCB RF Connector with Female Head
Brand: SIPU
Price: 1 USD

Quality MCX Four Leg PCB RF Connector with Female Head wholesale

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : MCX-KWHD1

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 5-8Weeks

Product name : Four-Leg PCB soldering connector

Gender : Female

Type : Right angle

Material : Brass

Plating : Gold

Durability : 500 times

Insulating medium : PTEE

High light : Right angle,Four-Leg ,PCB mounting

Contact Now

MCX Female Head Four Leg PCB Installation RF Connector

Product introduction

MCX series RF coaxial connectors, plug-in interface design, have the advantages of small size, light weight, superior performance and high reliability, and are widely used in fields with special requirements for installation volume.
Applications: communication base stations, radars, antennas, instruments, etc.
Product features: bent type, PCB mounting, small size, fast plugging and unplugging, etc.

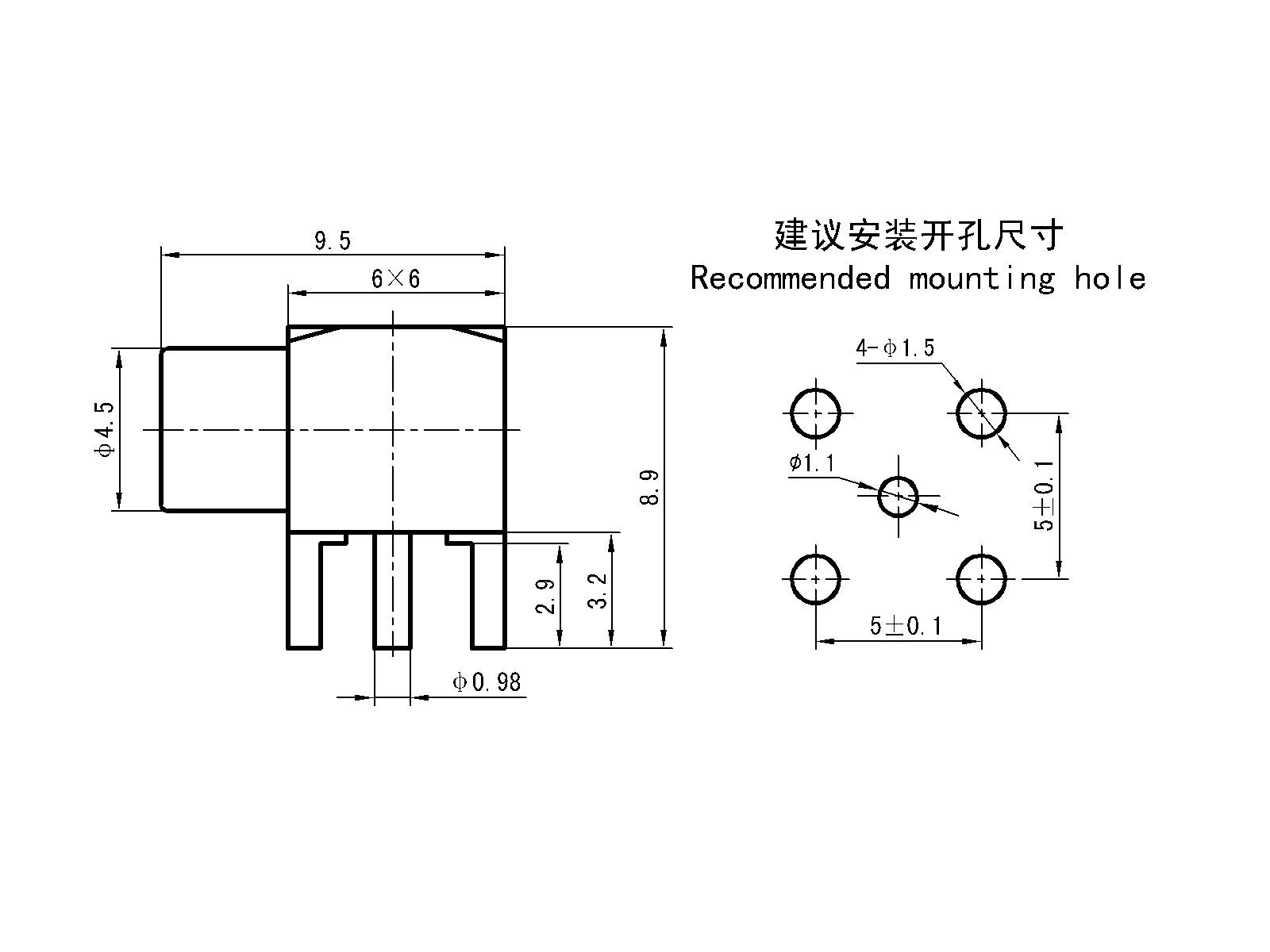

Product specifications

MCX Four Leg PCB RF Connector with Female Head

Important technical parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-6GHz
Dielectric withstanding voltage		750V	VSWR	≤1.4
Insulation resistance		≥1000MΩ	Insertion loss	≤0.1√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.5mΩ	Durability	500 Cycles

Materials and surface treatment

Center conductor

Beryllium copper,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

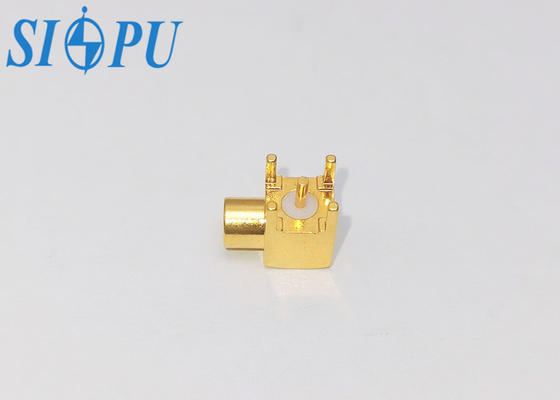

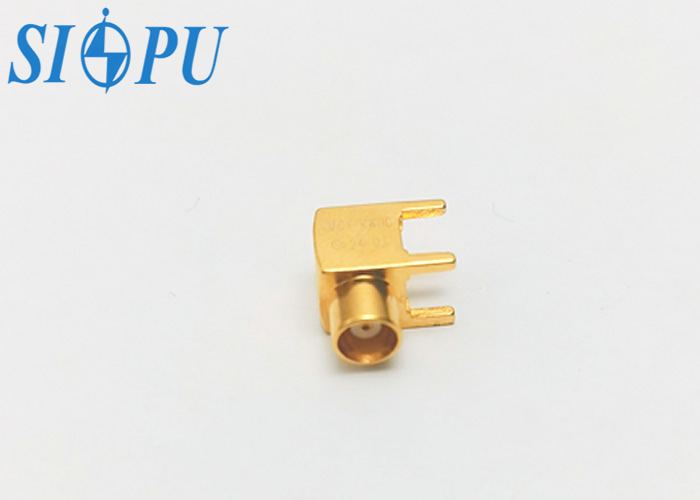

Picture display

MCX Four Leg PCB RF Connector with Female Head
