BNC Type Male Coaxial RF Termination Load Power 1W

  • 1
  • 2
  • 3

Brand Name : SIPU

Model Number : BNC-50JR-1W

Certification : ISO9001

Place of Origin : China

MOQ : 50

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : Carton

Price : Discuss

Supply Ability : 100000pcs/year

Delivery Time : 5-8work days

Product name : BNC-type male RF coaxial termination load power 1W

Gender : Male

Type : Straight

Material : Brass

Plating : Nickel

power : 1W

Characteristic impedance : 50Ω

High light : RF, testing, load

Contact Now

BNC-type Male RF Coaxial Termination Load Power 1W

Product introduction

Coaxial terminal load is suitable for precision measurement of microwave devices, microwave signal electronic equipment, and indoor distributed user terminals. It is generally used in system testing of RF signal transmission and has a characteristic impedance that matches the transmission line. It is an energy absorbing element in the system.
Application scope: System testing of RF signal transmission, wireless equipment, electronic instruments, various microwave equipment, etc.
Product features: high electrical performance, high mechanical stability, and high reliability.
Main technical characteristics

Product specifications

BNC Type Male Coaxial RF Termination Load Power 1W

Important technical parameters

Electrical property

Temperature range

-65～+165℃

Characteristic impedance

50Ω

Frequency range

DC-4GHz

Power

1W

VSWR

Ordinary level:≤1.25

Precision gradee:≤1.1

Mechanical property

Durability

500times

Materials and surface treatment

Center conductor

phosphorus coppergold plating

Insulating medium

PTFE

Outer conductor

Brass,nickel plating

Sealing ring

Silicon rubber

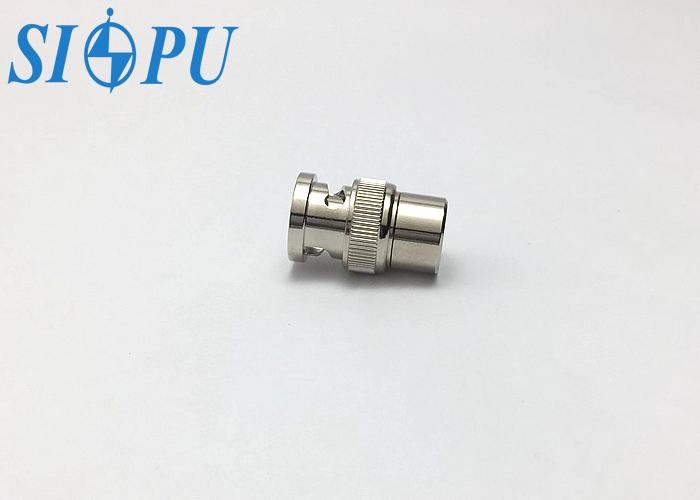

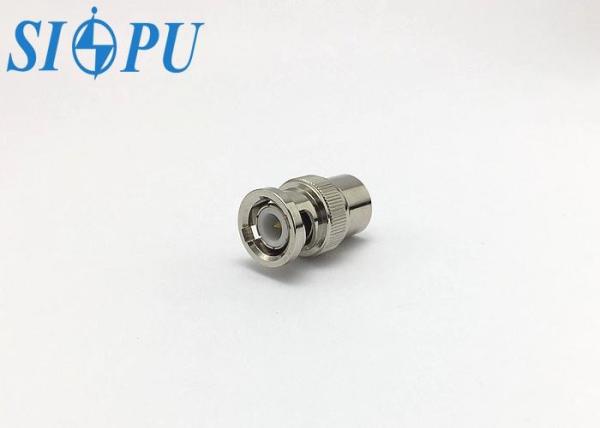

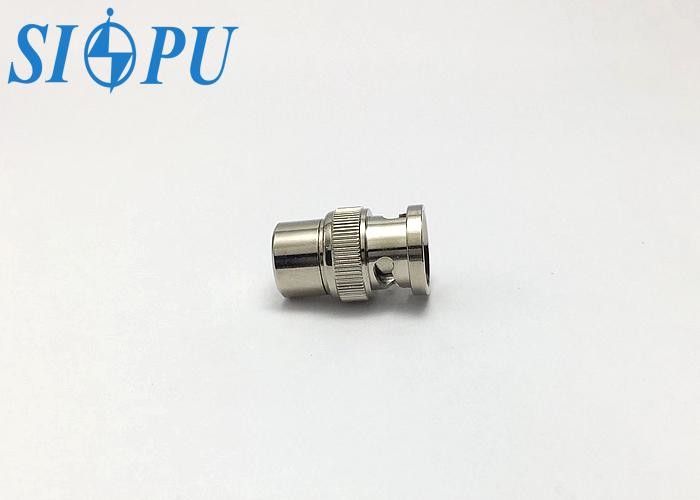

Picture display

BNC Type Male Coaxial RF Termination Load Power 1WBNC Type Male Coaxial RF Termination Load Power 1WBNC Type Male Coaxial RF Termination Load Power 1W
