N Type Male Coaxial RF Load Termination Power 1W

  • 1
  • 2
  • 3

Brand Name : sipu

Place of Origin : China

MOQ : 50

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Model Number : N-50JR-1W

Certification : ISO9001

Packaging Details : Carton

Price : Discuss

Supply Ability : 150000opcs/year

Delivery Time : 5-8work days

Product name : N-type male RF coaxial termination load power

Dielectric withstanding voltage : 1W

Characteristic impedance : 50Ω

Gender : Male

Type : Stright

Material : Brass

Plating : Nickel

High light : RF, signal, terminal, testing, load

Contact Now

N-type Male RF Coaxial Termination Load Power 1W

Product introduction

The coaxial terminal load is suitable for microwave signal electronic equipment, microwave device precision measurement and indoor distribution of user terminals, and is generally used in the system test of RF signal transmission, with the characteristic impedance matched with the transmission line, and is the energy absorption element in the system.
Applications: system testing of radio frequency signal transmission, radio equipment, electronic instruments, microwave equipment, etc.
Product features: N-type male connector, power 1W, high electrical performance, high mechanical stability, wide frequency band, high reliability.

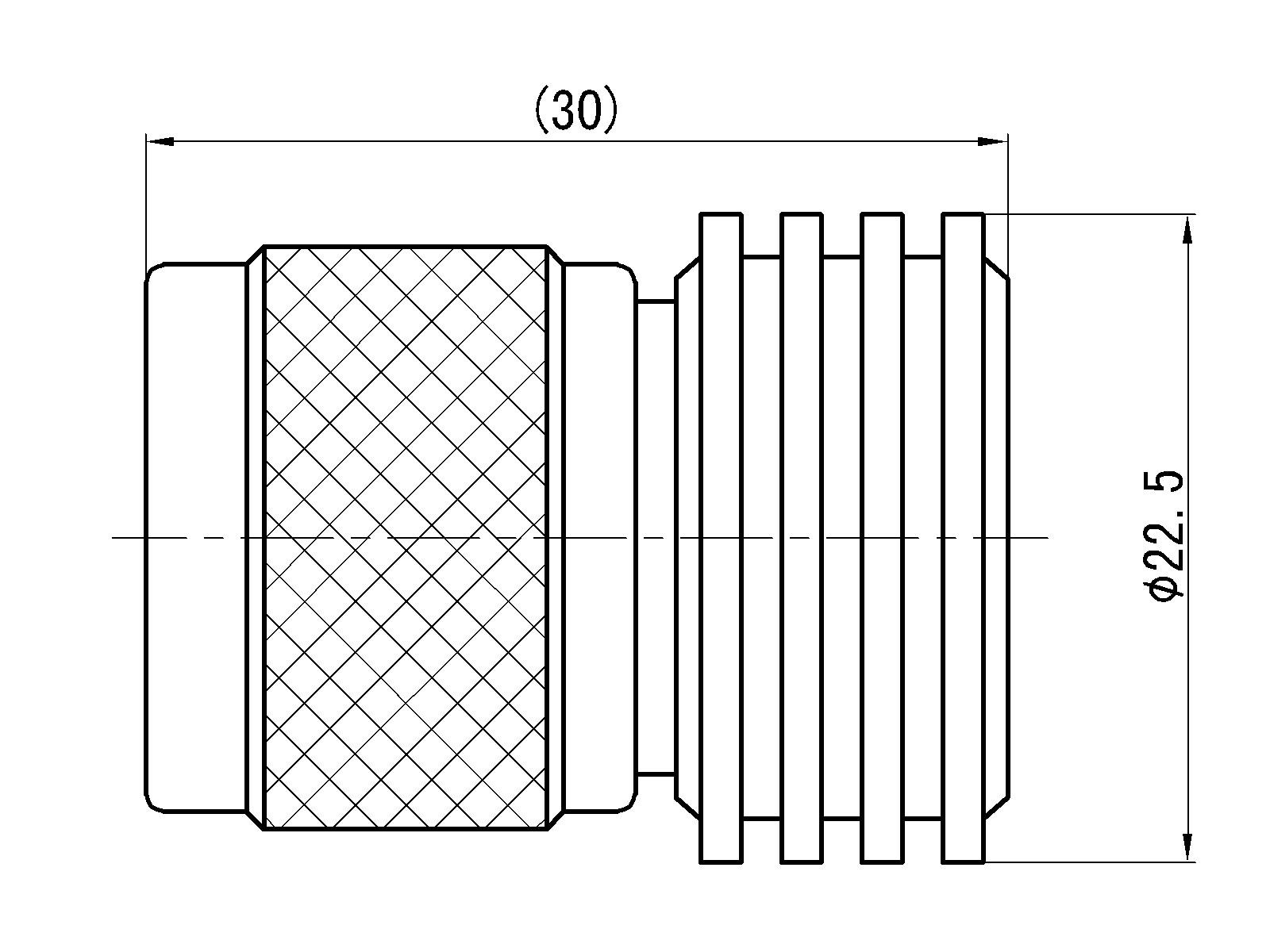

Product specifications

N Type Male Coaxial RF Load Termination Power 1W

Important technical parameters

Electrical property

Temperature range

-65～+125℃

Characteristic impedance

50Ω

Frequency range

DC-12.5GHz

Power

1W

VSWR

Ordinary level:≤1.2

Precision gradee:≤1.05

Mechanical property

Durability

500times

Materials and surface treatment

Center conductor

Brass,gold plating

Insulating medium

PTFE

Outer conductor

Brass,nickel plating

Sealing ring

Silicon rubber

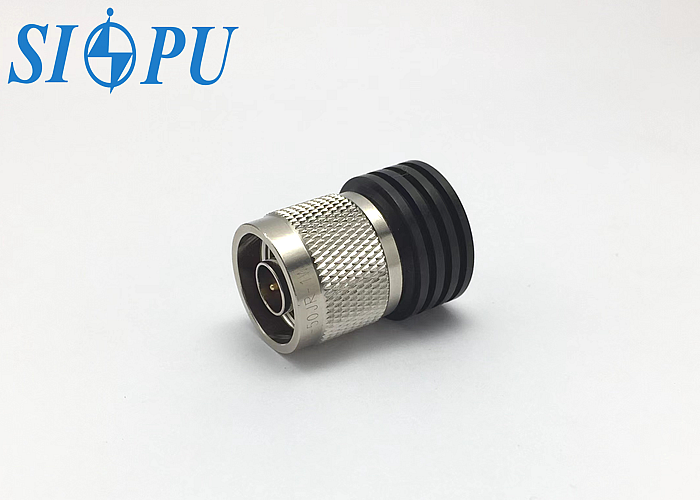

Picture display

N Type Male Coaxial RF Load Termination Power 1W
