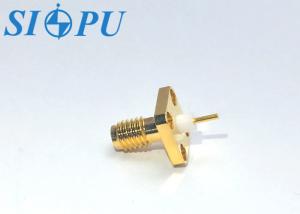

Brass RF Coaxial Female SSMA Connector Four Hole Flange Mounted

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SSMA-KFD18

Certification : IOS9001-2017 RoHS

Price : Discuss

Packaging Details : Carton

Delivery Time : 6-8weeks

Supply Ability : 100000pcs/year

Product name : Four hole flange connector

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

High light : Coaxial connector

Contact Now

SSMA Female RF Coaxial Connector Flange Mount Receptacle

Product introduction

SSMA RF coaxial connectors have the advantages of small size, superior mechanical and electrical properties, and high reliability, and are widely used in aviation, aerospace, microwave communication and other fields.
Applications: test instruments, base stations, electronic components, telecommunication systems, etc.

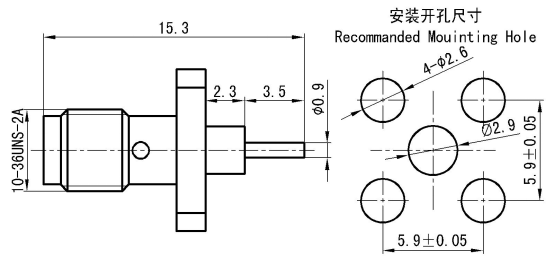

Product features: four-hole flange mounted microstrip socket, microstrip size φ0.9×3.5, high reliability, excellent electrical performance, small size, easy installation, etc.

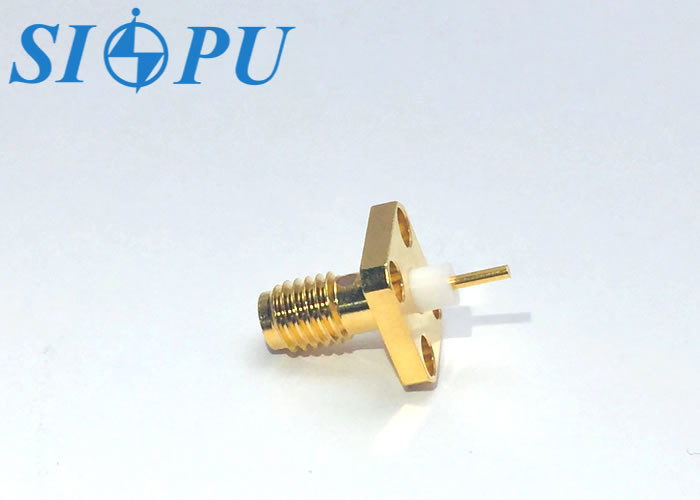

Product appearance

Brass RF Coaxial Female SSMA Connector Four Hole Flange Mounted

Important technical param

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-30GHz

Dielectric withstanding voltage

 750V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥1000MΩ Insertion loss

≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤4.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating / /

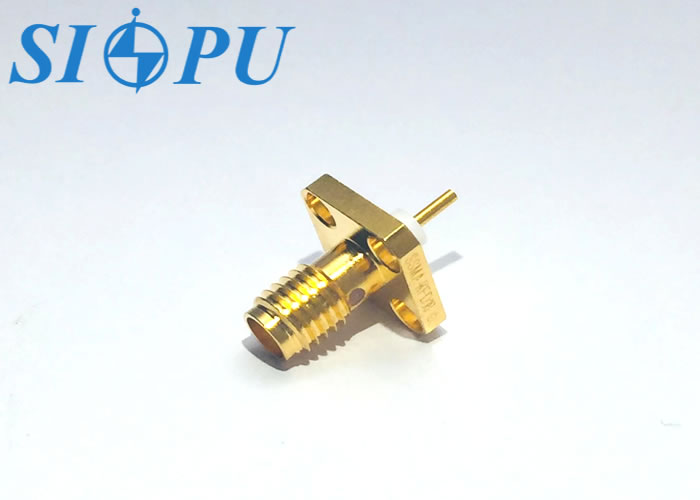

Picture display

Brass RF Coaxial Female SSMA Connector Four Hole Flange MountedBrass RF Coaxial Female SSMA Connector Four Hole Flange Mounted
