SSMA Female Microstrip RF Coaxial Connectors Two Hole Flange Mounted

  • 1
  • 2
  • 3

Brand Name : sipu

Place of Origin : China

MOQ : 100

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Model Number : SSMA(S)-KFD13G

Certification : ISO9001

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Supply Ability : 100000pcs/year

Product name : Two hole flange connector

Gender : Female

Type : Straight

Material : Stainless steel

Plating : Passivation

Durability : 500 times

High light : Sealing, waterproof, connector, flange installation, small volume

Contact Now

Product introduction

SSMA series connector is a miniaturized product of SMA series, smaller in size, higher frequency, generally used in small cables, widely used, often used in digital communication systems and microwave equipment.
Applications: electronic components, test instruments, telecommunication systems, base stations, etc.
Product features: two-hole flange installation, superior frequency bandwidth, superior electrical performance, small size, light weight, etc.

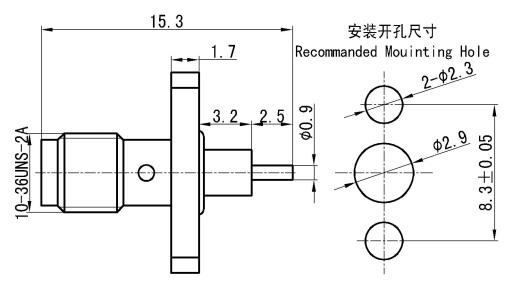

Product appearance

SSMA Female Microstrip RF Coaxial Connectors Two Hole Flange Mounted

​Important technical parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-30GHz

Dielectric withstanding voltage

 750V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥1000MΩ Insertion loss ≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤4.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500次

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

uter conductor

 Stainless steel,passivating Sealing ring Aviation rubber

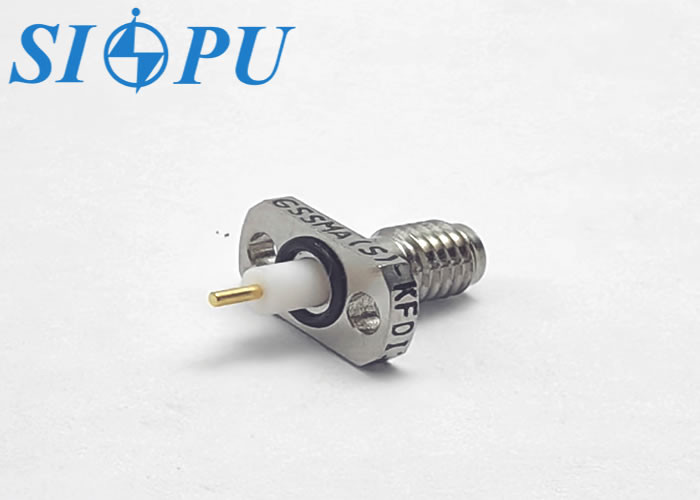

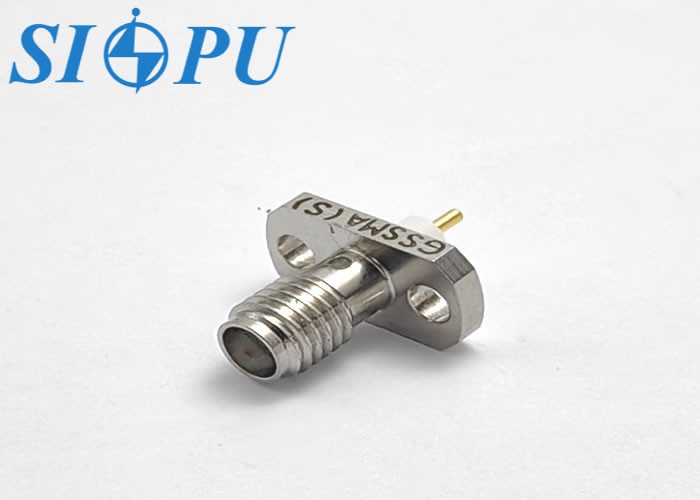

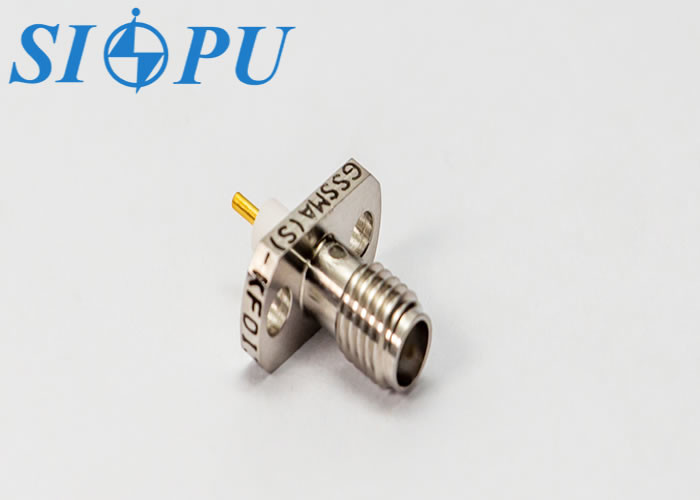

Picture display

SSMA Female Microstrip RF Coaxial Connectors Two Hole Flange MountedSSMA Female Microstrip RF Coaxial Connectors Two Hole Flange MountedSSMA Female Microstrip RF Coaxial Connectors Two Hole Flange Mounted
