RF Coaxial Male N Connector For SFCJ-50-3-51 Cable N-J301

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 10

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Model Number : N-J301

Certification : ISO9001

Price : Discuss

Packaging Details : carton

Characteristic impedance : 50Ω

Dielectric withstanding voltage : 500V

Insulation resistance : ≥1000MΩ

Center conductor : ≤10mΩ

Outer conductor : ≤5.0mΩ

Temperature range : -40～+90℃

Frequency range : DC-6GHz

VSWR : ≤1.4

Insertion loss : ≤0.1dB

Durability : 500 times

Insulating medium : PTEE

Product name : 1

Gender : 1

Type : 1

Material : 1

Plating : 1

High light : 1

Contact Now

N Male RF Coaxial Connector For SFCJ-50-3-51 Cable N-J301

Product introduction

N series is a medium power RF connector with threaded connection structure developed and produced in accordance with MIL-C-39012 and IEC60169-16. It has the characteristics of strong seismic resistance, high reliability, excellent mechanical and electrical properties, and is widely used in radio equipment and instruments to connect RF cables. It is interchangeable with similar products in the world.
Applications: military systems, radio equipment, communication fields, ground launch systems, etc.
Product features: Matching SFCJ-50-3-51 RF coaxial cable, strong vibration resistance, band bandwidth, high reliability, excellent mechanical and electrical performance, easy to assemble and connect, etc.

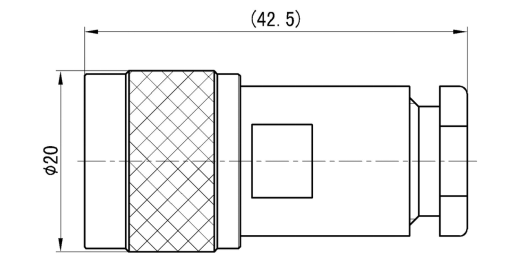

Product appearance


RF Coaxial Male N Connector For SFCJ-50-3-51 Cable N-J301

Technical parameter

Electrical property

Temperature range-65～+125℃

Characteristic impedance

50ΩFrequency rangeDC-11GHz

Dielectric withstanding voltage

1500VVSWR≤1.3

Insulation resistance

≥5000MΩInsertion loss≤0.06dB

Contact resistance

Center conductor≤1.5mΩMechanical property
Outer conductor≤0.2mΩDurability500 times

Materials and surface treatmen

Center conductor

Brass,gold platingInsulating mediumPTFE

Outer conductor

Brass,nickel platingSealing ringSilicon rubber

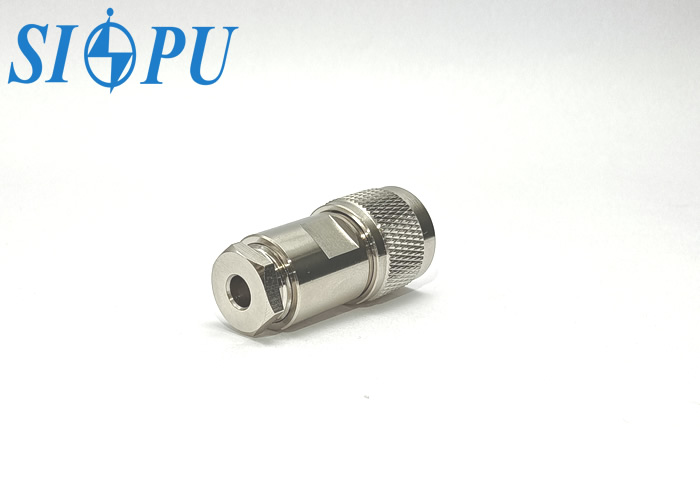

Picture display

RF Coaxial Male N Connector For SFCJ-50-3-51 Cable N-J301
