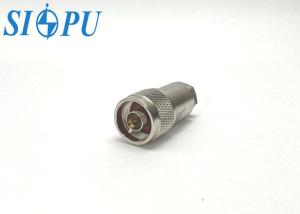

N Series Male Straight RF Connectors for RG 142/U Coaxial Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 50

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Model Number : N-J5

Certification : ISO9001

Price : Discuss

Packaging Details : carton

Delivery Time : 5-8works

Characteristic impedance : 50Ω

Durability : 500 times

Product name : N Cable connector

Gender : Straight

Type : Male

Material : Brass

Plating : Nickel

High light : Connect RG142B cable connector

Contact Now

N-series Male Straight RF Connectors Are Mated With RG 142/U Coaxial Cable

Product introduction

N series is a medium power RF connector with threaded connection structure developed and produced in accordance with MIL-C-39012 and IEC60169-16. It has the characteristics of excellent electrical performance, frequency bandwidth, reliable connection, etc., and can be interchangeable with similar products in the world.
Applications: Communications, radar, broadcasting and other wireless equipment.
Product features: straight structure, mated with RG142/U RF coaxial cable or other cables of the same specification, reliable connection, excellent electrical performance, frequency up to 11GHz, etc.

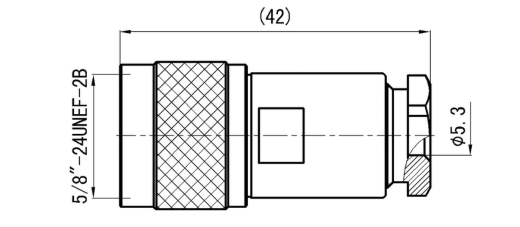

Product appearance

N Series Male Straight RF Connectors for RG 142/U Coaxial Cable

Important technical parametersr

Electrical property

Temperature range-65～+125℃

Characteristic impedance

50ΩFrequency rangeDC-11GHz

Dielectric withstanding voltage

1500VVSWR≤1.3

Insulation resistance

≥5000MΩInsertion loss≤0.06d√F(GHz)dB

Contact resistance

Center conductor≤1.5mΩMechanical property
Outer conductor≤0.2mΩDurability500 times

Materials and surface treatmen

Center conductor

Brass,gold platingInsulating mediumPTFE

Outer conductor

Brass,nickel platingSealing ring

Silicon rubber

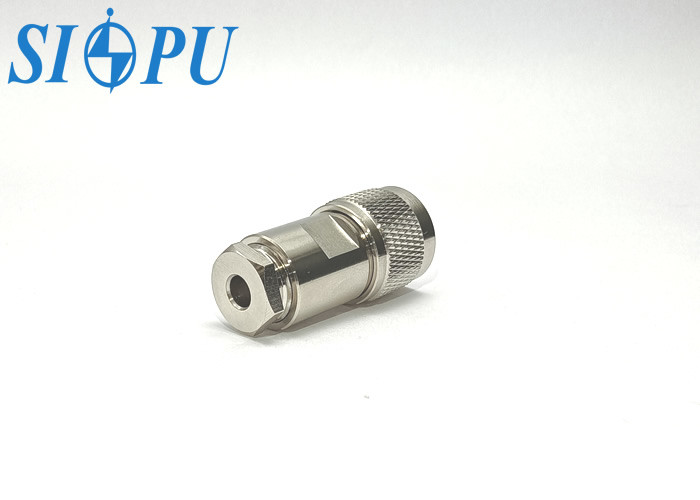

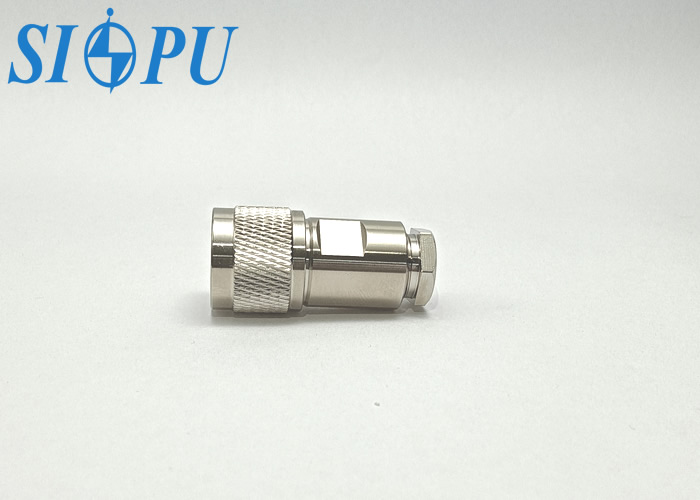

Picture display

N Series Male Straight RF Connectors for RG 142/U Coaxial CableN Series Male Straight RF Connectors for RG 142/U Coaxial Cable
