BMA Male Threaded Installation RF Coaxial Connector With RG316/U Cable

Brand Name : SIPU

Model Number : BMA-JY3Y

Certification : ISO9001 R0HS

Place of Origin : CHINA

MOQ : 100

Price : DISCUSS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 120000

Delivery Time : 5-8works

Packaging Details : Carton

Product name : BMA male threaded installation RF coaxial connector with RG316/U cable

Gender : Straight

Type : Male

Material : Brass

Plating : Gold

High light : BMA male threaded installation RF coaxial connector with RG316/U cable

Characteristic impedance : 50Ω

Durability : 500 times

Contact Now

BMA Male Threaded Installation RF Coaxial Connector With RG316/U Cable

Product introduction

BMA is a blind insertion sliding type small RF coaxial connector, which adopts a spring plate structure, reliable contact, and superior mechanical and electrical performance.
Application scope: Widely used for module connection in chassis and cabinets.
Product features: BMA straight male connector, compatible with 2 # flexible cable RG316/U, featuring small size, bandwidth, and easy docking.

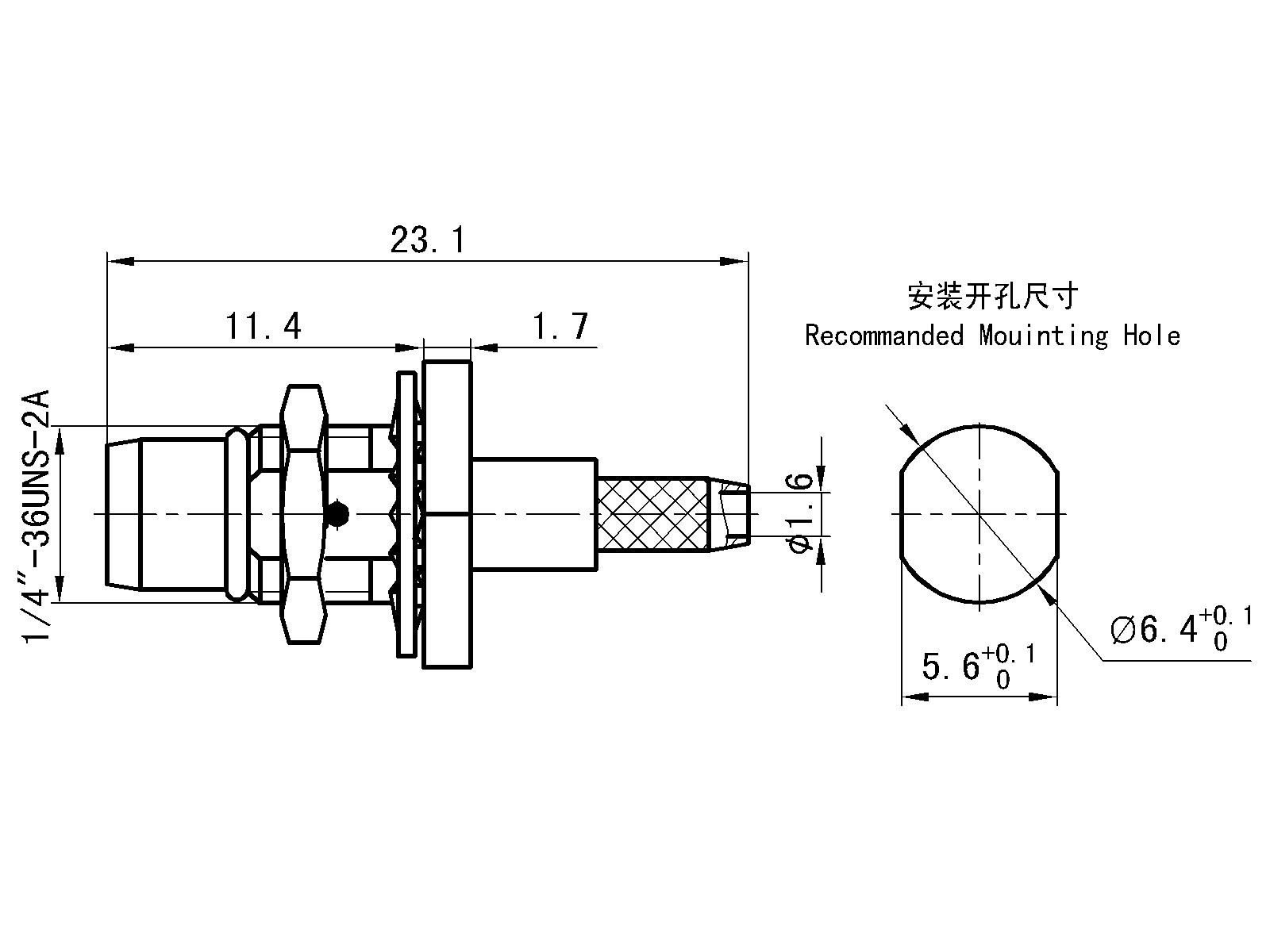

Product specifications

BMA Male Threaded Installation RF Coaxial Connector With RG316/U Cable

Important technical parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-18GHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.15+0.012F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

/

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

 PTFE

Outer conductor

Brass,gold plating

Sealing ring

Silicon rubber

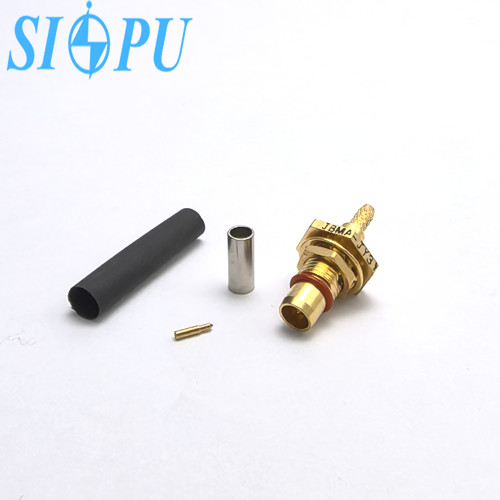

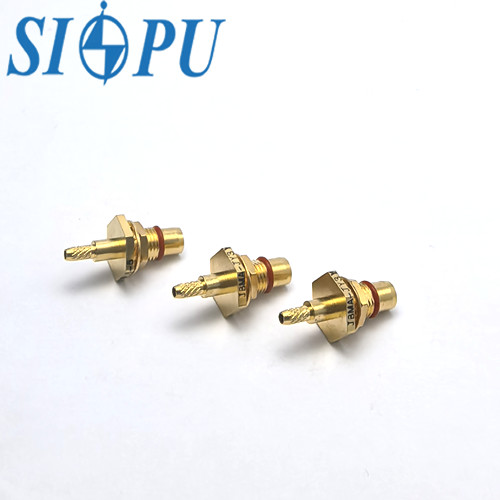

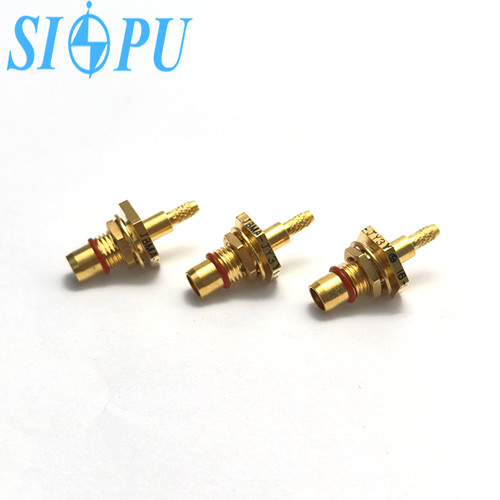

Picture display

BMA Male Threaded Installation RF Coaxial Connector With RG316/U CableBMA Male Threaded Installation RF Coaxial Connector With RG316/U CableBMA Male Threaded Installation RF Coaxial Connector With RG316/U CableBMA Male Threaded Installation RF Coaxial Connector With RG316/U Cable
