Flange Mount RF Coaxial BMA Female Connector for 2# Semi Rigid / Semi Flexible Cable

Name: Flange Mount RF Coaxial BMA Female Connector for 2 Semi Rigid Semi Flexible Cable
Brand: SIPU
Price: 1 USD

Quality Flange Mount RF Coaxial BMA Female Connector for 2# Semi Rigid / Semi Flexible Cable wholesale

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : BMA-KFB2-8

Certification : ISO9001 R0HS

Packaging Details : Carton

Price : DISCUSS

Delivery Time : 5-8works

Supply Ability : 10000pcs/years

Product name : BMA female flange installation with 2 # semi-rigid/semi flexible cable RF coaxial connector

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Insulating medium : PTFE

Characteristic impedance : 50Ω

Durability : 500 times

High light : Double hole flange, cable connection

Contact Now

BMA Female Flange Mount RF Coaxial Connector Mating 2# Semi-Rigid/Semi-Flexible Cable

Product introduction

BMA series RF coaxial connectors, also known as blind mating connectors, can be used for the connection of various microwave circuits, especially suitable for blind mating of chassis and cabinets, which is conducive to the modularization of radar and other complete machine systems. Meets IEC61169-33 standard.
Application: It is often used in the interconnection of modular products.
Product features: two-hole flange installation, mating 2# semi-rigid/semi-flexible cable, small size, convenient plugging, wide frequency bandwidth, superior mechanical and electrical performance, etc.

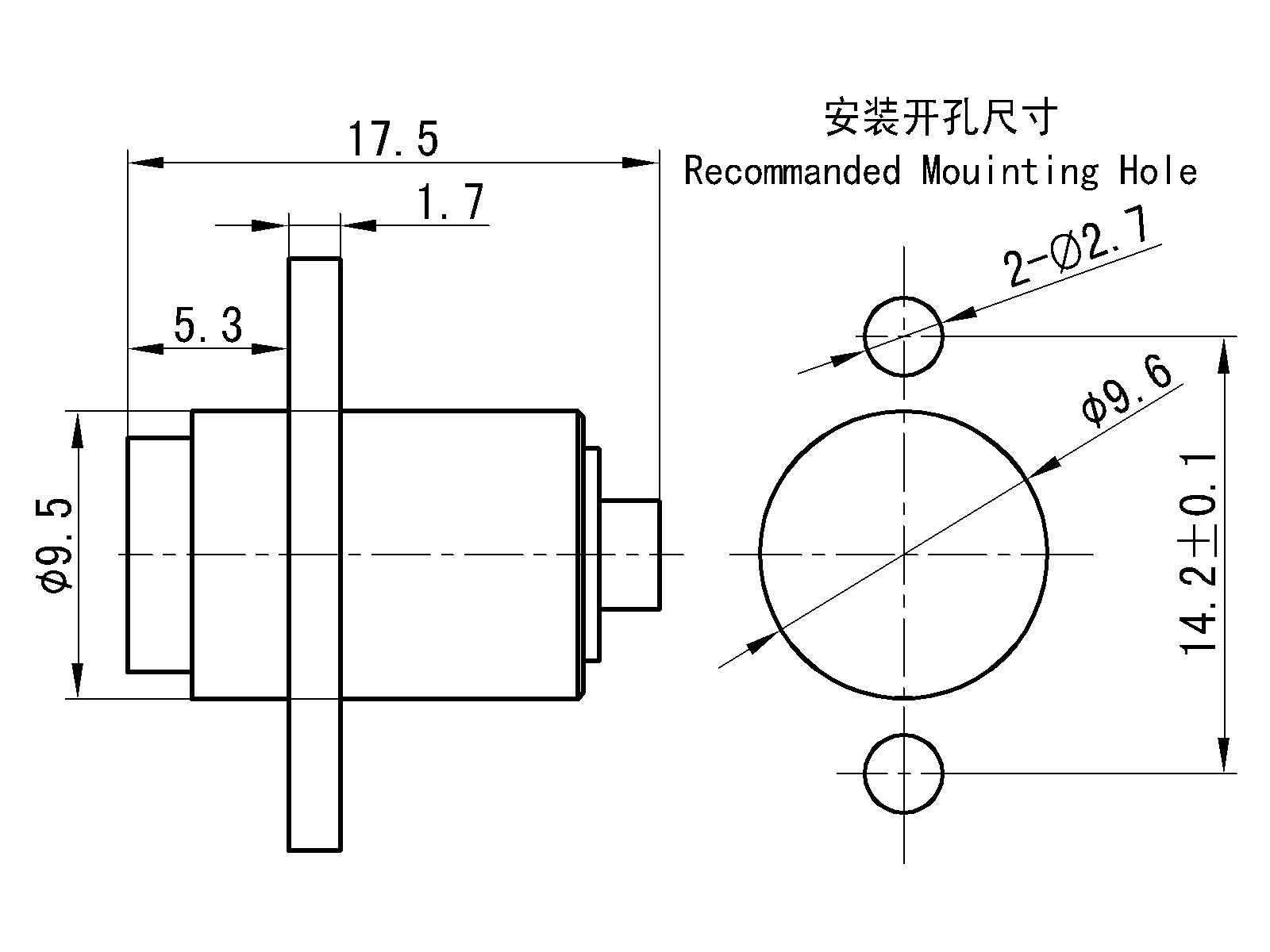

Product specifications

Flange Mount RF Coaxial BMA Female Connector for 2# Semi Rigid / Semi Flexible Cable

Important technical parameters

Electrical property

Temperature range

-55～+125℃

Characteristic impedance

50Ω

Frequency range

DC-22GHz

Dielectric withstanding voltage

1000V

VSWR

≤1.15+0.012F(GHz)

Insulation resistance

≥5000MΩ

Insertion loss

≤0.08√F(GHz)dB

Contact resistance

Center conductor

≤3.0mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

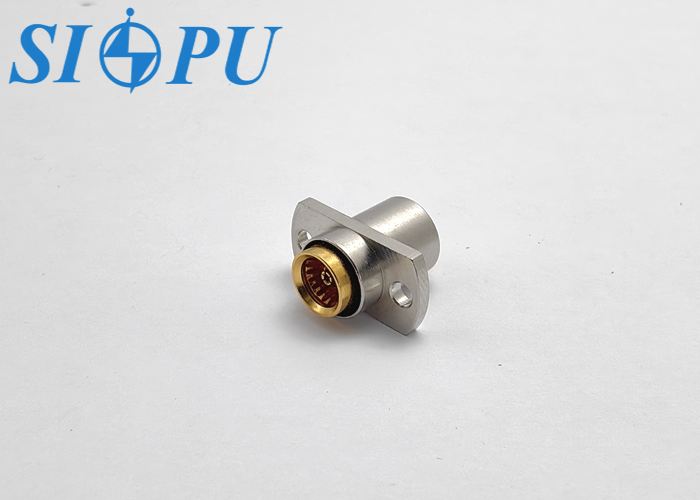

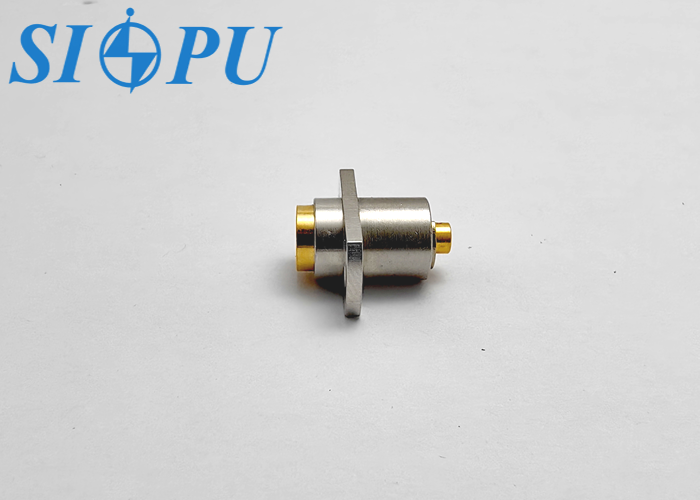

Picture display

Flange Mount RF Coaxial BMA Female Connector for 2# Semi Rigid / Semi Flexible Cable
