Microstrip BMA RF Connector Straight With 2 Hole Flange Installation

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : BMA-JFD1

Certification : ISO9001 R0HS

Packaging Details : Carton

Price : DISCUSS

Delivery Time : 5-8works

Supply Ability : 120000

Product name : BMA 2-hole flange installation RF microstrip connector

Gender : Straight

Type : Male

Material : Brass

Plating : Gold

High light : Two hole flange, microstrip, welding

Characteristic impedance : 50Ω

Durability : 500 times

Contact Now

BMA 2-Hole Flange Installation RF Microstrip Connector

Product introduction

BMA series RF coaxial connectors, also known as blind mate connectors, can be used for the connection of various microwave circuits, especially for blind mating of chassis and cabinets. Meets IEC61169-33 standard.
Applications: Modular blind plug systems such as radars and cabinets, wireless communication, etc.
Product features: two-hole flange installation, frequency up to 18GHz, superior electrical performance, small size, convenient docking, etc.

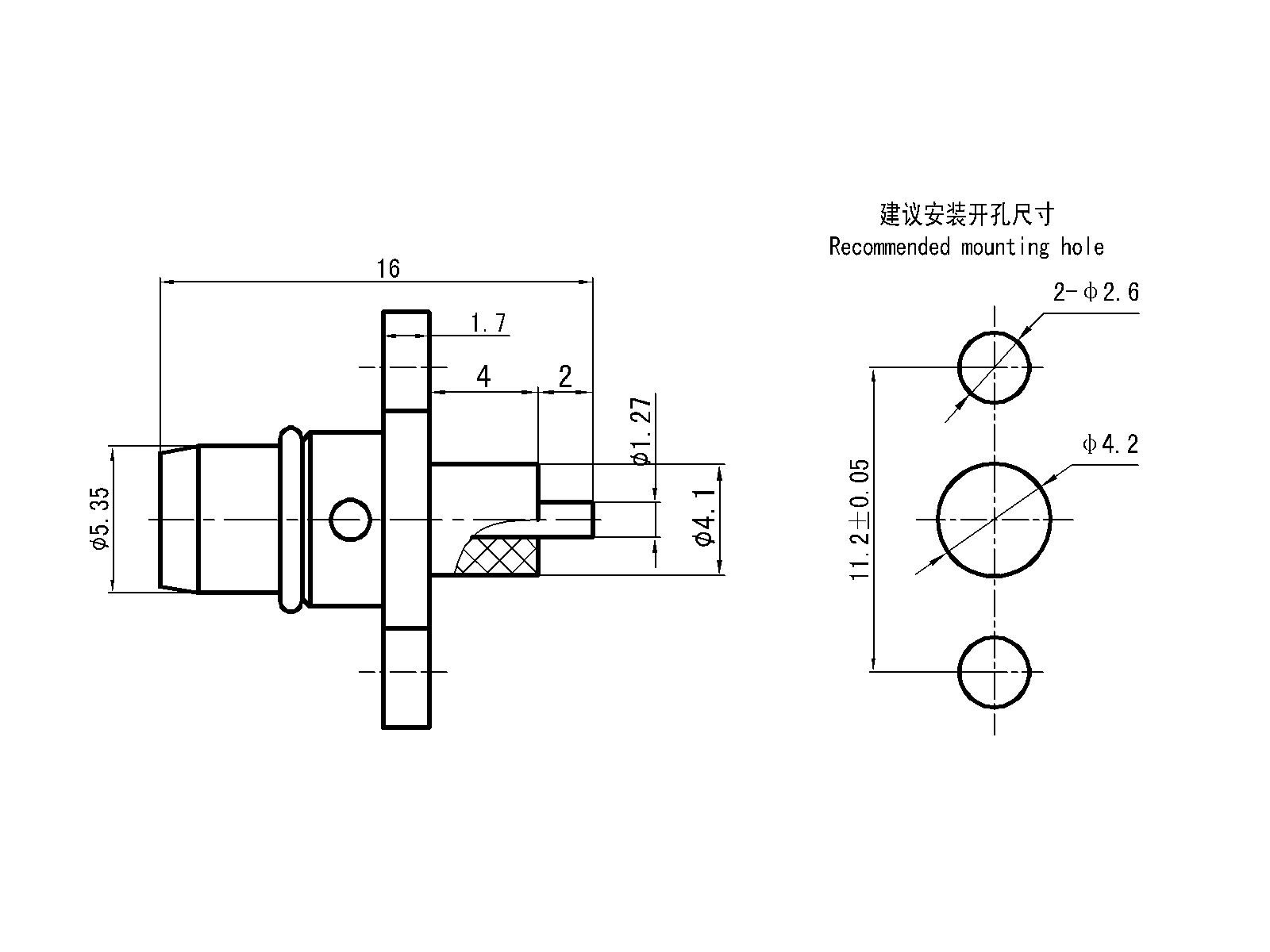

Product specifications

Microstrip BMA RF Connector Straight With 2 Hole Flange Installation

Important technical parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-18GHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.15+0.012F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

≤0.08√F(GHz)dB

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times

Materials and surface treatment

Center conductor

Brass,gold plating

Insulating medium

 PTFE

Outer conductor

Brass,gold plating

Sealing ring

Silicon rubber

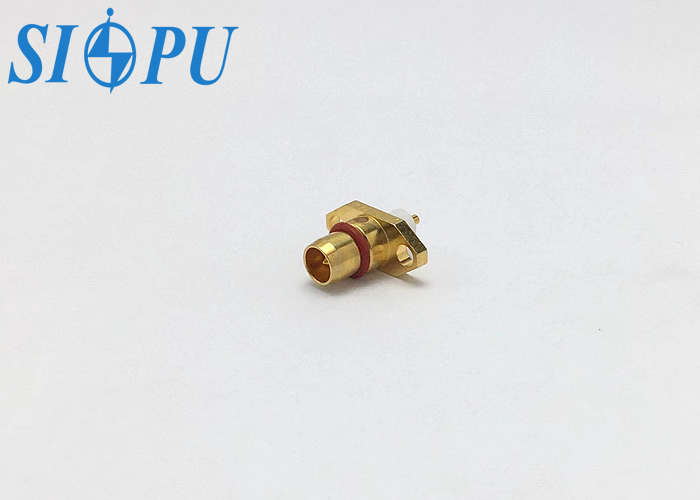

Picture display

Microstrip BMA RF Connector Straight With 2 Hole Flange Installation
