MCX Female Microstrip RF Coaxial Connector Threaded Mounted

Product Categories
Xi'an Aerospace Sipu Electronic Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

MCX Female Microstrip RF Coaxial Connector Threaded Mounted

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : MCX-KYD9

Packaging Details : Carton

Certification : ISO9001-2017 RoHS

Price : Discuss

Delivery Time : 5-8Weeks

Product name : Microstrip RF coaxial connectors

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

High light : Small size, light weight, easy connection

Durability : 500 times

Contact Now

MCX Female Threaded Mount Microstrip RF Coaxial Connector

Product introduction

The MCX connector is a push-in connection structure, easy and fast connection, small form factor RF coaxial connector, widely used in the field with special requirements for installation volume.
Applications: antennas, base station applications, GPS systems, instrumentation, transmission systems.
Product features: Generally threaded in the cavity, with the characteristics of small size, light weight, easy connection and superior performance.

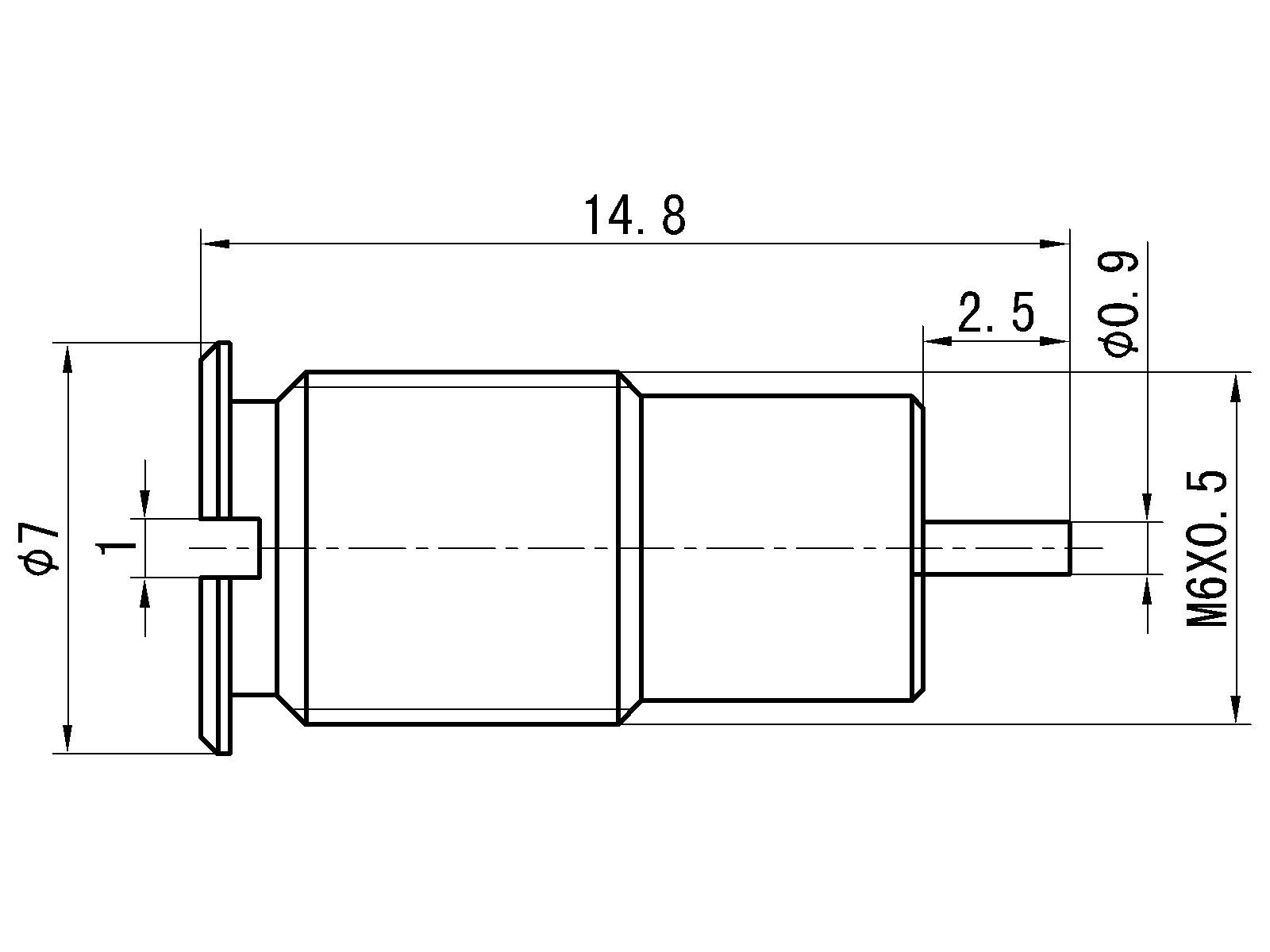

Product specifications

MCX Female Microstrip RF Coaxial Connector Threaded Mounted

Important technical parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-6GHz

Dielectric withstanding voltage

 750V

VSWR

 ≤1.3

Insulation resistance

 ≥1000MΩ

Insertion loss

≤0.1√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

 / /

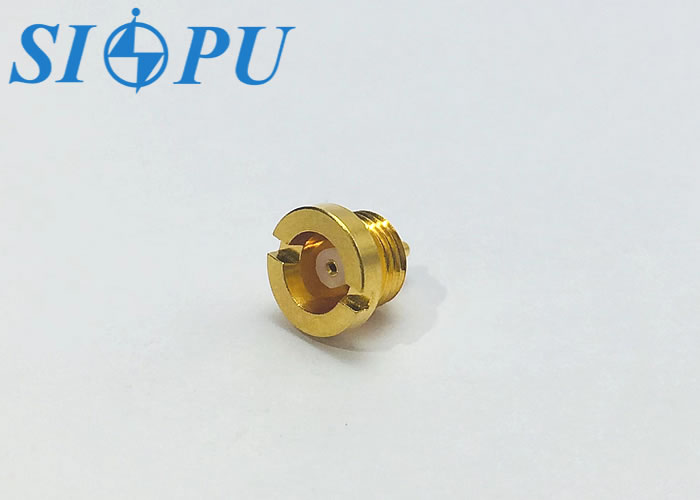

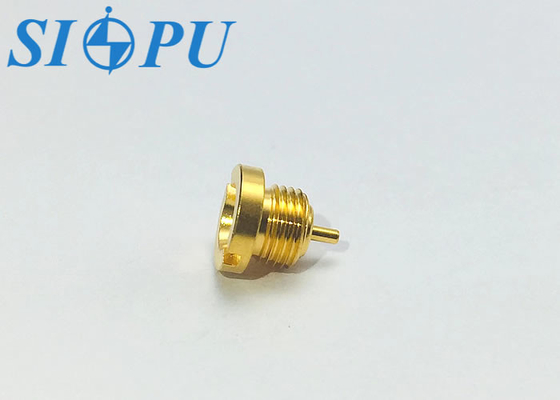

Picture display

MCX Female Microstrip RF Coaxial Connector Threaded MountedMCX Female Microstrip RF Coaxial Connector Threaded Mounted
