Stainless Steel Microstrip SMP Male RF Connector Thread Mounted

Name: Stainless Steel Microstrip SMP Male RF Connector Thread Mounted
Brand: SIPU
Price: 1 USD

Quality Stainless Steel Microstrip SMP Male RF Connector Thread Mounted wholesale

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMP-JYD9G

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 3-6 Weeks

Supply Ability : 100000pcs/year

Product name : Threaded connector

Characteristic impedance : 50Ω

Frequency range : DC-40GHz

Durability : 500 times

Gender : Male

Type : Straight

Material : Stainless steel

Plating : Passivation

High light : Threaded installation

Contact Now

SMP Male Limited Escapement Thread Mount Microstrip RF Connector

Product introduction

SMP series is a new type of blind matching RF coaxial connector, which has the characteristics of small size, light weight, high frequency, fast connection, strong seismic resistance, etc., allowing a certain amount of vector in the axial and radial directions, especially suitable for high-density mating between printed boards, chassis and cabinets.
Applications: antennas, broadband installations, radars, communications, etc.
Product features: limited escapement interface, threaded mounting, small size, light weight, fast connection, excellent electrical performance.

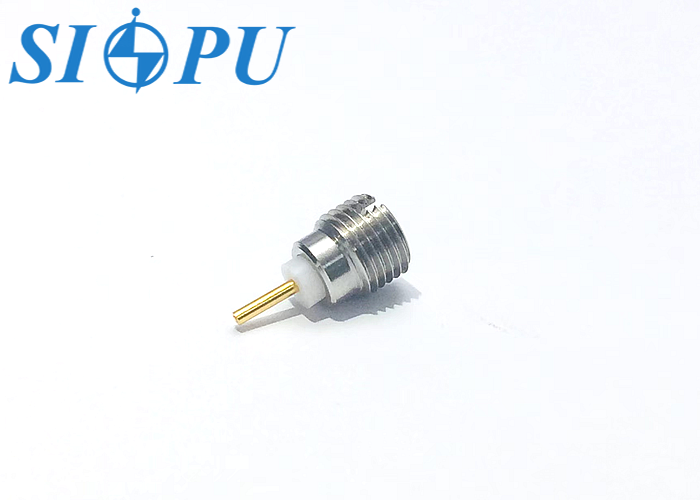

Product appearance

Important technical parameter

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-40GHz
Dielectric withstanding voltage `		500V	VSWR	≤1.1+0.01F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.07√F(GHz)dB
Contact resistance	Center conductor	≤6.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500次
Limited detent	(max) Engagement force	45N	(min) Separation force	9N

Materials and surface treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Stainless steel,passivating

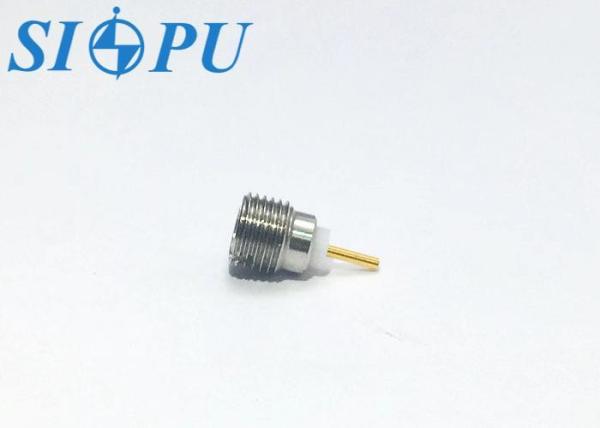

Picture display

Stainless Steel Microstrip SMP Male RF Connector Thread Mounted
