SMP Male Straight Microstrip RF Coaxial Connectors Thread Mounted

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMP-JYD14G

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 3-6 Weeks

Supply Ability : 100000pcs/year

Product name : Microstrip RF coaxial connector

Characteristic impedance : 50Ω

Frequency range : DC-40GHz

Durability : 500 times

Gender : Male

Type : Straight

Material : Stainless steel

Plating : Passivation

High light : Threaded installation microstrip welding

Contact Now

SMP Male Limited Escapement Thread Mount Microstrip RF Coaxial Connectors

Product introduction

SMP series is a new type of blind match RF coaxial connector, which has the characteristics of high frequency, fast connection, strong shock resistance, small size, and allows a certain amount of vector in the axial and radial directions, which provides a good solution for the application of modular dense installation.
Applications: quantum computing, antennas, radar, aerospace, etc.
Product features: limited escapement interface, threaded mounting, small size, light weight, strong environmental resistance, excellent electrical performance, etc.

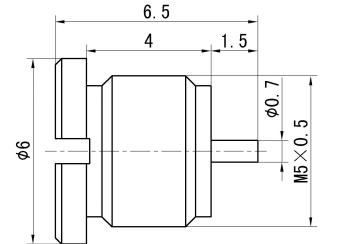

Product appearance

SMP Male Straight Microstrip RF Coaxial Connectors Thread Mounted

Important technical parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-40GHz

Dielectric withstanding voltage

 500V VSWR ≤1.1+0.01F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.07√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Limited detent

(max)

Engagement force

 45N

(min)

Separation force

 9N

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Stainless steel,passivating / /

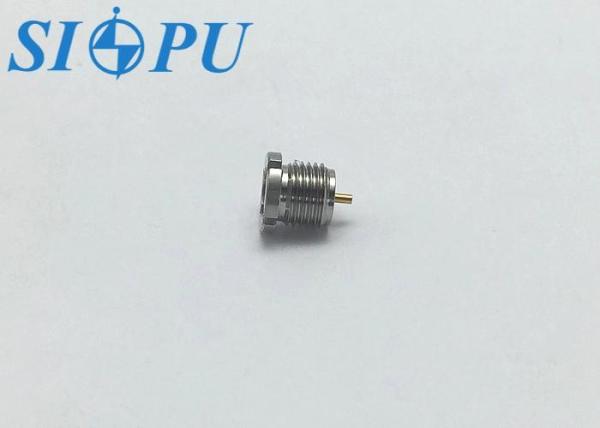

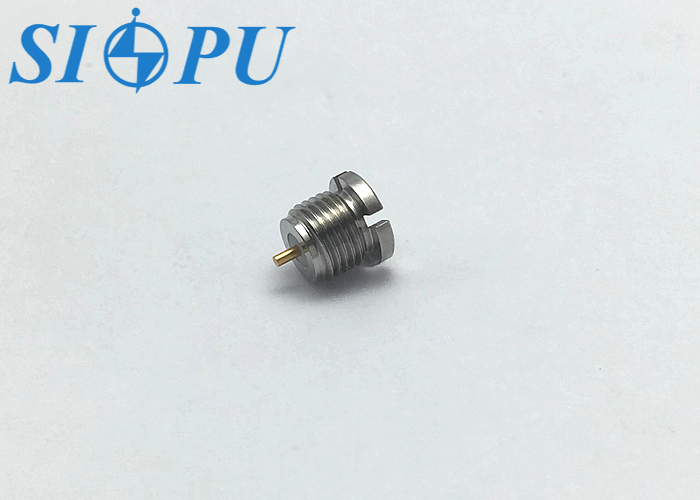

Picture display

SMP Male Straight Microstrip RF Coaxial Connectors Thread Mounted
