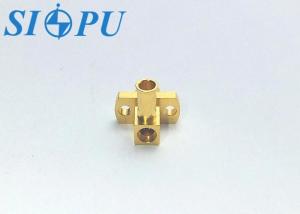

SMP Male Angled Flange Mount RF Coaxial Connector Connect CXN3506 Cable

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMP-JWF3506-S

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 3-6 Weeks

Supply Ability : 100000pcs/year

Product name : Bent two hole flange connector

Dielectric withstanding voltage : 500V

Insulation resistance : ≥5000MΩ

Frequency range : DC-26.5GHz

Durability : 500 times

Gender : Male

Type : Right angle

Material : Brass

Plating : Gold

High light : Bent connection cable

Contact Now

SMP Male Angled Flange Mount RF Coaxial Connector Connect CXN3506 Cable

Product introduction

SMP series is a new type of blind matching RF coaxial connector, which has the characteristics of small size, light weight, high frequency, fast connection and strong seismic resistance, which allows a certain amount of vector in the axial and radial directions, and is suitable for high-density blind mating occasions.
Application: Generally used in radar, aerospace, communications, antennas, etc.
Product features: bent structure, two-hole flange installation, mating CXN3506 RF coaxial cable, with the characteristics of frequency bandwidth, excellent electrical performance and fast connection.

Product appearance

SMP Male Angled Flange Mount RF Coaxial Connector Connect CXN3506 Cable

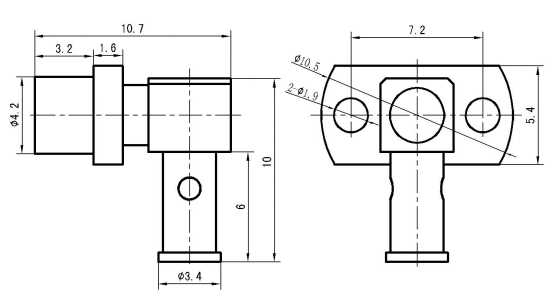

Important technical parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-26.5GHz

Dielectric withstanding voltage

 500V VSWR ≤1.4

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.07√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating / /

Picture display

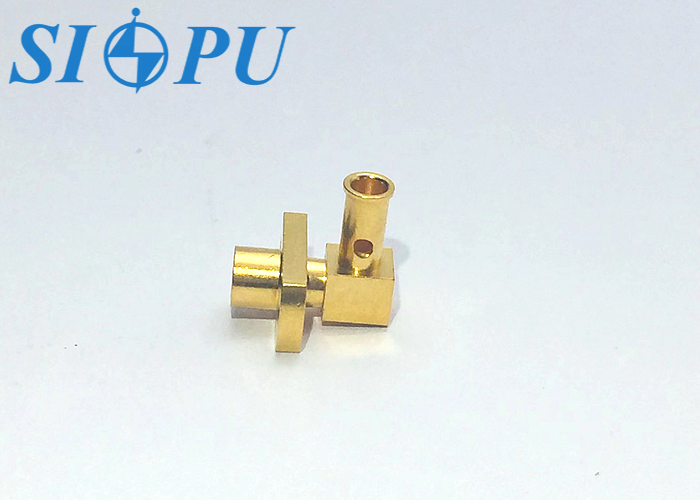

SMP Male Angled Flange Mount RF Coaxial Connector Connect CXN3506 Cable
