SMP Female RF Connector Mates With 2# Semi Rigid / Semi Flexible Cable

  • 1
  • 2

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMP-KWB2-3

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 3-6 Weeks

Supply Ability : 100000pcs/year

Product name : Cable connector

Dielectric withstanding voltage : 500V

Insulation resistance : ≥5000MΩ

Durability : 500 times

Gender : Female

Type : Straight

Material : Beryllium bronze

Plating : Gold

High light : Small size

Contact Now

SMP Female RF Connector Mates With 2# Semi-Rigid/Semi-Flexible Cable

Product introduction

SMP series products are ultra-small plug-in self-locking RF coaxial connectors, which have the characteristics of high frequency, fast connection, strong seismic resistance, and allow a certain amount of vector in the axial and radial directions, especially suitable for high-density blind mating between printed boards, chassis and cabinets.
Applications: Communication base stations, cable assemblies, radar, aerospace
Product features: mating 2# semi-flexible/semi-rigid RF coaxial cable, high frequency, superior electrical performance, easy to weld.

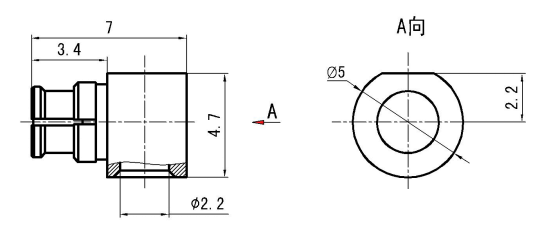

Product appearance

SMP Female RF Connector Mates With 2# Semi Rigid / Semi Flexible Cable

Important technical parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-26.5GHz

Dielectric withstanding voltage

 500V VSWR ≤1.1+0.02F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.07√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability

500times

Materials and surface treatment

Center conductor

 Beryllium copper,gold plating Insulating medium PTFE

Outer conductor

 Beryllium copper,gold plating / /

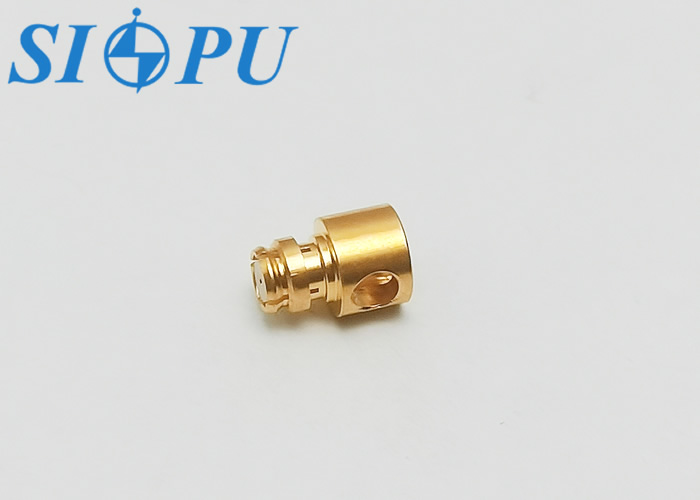

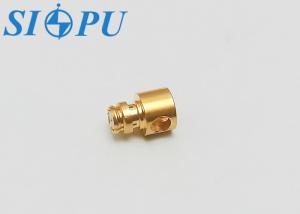

Picture display

SMP Female RF Connector Mates With 2# Semi Rigid / Semi Flexible Cable
