SBMA Female Bent Flange RF Coaxial Connector Connect 2 # Semi Flexible Or Semi Steel Cable

Brand Name : SIPU

Model Number : SBMA-KWFB2G-1

Certification : ISO9001 R0HS

Place of Origin : CHINA

MOQ : 100

Price : DISCUSS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 120000

Delivery Time : 6-8works

Packaging Details : Carton

Product name : SBMA female bent flange installation RF coaxial connector Connect 2 # semi flexible or semi steel cable

Gender : Famela

Type : Right angle

Material : Brass

Plating : Gold

Durability : 500 times

Insulating medium : PTFE

High light : Cable connector

Contact Now

SBMA Female Bent Flange Installation RF Coaxial Connector Connect 2 # Semi Flexible Or Semi Steel Cable

Product introduction

SBMA is a new type of blind plug-in low-power RF coaxial connector, which is a miniaturized product of BMA series connectors and is conducive to the modularization of the entire system.
Application scope: Suitable for blind fitting of cabinets and chassis.
Product features: Two hole flange installation, the flange is a floating structure, compatible with 2 # semi flexible or semi steel cables, with the characteristics of bandwidth, small volume, and floating connection.

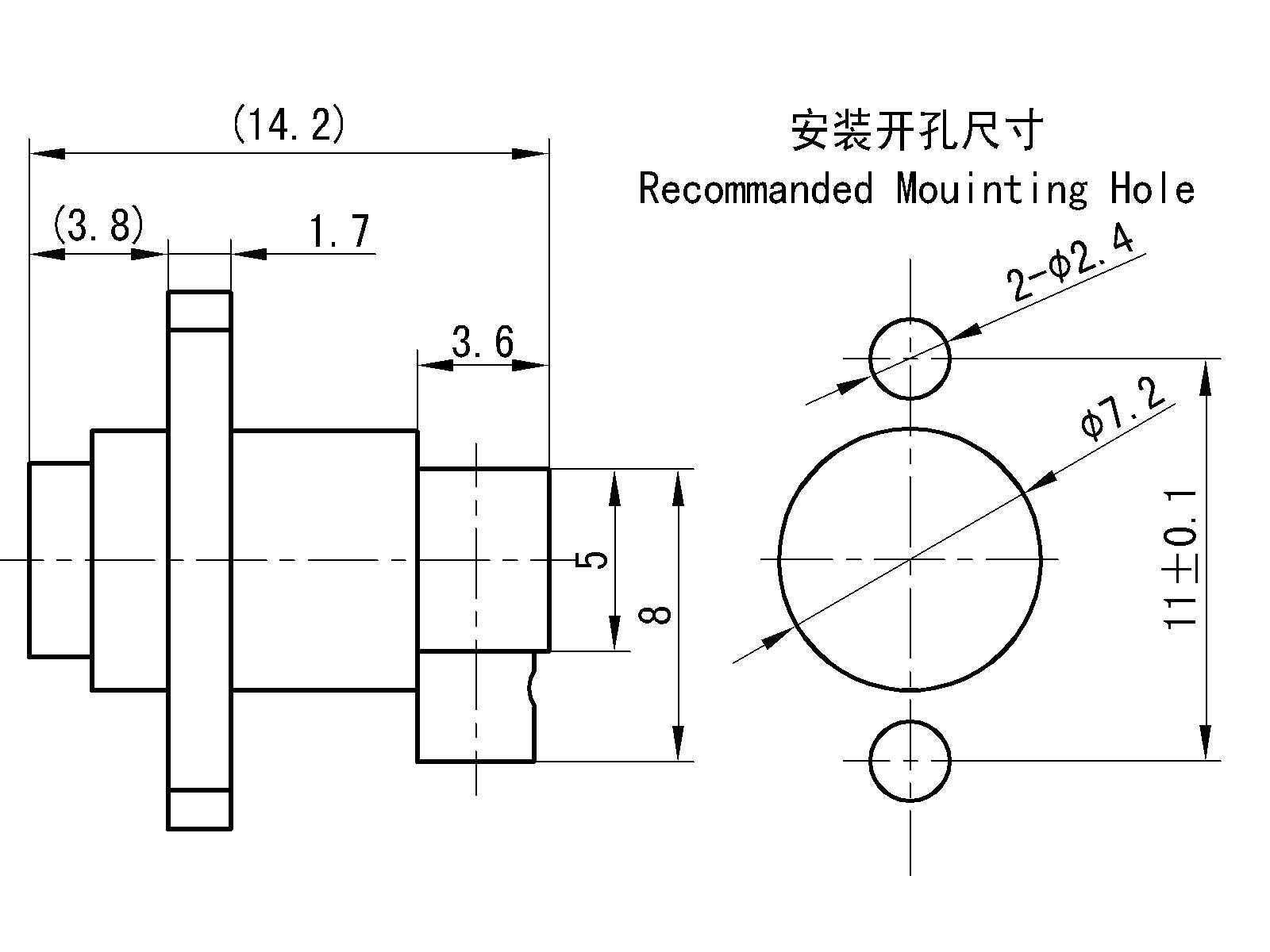

Product specifications

SBMA Female Bent Flange RF Coaxial Connector Connect 2 # Semi Flexible Or Semi Steel Cable

Important technical parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-18GHz

Dielectric withstanding voltage

 675V

VSWR

 ≤1.06+0.015F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

 ≤0.08√F(GHz)dB

Contact resistance

Center conductor

 ≤8.0mΩ

Mechanical property

Outer conductor

 ≤3.0mΩ

Durability

 500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold

Insulating medium

PTFE

Outer conductor

Brass,gold plating

Sealing ring

/

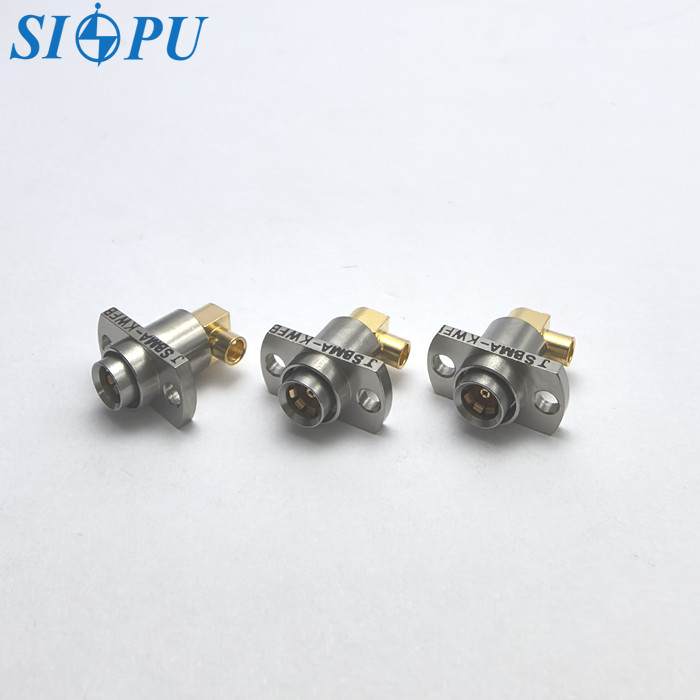

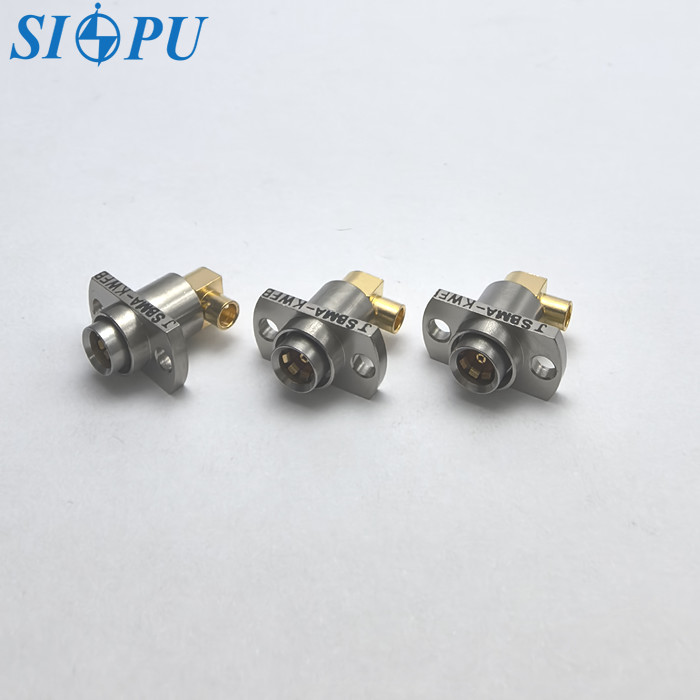

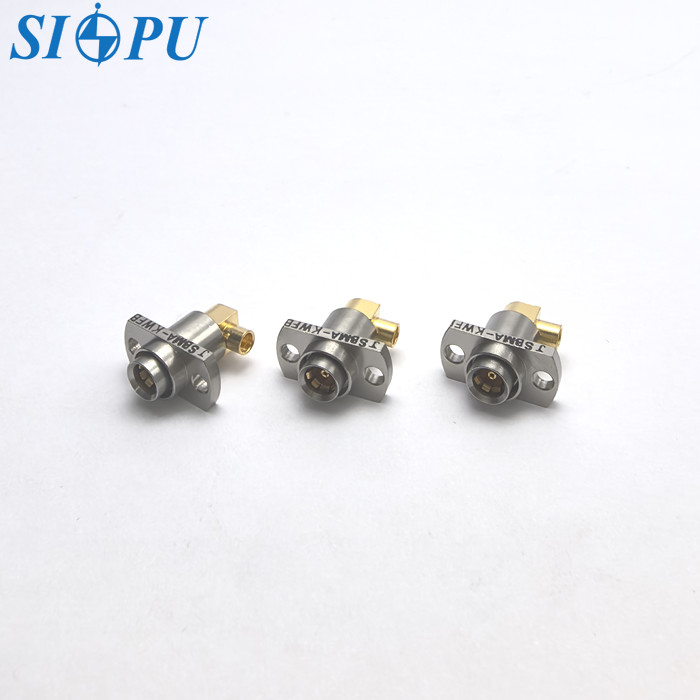

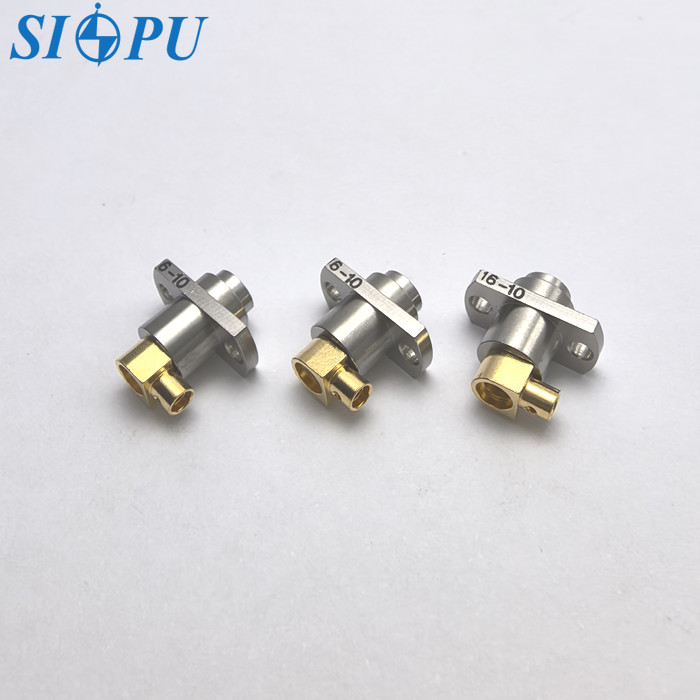

Picture display

SBMA Female Bent Flange RF Coaxial Connector Connect 2 # Semi Flexible Or Semi Steel CableSBMA Female Bent Flange RF Coaxial Connector Connect 2 # Semi Flexible Or Semi Steel CableSBMA Female Bent Flange RF Coaxial Connector Connect 2 # Semi Flexible Or Semi Steel CableSBMA Female Bent Flange RF Coaxial Connector Connect 2 # Semi Flexible Or Semi Steel Cable
