SBMA Male Flange Mounted RF Coaxial Connector For 1 # Semi Steel Or Semi Flexible Cable

Brand Name : SIPU

Model Number : SBMA-JFB1G-T1

Certification : ISO9001 R0HS

Place of Origin : CHINA

MOQ : 100

Price : DISCUSS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 120000

Delivery Time : 6-8works

Packaging Details : Carton

Product name : SBMA female Ultra fine cable connector

Gender : Mela

Type : Type

Material : Stainless

Plating : Steel，passivating

Durability : 500 times

Insulating medium : PTFE

High light : Cable connector

Contact Now

SBMA Male Flange Mounted RF Coaxial Connector For Connecting 1 # Semi Steel Or Semi Flexible Cable

Product introduction

SBMA is a new type of low-power blind plug RF coaxial connector, which is a miniaturized product of BMA series connectors. It has the characteristics of small size and high reliability, which is conducive to the modularization of the entire system.
Application scope: Suitable for blind fitting of chassis and cabinets.
Product features: SBMA male connector, two hole flange installation, compatible with 1 # semi steel or semi flexible cable, with the characteristics of small size, bandwidth, and easy connection.

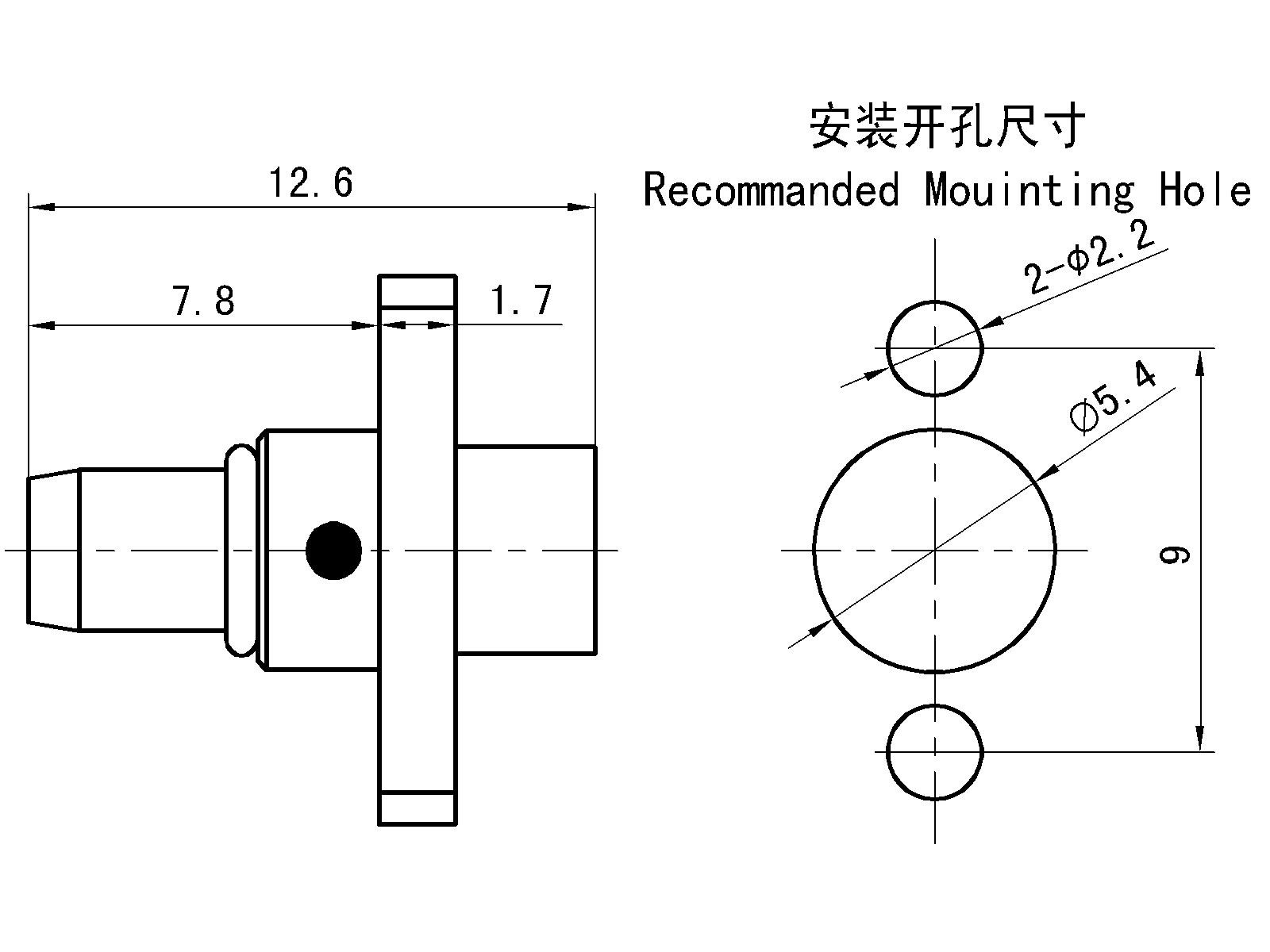

Product specifications

SBMA Male Flange Mounted RF Coaxial Connector For 1 # Semi Steel Or Semi Flexible Cable

Important technical parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-18GHz

Dielectric withstanding voltage

 675V

VSWR

 ≤1.05+0.0125F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

 ≤0.05√F(GHz)dB

Contact resistance

Center conductor

 ≤8.0mΩ

Mechanical property

Outer conductor

 ≤3.0mΩ

Durability

 500times

Materials and surface treatment

Center conductor

Bronze.gold plating

Insulating medium

PTFE

Outer conductor

Stainless

Sealing ring

/

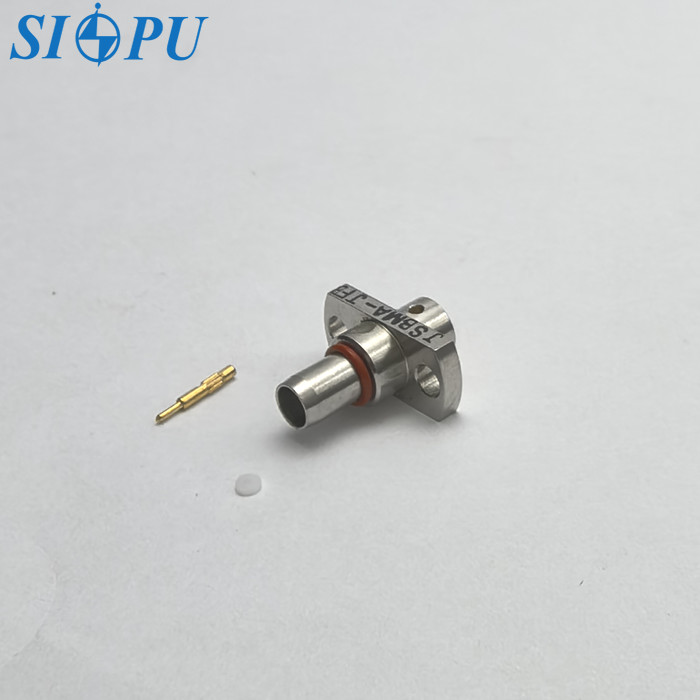

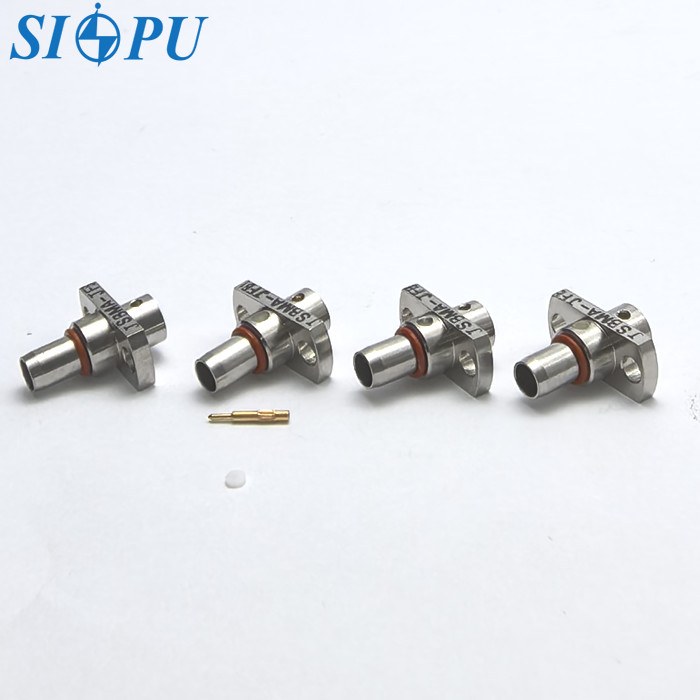

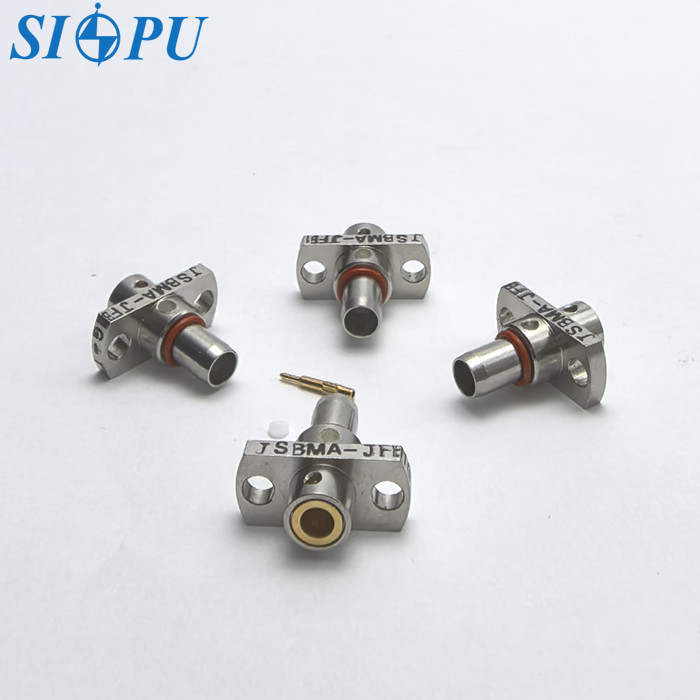

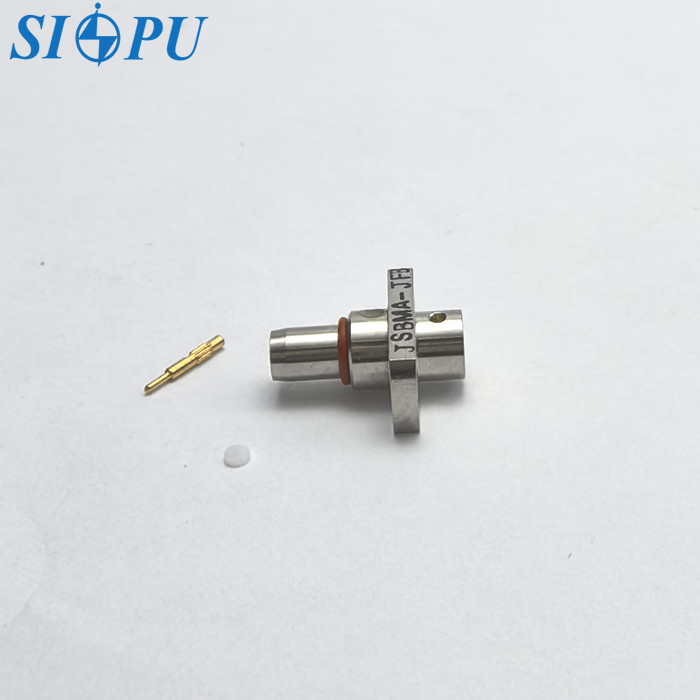

Picture display

SBMA Male Flange Mounted RF Coaxial Connector For 1 # Semi Steel Or Semi Flexible CableSBMA Male Flange Mounted RF Coaxial Connector For 1 # Semi Steel Or Semi Flexible CableSBMA Male Flange Mounted RF Coaxial Connector For 1 # Semi Steel Or Semi Flexible CableSBMA Male Flange Mounted RF Coaxial Connector For 1 # Semi Steel Or Semi Flexible CableSBMA Male Flange Mounted RF Coaxial Connector For 1 # Semi Steel Or Semi Flexible Cable
