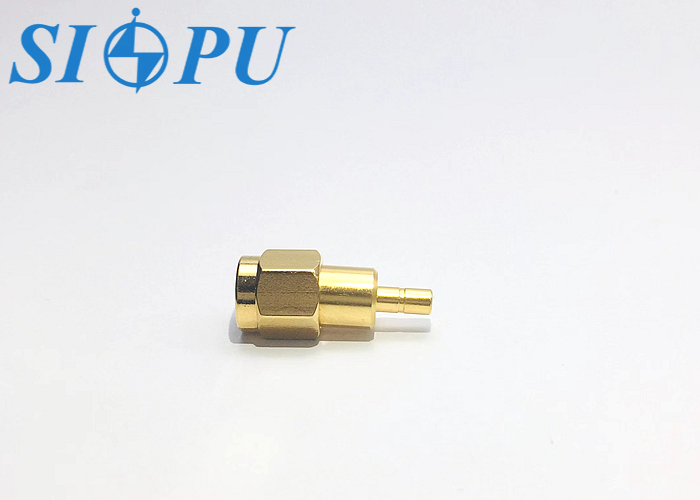

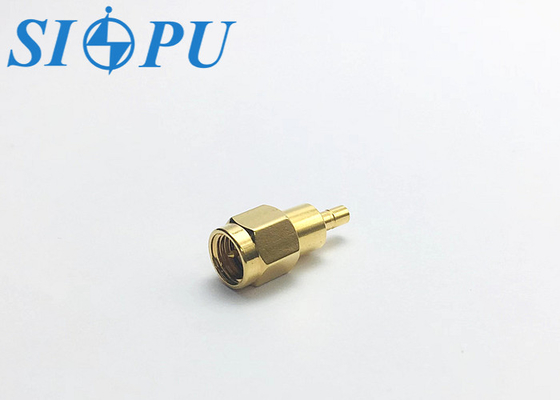

SMA Male To SSMB Male RF Coaxial Adapter Brass Gold Plated SMA(J)-SSMB-(J)

  • 1
  • 2
  • 3

Brand Name : SIPU

Model Number : SMA/SSMB-JJ

Certification : ISO9001 RoHS

Place of Origin : CHINA

MOQ : 100

Price : Discuss

Payment Terms : L/C,T/T,Western Union

Packaging Details : Carton

Delivery Time : 6-8weekd

Supply Ability : 120000pcs/year

Product name : SMA male to SSMB male brass gold-plated RF coaxial adapter

Material : Brass

Plating : Gold

Durability 500 times : 500 times

High light : One end is compatible with SMA female connector, and the other end is compatible with SSMB female connector

Contact Now

SMA Male To SSMB Male Brass Gold-plated RF Coaxial Adapter SMA(J)-SSMB-(J)

Product introduction

The RF coaxial adapters of various specifications are the guarantee for correctly connecting connectors within the same series and different series, mainly serving as a bridge connection.
Application scope: Commonly used in system conversion and connection, and is commonly used in testing instruments and cables.
Product features: One end is compatible with SMA female connector, and the other end is compatible with SSMB female connector, with the characteristics of long service life, small size, and excellent performance.

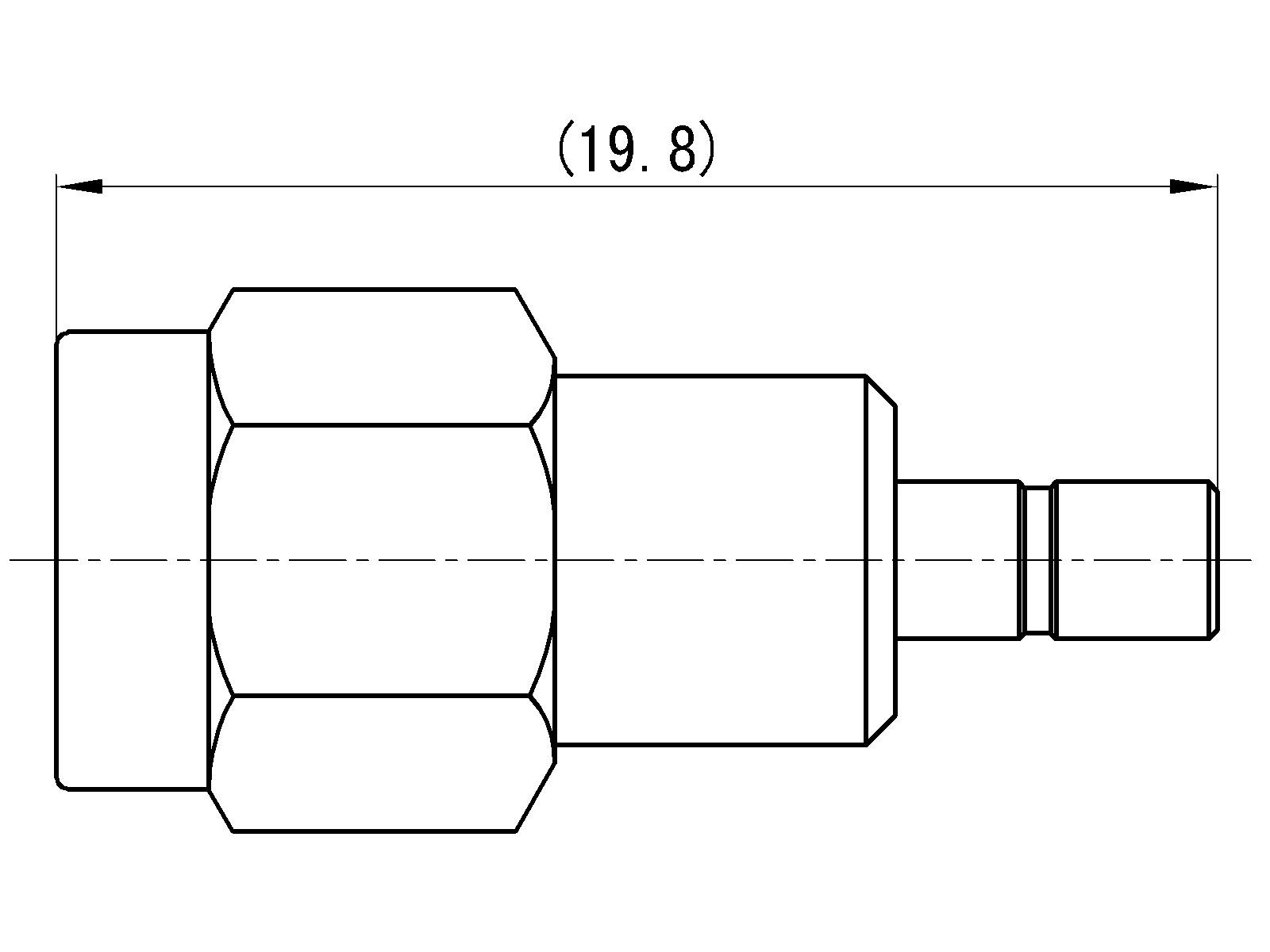

Product appearance

SMA Male To SSMB Male RF Coaxial Adapter Brass Gold Plated SMA(J)-SSMB-(J)

Important technical parameter

Electrical property

Temperature range-65～+125℃

Characteristic impedance

50ΩFrequency rangeDC-3GHz

Dielectric withstanding voltage

500VVSWR≤1.35

Insulation resistance

≥1000MΩInsertion loss

≤0.06√F(GHz)dB

Contact resistance

Center conductor≤5.0mΩMechanical property
Outer conductor≤2.5mΩDurability500times

Materials and surface treatment

Center conductor

bronze,gold platingInsulating mediumPTFE

Outer conductor

Brass,gold platingSealing ring/

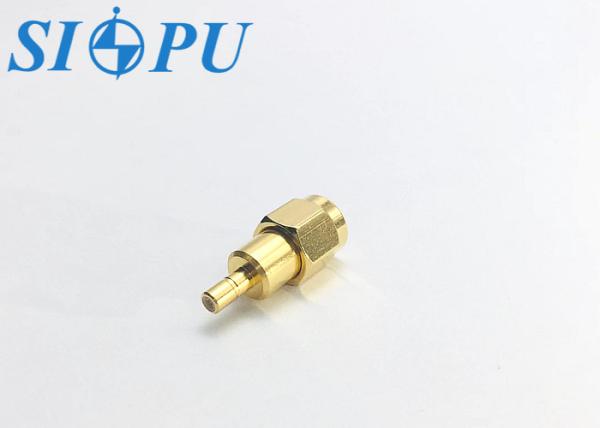

Picture display

SMA Male To SSMB Male RF Coaxial Adapter Brass Gold Plated SMA(J)-SSMB-(J)SMA Male To SSMB Male RF Coaxial Adapter Brass Gold Plated SMA(J)-SSMB-(J)
