2.92 Male To 2.4 Female Coaxial RF Adapter 2.92(J)-2.4(K)

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C,T/T,Western Union

Model Number : 2.92/2.4-JK

Certification : ISO9001 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weekd

Supply Ability : 120000pcs/year

Product name : 2.92 male to 2.4 female RF coaxial adapter

Material : Brass

Plating : Gold

Durability 500 times : 500 times

High light : The two ends are mated with 2.92 female and 2.4 male series connectors respectively

Contact Now

2.92 Male To 2.4 Female RF Coaxial Adapter 2.92(J)-2.4(K)

Product introduction

Each type of RF coaxial adapter is the guarantee to realize the correct transfer of connectors within the same series and between different series, and generally plays the role of bridge connection.
Scope of application: It is used for the conversion and connection of the system, and is generally used in test instruments and test cables.
Product features: The two ends are mated with 2.92 female and 2.4 male series connectors respectively, which has the characteristics of excellent performance, high reliability and small size.

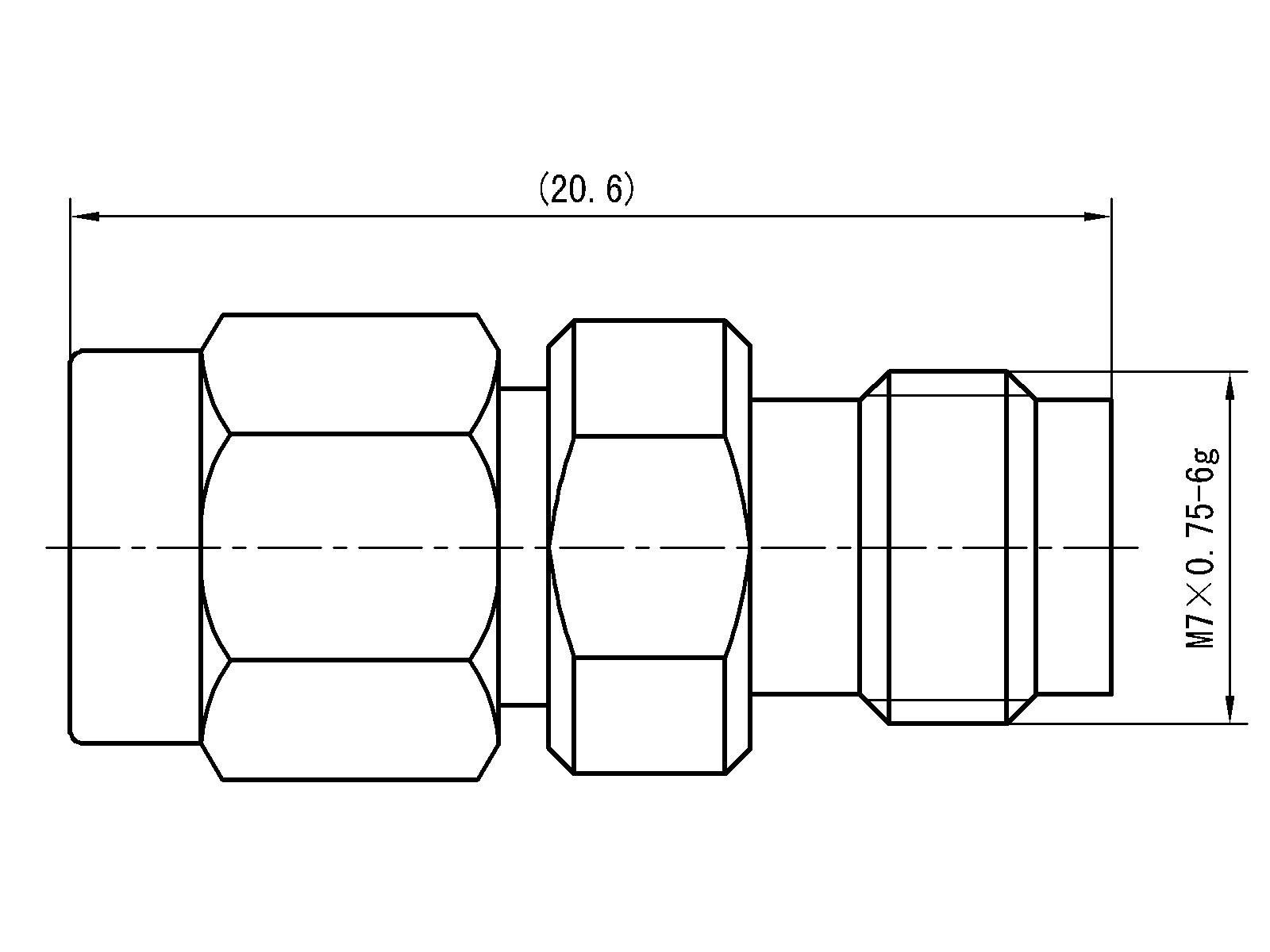

Product appearance

2.92 Male To 2.4 Female Coaxial RF Adapter 2.92(J)-2.4(K)

Important technical parameter

Electrical property

Temperature range-65～+125℃

Characteristic impedance

50ΩFrequency rangeDC-40GHz

Dielectric withstanding voltage

500VVSWR≤1.05+0.008F(GHz)

Insulation resistance

≥5000MΩInsertion loss

≤0.05√F(GHz)dB

Contact resistance

Center conductor≤4.0mΩMechanical property
Outer conductor≤2.5mΩDurability500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold platingInsulating mediumPEI

Outer conductor

Brass,gold platingSealing ringSilicon rubber

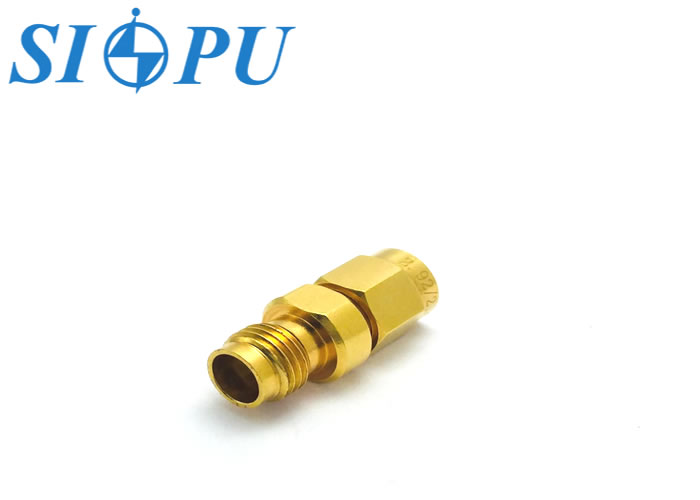

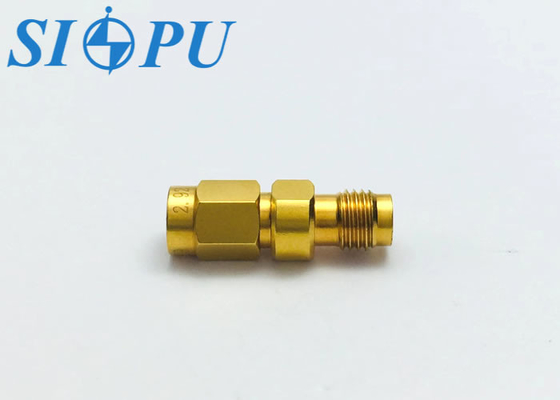

Picture display

2.92 Male To 2.4 Female Coaxial RF Adapter 2.92(J)-2.4(K)2.92 Male To 2.4 Female Coaxial RF Adapter 2.92(J)-2.4(K)
