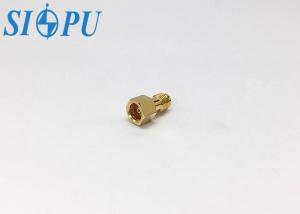

BMA Female To SMA Female Coax RF Adapter BMA(K)-SMA-(K)

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C,T/T,Western Union

Model Number : BMA/SMA-KK

Certification : ISO9001 RoHS

Supply Ability : 120000pcs/year

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weekd

Product name : BMA Female to SMA Female RF Coax Adapter

Material : Brass

Plating : Gold

Durability 500 times : 500 times

High light : The two ends are plugged with BMA male and SMA male series connectors

Contact Now

BMA Female To SMA Female RF Coax Adapter BMA(K)-SMA-(K)

Product Introduction

RF coaxial adapters of different specifications are the guarantee for the correct transfer of connectors between different series and within the same series, and generally play the role of bridge connection.
Scope of application: It is often used for system connection and conversion, and is generally used in test cables and test instruments.
Product features: The two ends are plugged with BMA male and SMA male series connectors, with high frequency bandwidth, excellent electrical performance and high reliability.

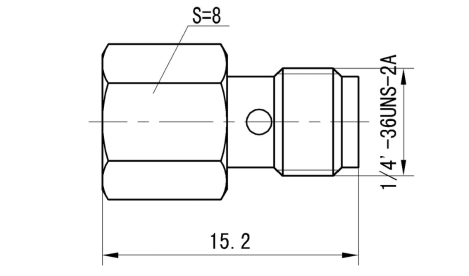

Product appearance

BMA Female To SMA Female Coax RF Adapter BMA(K)-SMA-(K)

technical parameter

Electrical property

Temperature range

-65～+125℃

Characteristic impedance

50Ω

Frequency range

DC-18GHz

Dielectric withstanding voltage

1000V

VSWR

≤1.08+0.012F(GHz)

Insulation resistance

≥5000MΩ

Insertion loss

≤0.05√F(GHz)dB

Contact resistance

Center conductor

≤3.0mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500 times

Materials and surface treatmen

Center conductorBeryllium bronze,gold platingInsulating mediumPTFE

Outer conductor

Brass,gold plating

//

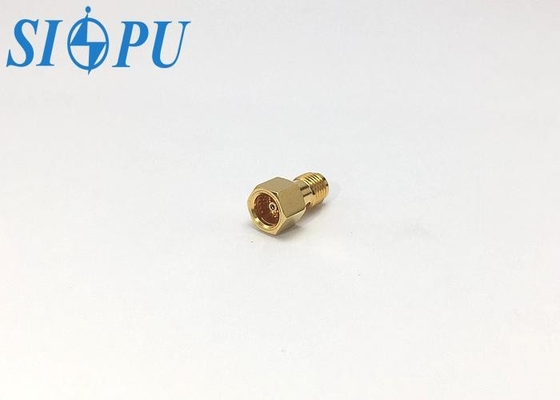

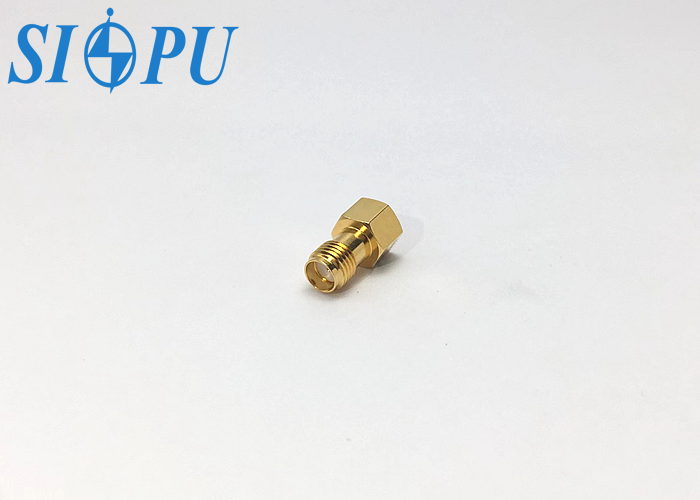

Picture display

BMA Female To SMA Female Coax RF Adapter BMA(K)-SMA-(K)BMA Female To SMA Female Coax RF Adapter BMA(K)-SMA-(K)
