RF Coax Cable Adapter for SMA Female To SSMB Female

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C,T/T,Western Union

Model Number : SMA/SSMB-KK

Certification : ISO9001 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weekd

Supply Ability : 120000pcs/year

Product name : SMA Female to SSMB Female RF Coax Adapter

Material : Brass

Plating : gold

Durability 500 times : 500 times

High light : One end is plugged with SMA male connector, and one end is mated with SSMB male connector

Contact Now

SMA Female To SSMB Female RF Coax Adapter

Product introduction

RF coaxial adapters of various specifications are the guarantee to realize the correct transfer of connectors in different series and the same series, mainly playing the role of bridge connection.
Scope of application: It is commonly used in the connection and conversion of the system, and is usually used in test cables and test instruments.
Product features: One end is plugged with SMA male connector, and one end is mated with SSMB male connector, which has the characteristics of long life, excellent electrical performance and small size.

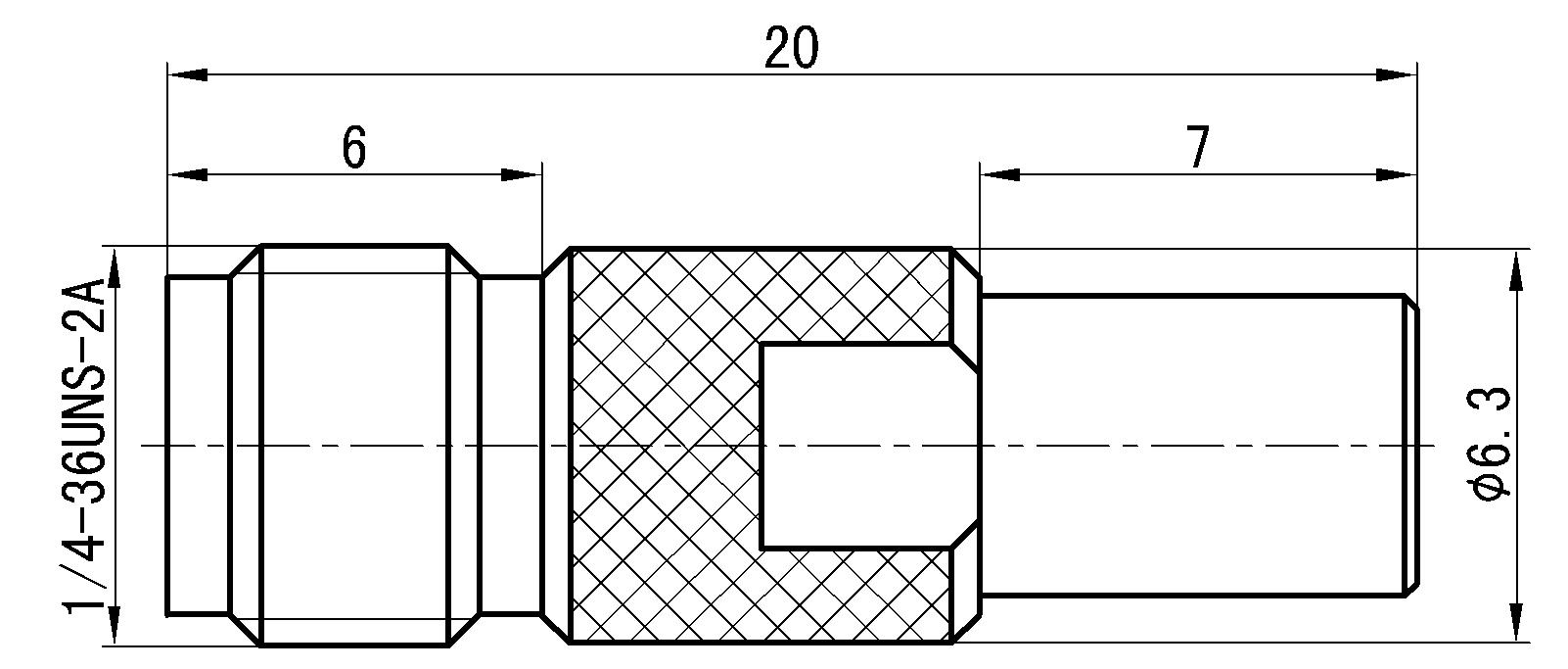

Product appearance

RF Coax Cable Adapter for SMA Female To SSMB Female

Important technical parameter

Electrical property

Temperature range-55～+125℃

Characteristic impedance

50ΩFrequency rangeDC-18GHz

Dielectric withstanding voltage

1000VVSWR≤1.35

Insulation resistance

≥1000MΩInsertion loss

≤0.06√F(GHz)dB

Contact resistance

Center conductor≤5.0mΩMechanical property
Outer conductor≤2.5mΩDurability500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold platingInsulating mediumPTFE

Outer conductor

Brass,gold plating//

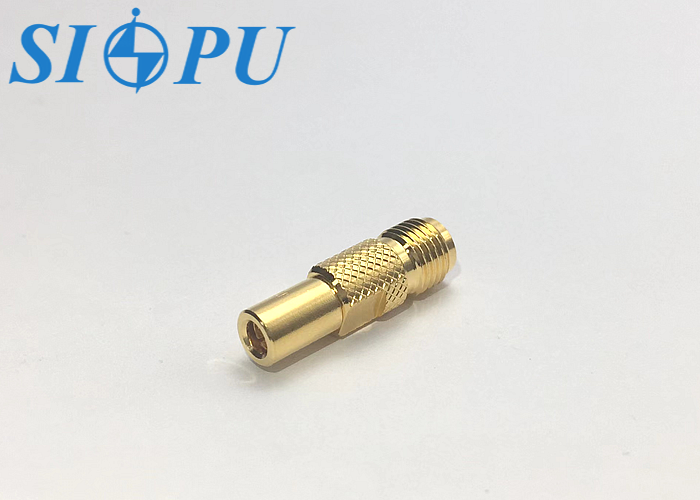

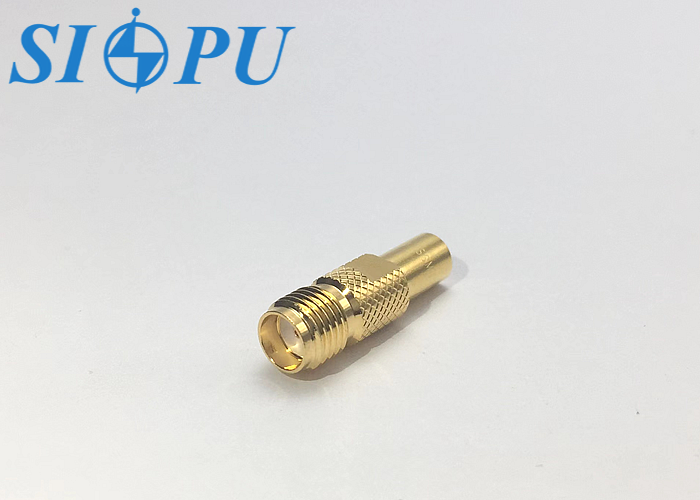

Picture display

RF Coax Cable Adapter for SMA Female To SSMB FemaleRF Coax Cable Adapter for SMA Female To SSMB Female
