SMA Female to SSMA Female RF Coaxial Adapter SMA(K)-SSMA(K)

Brand Name : SIPU

Model Number : SMA/SSMA-KK

Certification : ISO9001 RoHS

Place of Origin : CHINA

MOQ : 100

Price : Discuss

Payment Terms : L/C,T/T,Western Union

Packaging Details : Carton

Delivery Time : 6-8weekd

Supply Ability : 120000pcs/year

Product name : SMA Female to SSMA Female RF Coaxial Adapter

Material : Brass

Plating : Gold

Durability 500 times : 500 times

High light : The two ends are respectively plugged into SMA male and SSMA female series connectors

Contact Now

SMA Female to SSMA Female RF Coaxial Adapter SMA(K)-SSMA(K)

Product introduction

RF coaxial adapters of various specifications ensure the correct transfer of connectors between different series and within the same series, generally serving as a bridge connection.
Application scope: Used for system conversion and connection, generally applied in testing cables and testing instruments.
Product features: The two ends are respectively plugged into SMA male and SSMA female series connectors, which have the characteristics of high reliability, small size, and excellent electrical performance.

Product appearance

SMA Female to SSMA Female RF Coaxial Adapter SMA(K)-SSMA(K)

Important technical parameter

Electrical property

Temperature range-65～+125℃

Characteristic impedance

50ΩFrequency rangeDC-18GHz

Dielectric withstanding voltage

750VVSWR≤1.05+0.012F(GHz)

Insulation resistance

≥5000MΩInsertion loss

≤0.05√F(GHz)dB

Contact resistance

Center conductor≤6.0mΩMechanical property
Outer conductor≤2.5mΩDurability500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold platingInsulating mediumPTFE

Outer conductor

Brass,gold platingSealing ring/

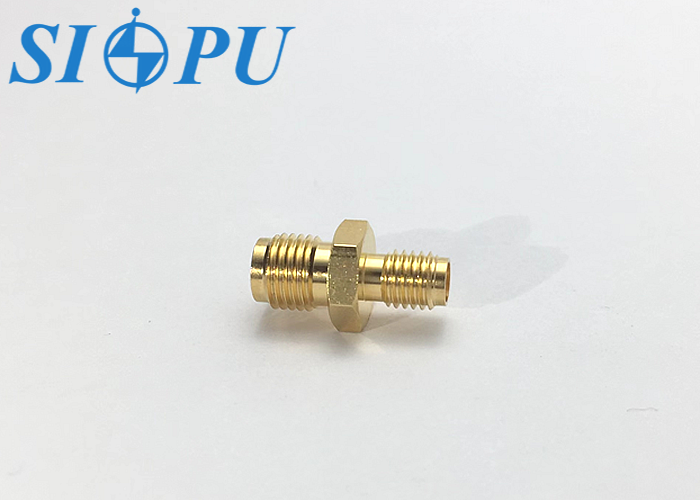

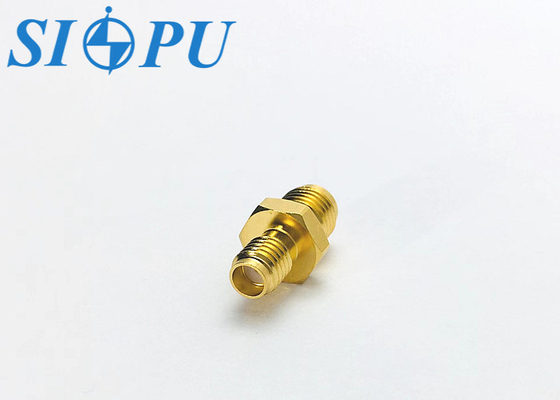

Picture display

SMA Female to SSMA Female RF Coaxial Adapter SMA(K)-SSMA(K)SMA Female to SSMA Female RF Coaxial Adapter SMA(K)-SSMA(K)
