BNC Male To SMA Male RF Coaxial Adapter BNC(J)-SMA-(J)

  • 1
  • 2
  • 3

Brand Name : SIPU

Model Number : BNC/SMA-JJ

Certification : ISO9001 RoHS

Place of Origin : CHINA

MOQ : 100

Price : Discuss

Payment Terms : L/C,T/T,Western Union

Packaging Details : Carton

Delivery Time : 6-8weekd

Supply Ability : 120000pcs/year

Product name : BNC male to SMA male RF coaxial adapter

Material : Brass

Plating : Nickle

Durability 500 times : 500 times

High light : The two ends are respectively plugged into BNC female head and SMA female head series connectors

Contact Now

BNC Male To SMA Male RF Coaxial Adapter BNC(J)-SMA-(J)

Product introduction

RF coaxial adapters of different specifications ensure the correct transfer of connectors between different series and within the same series, generally serving as a bridge connection.
Application scope: Often used for system connection and conversion, generally applied in video conversion, testing cables, and testing instruments.
Product features: The two ends are respectively plugged into BNC female head and SMA female head series connectors, which have excellent electrical performance, strong environmental resistance, and high reliability of bayonet connection.

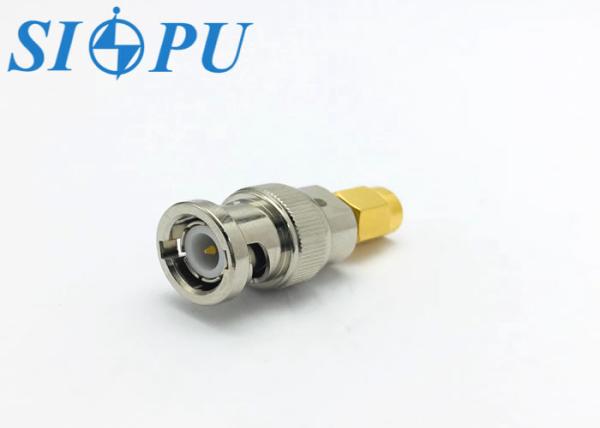

Product appearance

BNC Male To SMA Male RF Coaxial Adapter BNC(J)-SMA-(J)

Important technical parameter

Electrical property

Temperature range-65～+125℃

Characteristic impedance

50ΩFrequency rangeDC-4GHz

Dielectric withstanding voltage

1000VVSWR≤1.3

Insulation resistance

≥5000MΩInsertion loss

≤0.06√F(GHz)dB

Contact resistance

Center conductor≤3.0mΩMechanical property
Outer conductor≤2.0mΩDurability500times

Materials and surface treatment

Center conductor

Brass,gold platingInsulating mediumPTFE

Outer conductor

Brass,nickel platingSealing ringSilicon rubber

Picture display

BNC Male To SMA Male RF Coaxial Adapter BNC(J)-SMA-(J)BNC Male To SMA Male RF Coaxial Adapter BNC(J)-SMA-(J)
