Microstrip RF Coaxial BNC Female Connectors Thread Mounted

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : Gender

Model Number : BNC-50KYDL

Certification : ISO9001 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Product name : BNC female thread-mount microstrip RF coaxial connector

Gender : Female

Type : Straight

Material : Brass

Plating : Nickle

Durability : 500 times

Insulating medium : PTFE

High light : Threaded installation microstrip connector

Contact Now

BNC Female Thread-Mount Microstrip RF Coaxial Connectors

Product introduction

BNC series is a bayonet RF coaxial connector developed and produced in accordance with MIL-C-39012/16-24. It has the characteristics of fast connection and reliable contact, and can be interchangeable with similar products in the world. It is widely used in radio equipment and electronic instruments to connect RF coaxial cables.
Application: Mainly used in electronic instruments, transmission of analog or digital video signals and radio equipment.
Product features: thread-mounted microstrip connector, good vibration resistance, reliable contact, fast connection, etc.

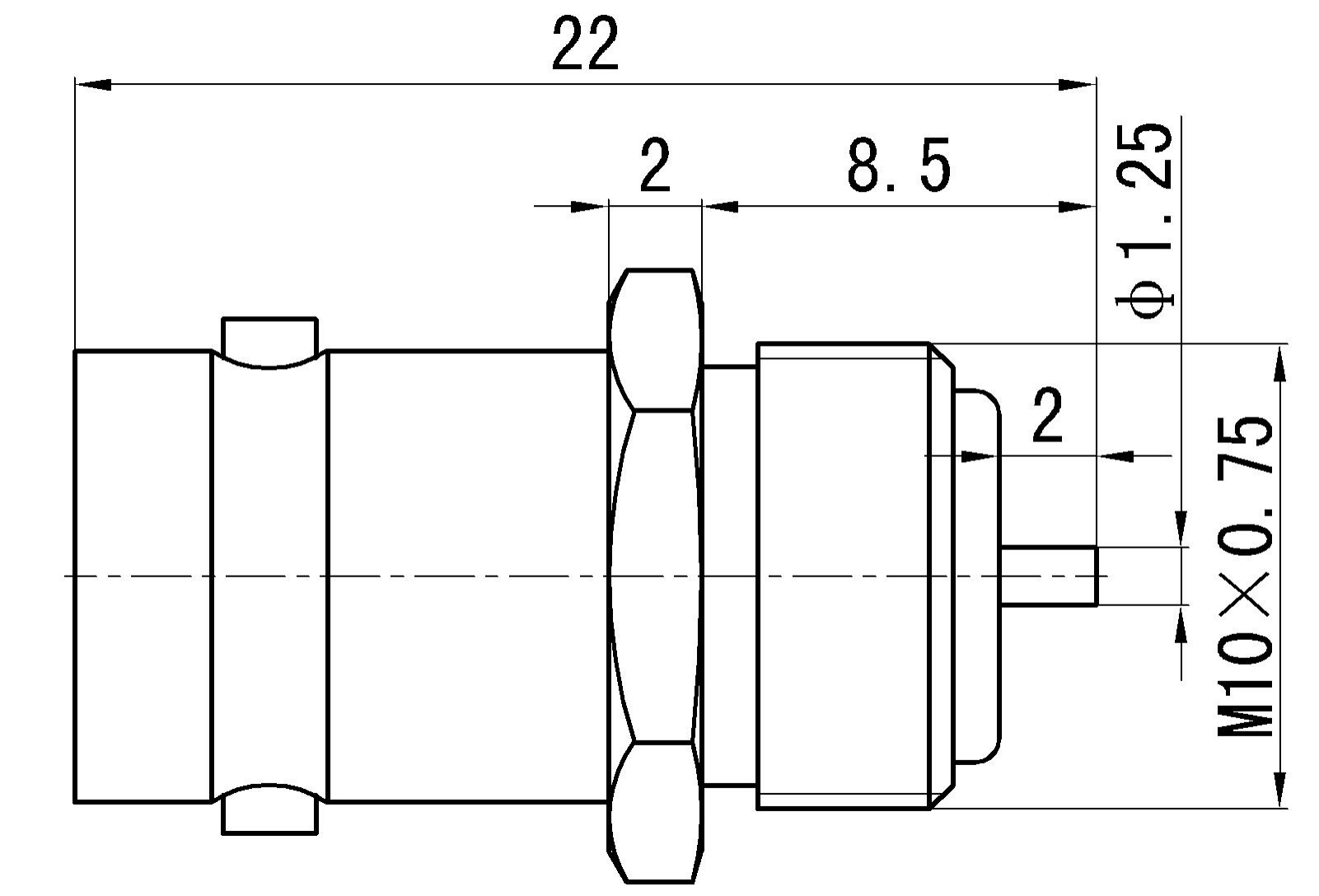

Product specifications

Microstrip RF Coaxial BNC Female Connectors Thread Mounted

Important technical parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,nickel plating / /

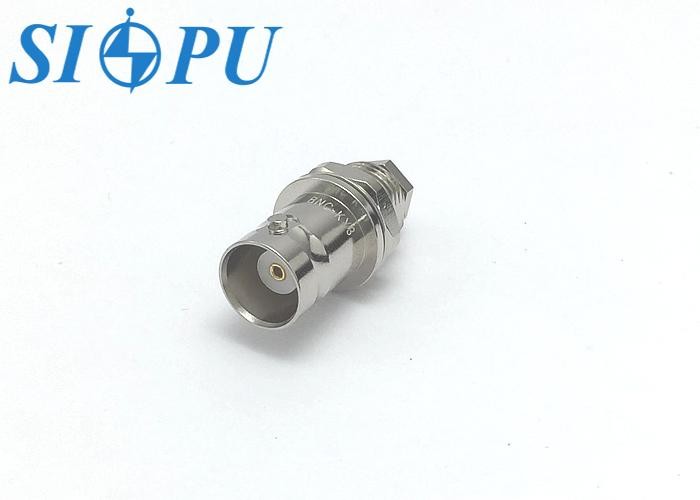

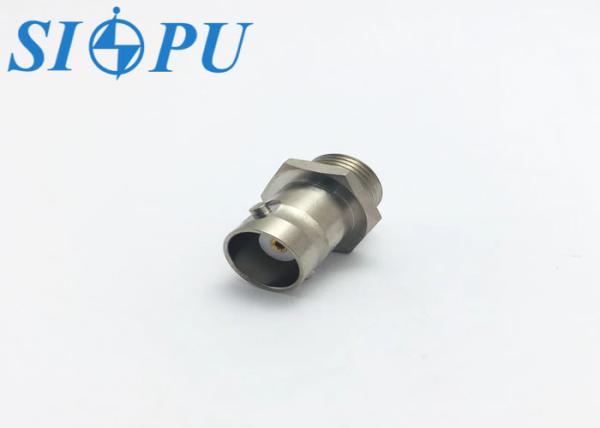

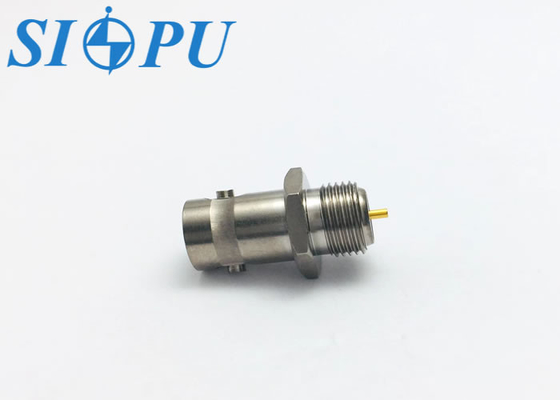

Picture display

Microstrip RF Coaxial BNC Female Connectors Thread MountedMicrostrip RF Coaxial BNC Female Connectors Thread Mounted
