Microstrip Female RF BNC Connector Flange Mounted

Name: Microstrip Female RF BNC Connector Flange Mounted
Brand: SIPU
Price: 1 USD

Quality Microstrip Female RF BNC Connector Flange Mounted wholesale

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : Gender

Model Number : BNC-50KFD13

Certification : ISO9001 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Product name : BNC female flange mount microstrip RF connector

Gender : Female

Type : Straight

Material : Brass

Plating : Nickle

Insulating medium : PTFE

Durability : 500 times

High light : Four hole installation connector, reliable contact

Contact Now

BNC Female Flange Mount Microstrip RF Connector

Product introduction

The BNC series is a bayonet type RF coaxial connector developed and produced in accordance with MIL-C-39012/16-24. Can be exchanged with similar products internationally. Characterized by fast connection and reliable contact

Application scope: Widely used in the transmission of wireless equipment, electronic instruments, analog or digital video signals.

Product features: Four hole flange mounted microstrip socket, fast connection, reliable contact, good vibration resistance, etc.

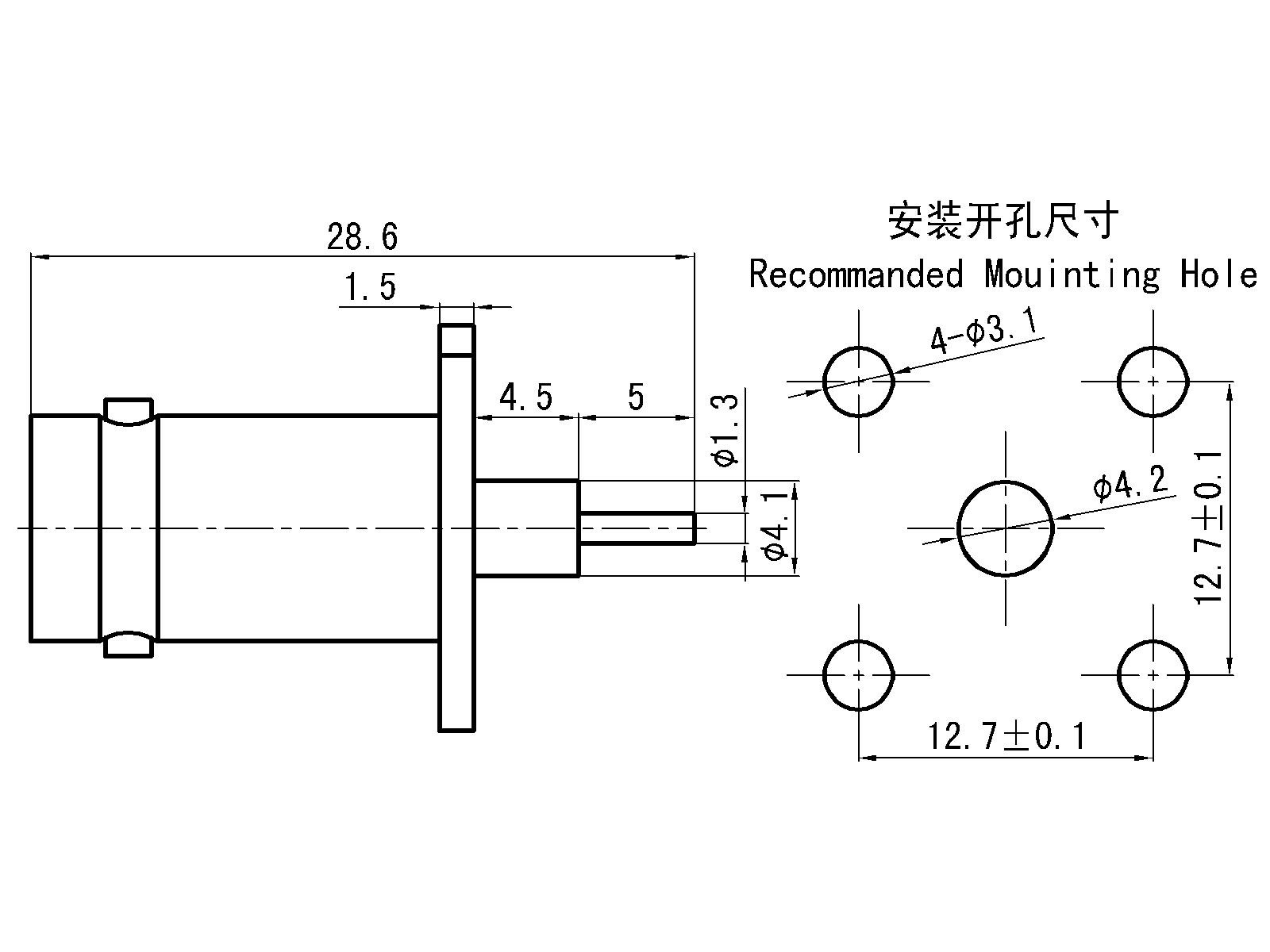

Product specifications

Microstrip Female RF BNC Connector Flange Mounted

Important technical parameters

Electrical property			Temperature range	-55～+165℃
Characteristic impedance		50Ω	Frequency range	DC-4GHz
Dielectric withstanding voltage		1500V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤2.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤0.2mΩ	Durability	500times

Materials and surface treatment

Center conductor

Bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,nickel plating

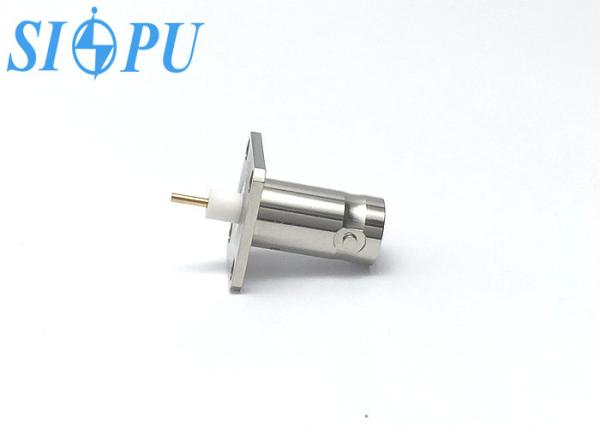

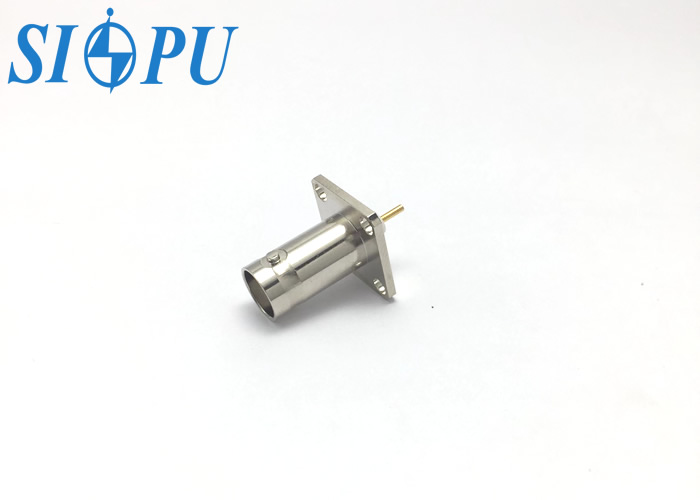

Picture display

Microstrip Female RF BNC Connector Flange Mounted

Product Tags:

Flange Mount RF BNC Connector

Microstrip RF BNC Connector

RF BNC Female Connector

Microstrip Female RF BNC Connector Flange Mounted Images
