Male Straight RF BNC Connector Mates With RG 142/U Coaxial Cable

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : Gender

Model Number : BNC-J5-2

Certification : ISO9001 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Product name : BNC male straight RF connector

Gender : Male

Type : Straight

Material : Brass

Plating : Nickle

Insulating medium : PTFE

Durability : 500 times

High light : Straight structure, mating RG 142/U RF coaxial cable or other cables of the same specification

Contact Now

BNC Male Straight RF Connector Mates With RG 142/U Coaxial Cable

Product introduction

BNC series is a bayonet RF coaxial connector developed and produced in accordance with MIL-C-39012/16-24. It has the characteristics of fast connection and reliable contact, and can be interchangeable with similar products in the world.
Applications: RF coaxial cables are connected to radio equipment and electronic instruments.
Product features: straight structure, mating RG 142/U RF coaxial cable or other cables of the same specification, bayonet connection, frequency up to 4GHz, etc.

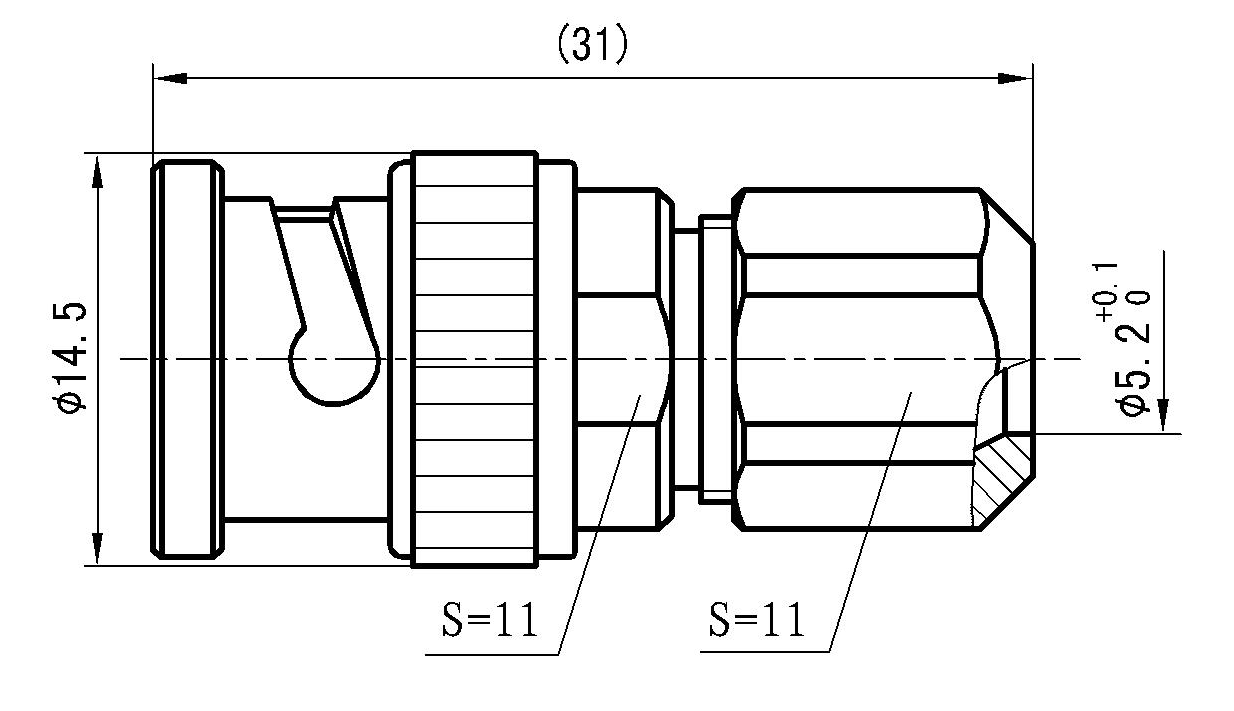

Product appearance

Male Straight RF BNC Connector Mates With RG 142/U Coaxial Cable

Important technical parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and surface treatment

Center conductor

 Brass,gold plating Insulating medium PTFE

Outer conductor

 Brass,nickel plating / /

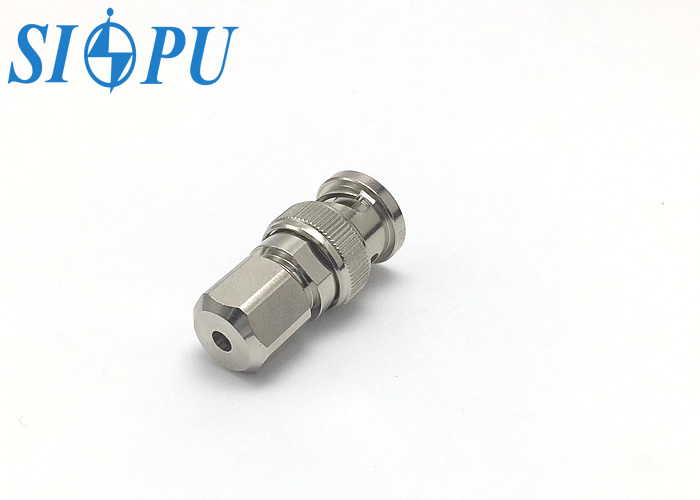

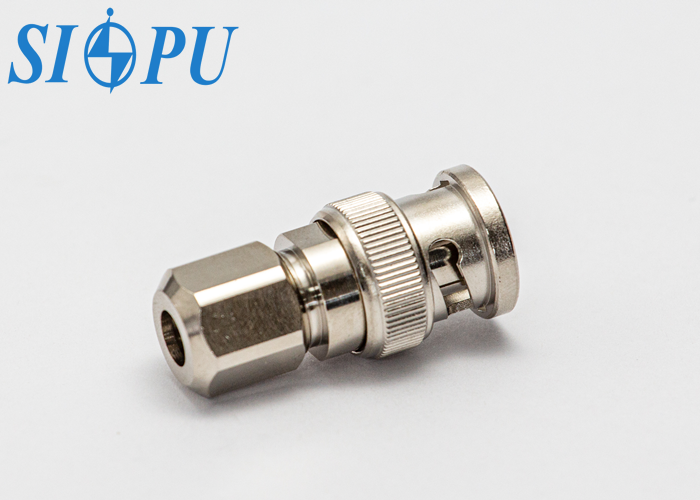

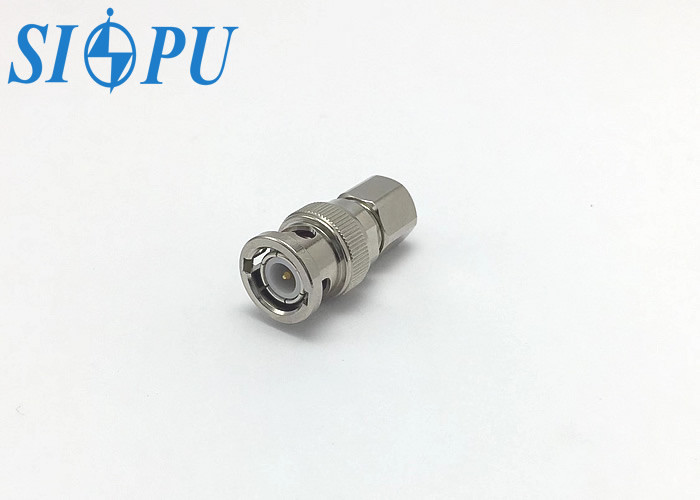

Picture display

Male Straight RF BNC Connector Mates With RG 142/U Coaxial CableMale Straight RF BNC Connector Mates With RG 142/U Coaxial CableMale Straight RF BNC Connector Mates With RG 142/U Coaxial CableMale Straight RF BNC Connector Mates With RG 142/U Coaxial Cable
