Thread Mount Female RF BNC Connectors for RG 316/U Cables

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : Gender

Model Number : BNC-KY3-1

Certification : ISO9001 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Product name : BNC female thread-mount RF connector

Gender : Female

Type : Straight

Material : Brass

Plating : Nickle

Durability : 500 times

Insulating medium : PTFE

High light : Screw-mounted connector, mated with RG 316/U RF coaxial cable

Contact Now

BNC Female Thread-Mount RF Connectors Mate With RG 316/U Cables

Product introduction

BNC series is a bayonet RF coaxial connector developed and produced in accordance with MIL-C-39012/16-24. It has the characteristics of fast connection and reliable contact, and can be interchangeable with similar products in the world. It is commonly used in the occasion of frequent connection and separation.
Application: Widely used in electronic instruments, transmission of analog or digital video signals, radio equipment.
Product features: Screw-mounted connector, mated with RG 316/U RF coaxial cable, good contact, good vibration resistance, fast connection.

Product specifications

Thread Mount Female RF BNC Connectors for RG 316/U Cables

Important technical parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,nickel plating / /

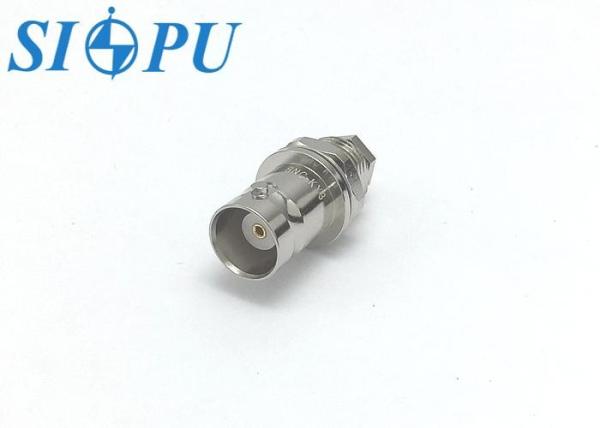

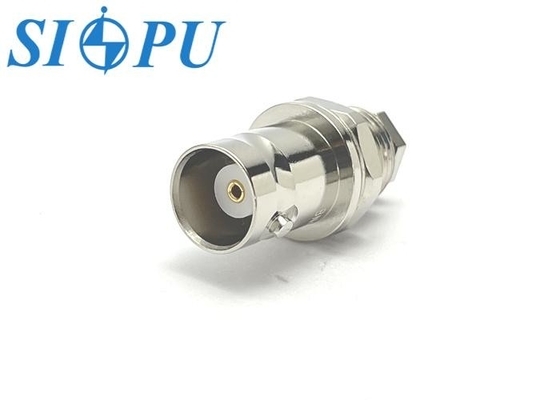

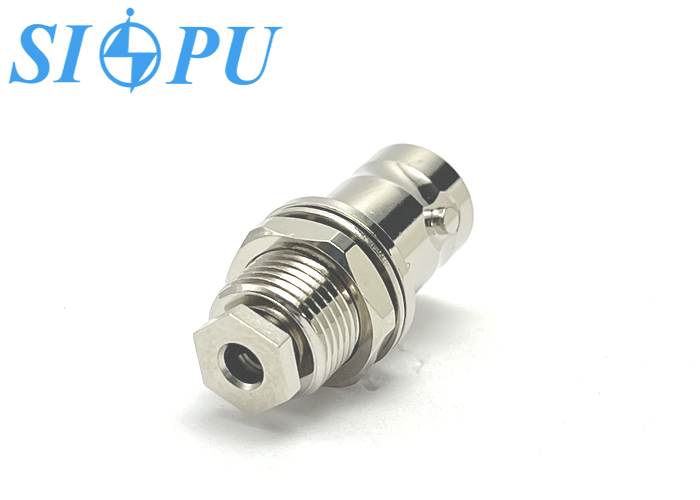

Picture display

Thread Mount Female RF BNC Connectors for RG 316/U CablesThread Mount Female RF BNC Connectors for RG 316/U Cables
