Flange Mount RF Coaxial Female BNC Connector for 2# Semi Rigid / Semi Flexible Cable

Name: Flange Mount RF Coaxial Female BNC Connector for 2 Semi Rigid Semi Flexible Cable
Brand: SIPU
Price: 1 USD

Quality Flange Mount RF Coaxial Female BNC Connector for 2# Semi Rigid / Semi Flexible Cable wholesale

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : Gender

Model Number : BNC-KFB2

Certification : ISO9001 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Product name : BNC female four flange mount RF coaxial connecto

Gender : Female

Type : Straight

Material : Brass

Plating : Nickle

Durability : 500 times

Insulating medium : PTFE

High light : Four-hole flange installation, mating 2# semi-rigid/semi-flexible cable

Contact Now

BNC Female Flange Mount RF Coaxial Connector Mating 2# Semi-Rigid/Semi-Flexible Cable

Product introduction

BNC is a bayonet-type RF coaxial connector, which can be quickly connected and separated, suitable for frequent connection and separation, and can be interchangeable with similar products in the world.
Applications: radio equipment, transmission of analog or digital video signals, electronic instruments, etc.
Product features: four-hole flange installation, mating 2# semi-rigid/semi-flexible cable, fast connection, reliable contact, good vibration resistance, easy welding, etc.

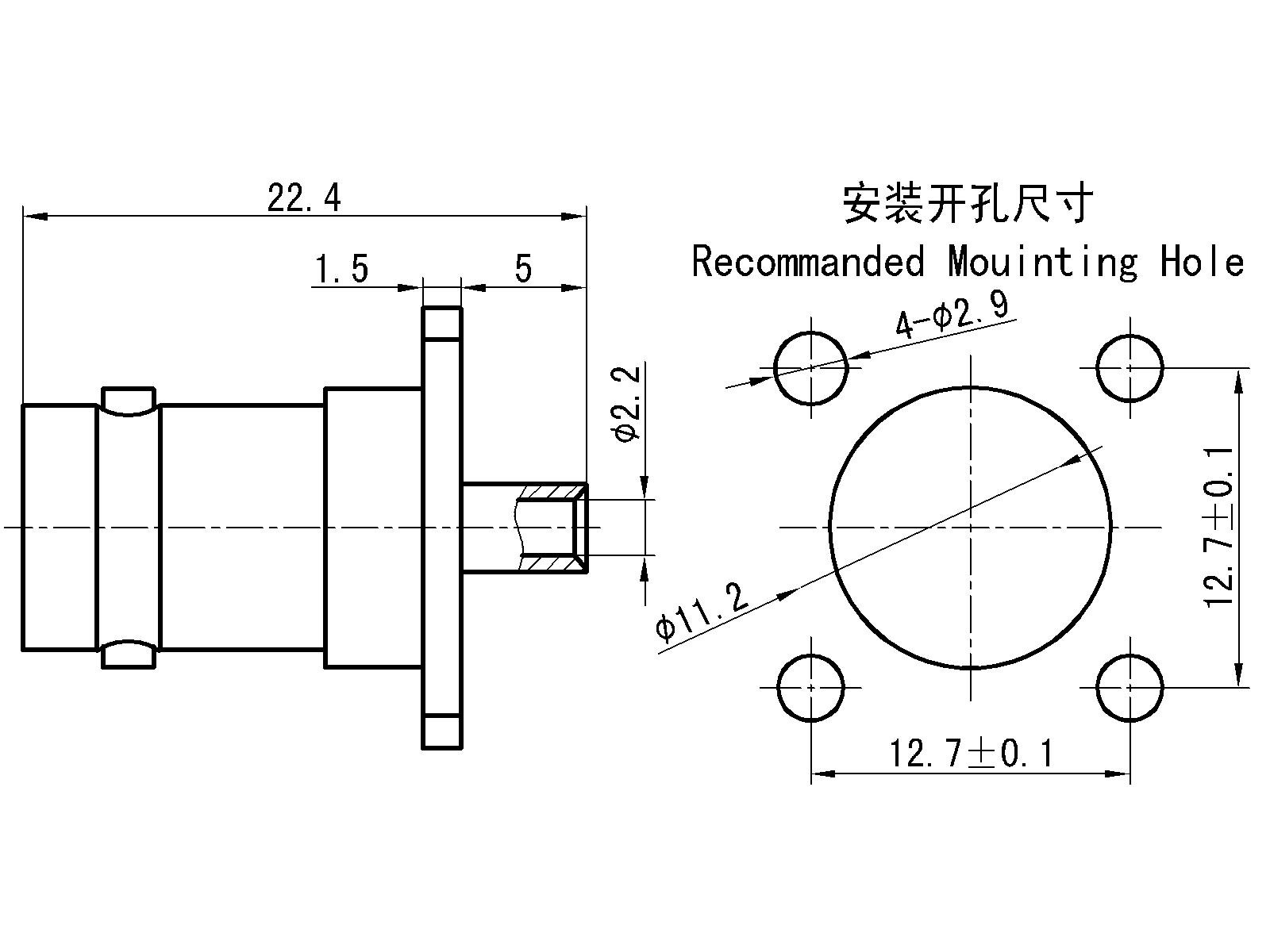

Product specifications

Important technical parameters

Electrical property			Temperature range	-55～+165℃
Characteristic impedance		50Ω	Frequency range	DC-4GHz
Dielectric withstanding voltage		1500V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤2.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤0.2mΩ	Durability	500times

Materials and surface treatment

Center conductor

Bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,nickel plating

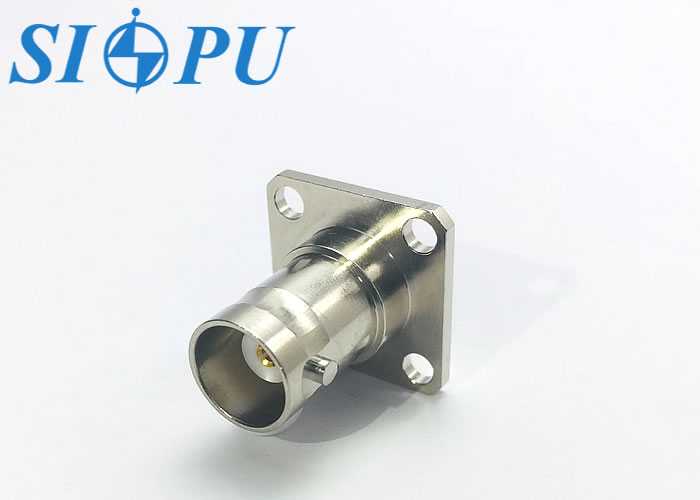

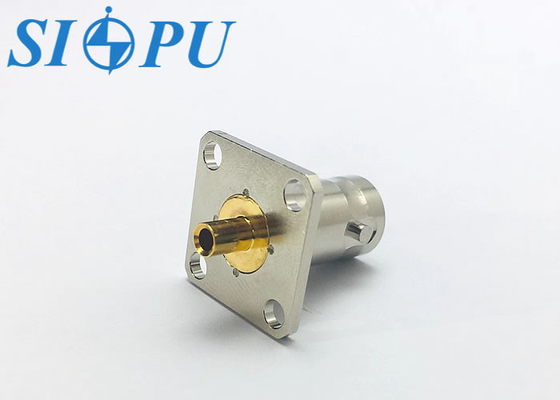

Picture display

Flange Mount RF Coaxial Female BNC Connector for 2# Semi Rigid / Semi Flexible Cable
